Wastewater/Activity/PacpInspection/1.0Jan 3, 2017, 12:03 PM
18 0649_18 0648 _01032017_041124.mp4
- Date
- 01/03/2017
- W/O
- 613547
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00692
- PipeID
- P14499
- Time
- 4:03 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4061
- Sewer Name
- 18 NORTH PLANT OUTFALL RELIEF TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_613547_TV18085_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 18 0649
- Downstream MH
- 18 0648
- Dir. of Survey
- Downstream
- Length Surveyed
- 93.7 ft.
- Total Length
- 93.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2C11
- O&M Rating
- 37
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 37
Observation photos (1)

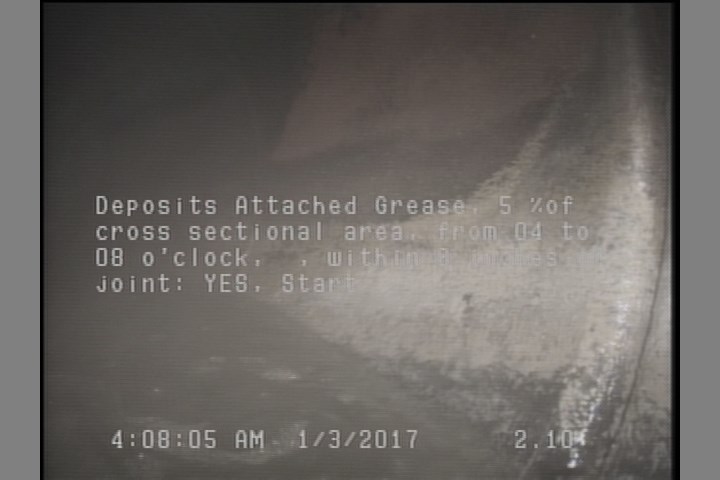

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 18 0649 |
| 91.5 | VC | — |
| 0 | MWL | — |
| 93.7 | AMH | 18 0648 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 91.5 | DAGS | — |
| 0 | MWM | — |
| 2.1 | DAGS | — |
Properties (4)
- additional_info
- SC318602
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-03T04:03:27-08:00
