Wastewater/Activity/PacpInspection/1.0Jan 12, 2017, 09:43 AM
22 0470_22 0469 _01122017_014411.mp4
- Date
- 01/12/2017
- W/O
- 613449
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00816
- PipeID
- P16808
- Time
- 1:43 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4208
- Sewer Name
- 22 LARK ELLEN TRUNK, SECTS 4,5,&6
- City
- AZUSA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_613449_TV22048_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0470
- Downstream MH
- 22 0469
- Dir. of Survey
- Downstream
- Length Surveyed
- 275 ft.
- Total Length
- 275 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 145
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 108
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 253
Observation photos (4)

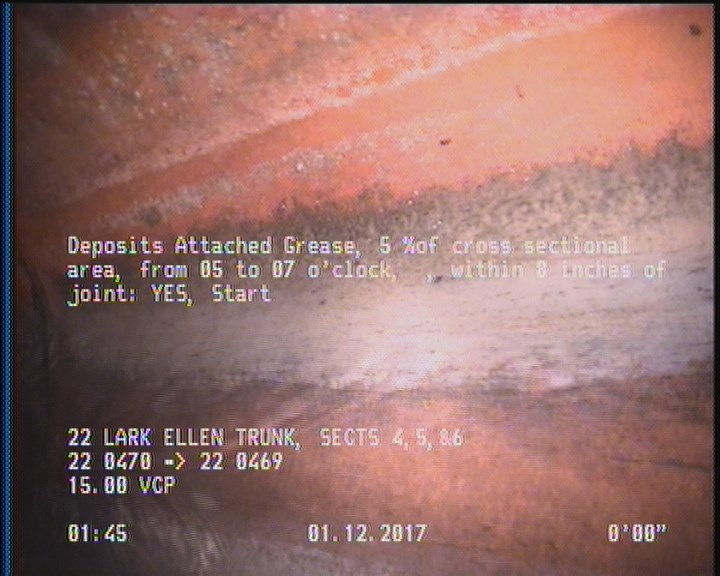

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
126.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

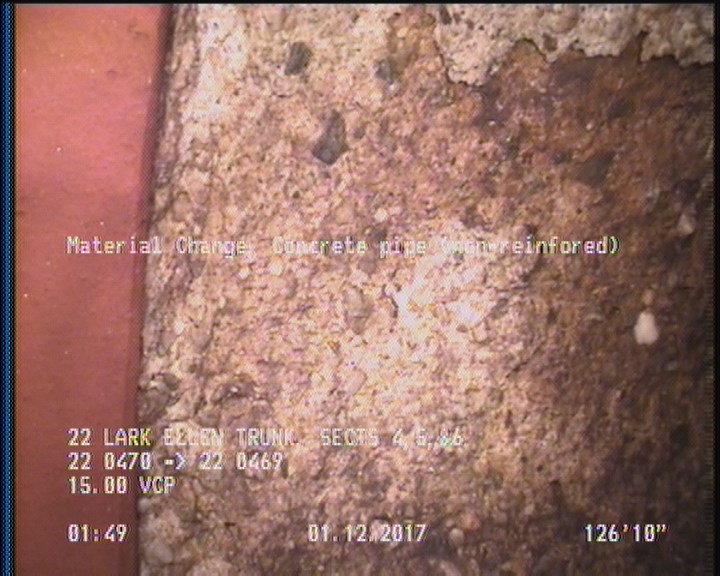

126.8 ft. - Material Change, Concrete pipe (non-reinfored)

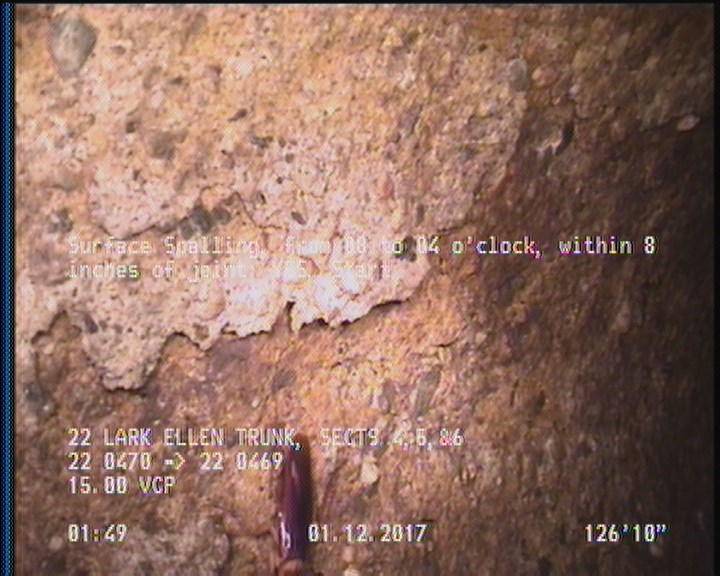

126.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 275 | AMH | 22 0469 |
| 126.8 | SAP | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 126.8 | MMC | — |
| 273.7 | SSS | — |
| 0 | AMH | 22 0470 |
| 234.6 | TFA | — |
| 273.7 | SAP | — |
| 126.8 | SSS | — |
| 273.7 | DAGS | — |
| 0 | MWL | — |
| 166.5 | TFA | — |
Properties (4)
- additional_info
- SC306710
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-12T01:43:47-08:00
