Wastewater/Activity/PacpInspection/1.0Dec 30, 2016, 09:13 AM
05 1019_05 1018 _12302016_012448.mp4
- Date
- 12/30/2016
- W/O
- 613357
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00421
- PipeID
- P06253
- Time
- 1:13 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3953
- Sewer Name
- 05 AVIATION BOULEVARD TRUNK
- City
- EL SEGUNDO, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_613357_TV05010_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 1019
- Downstream MH
- 05 1018
- Dir. of Survey
- Downstream
- Length Surveyed
- 365.7 ft.
- Total Length
- 365.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 146
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 146
Observation photos (2)

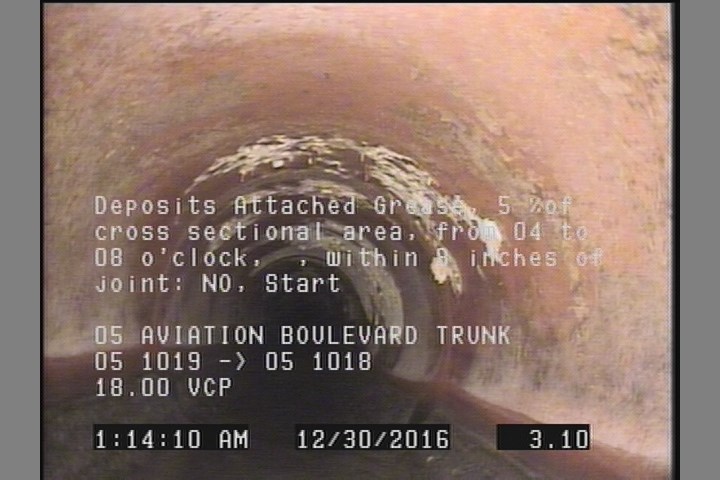

3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

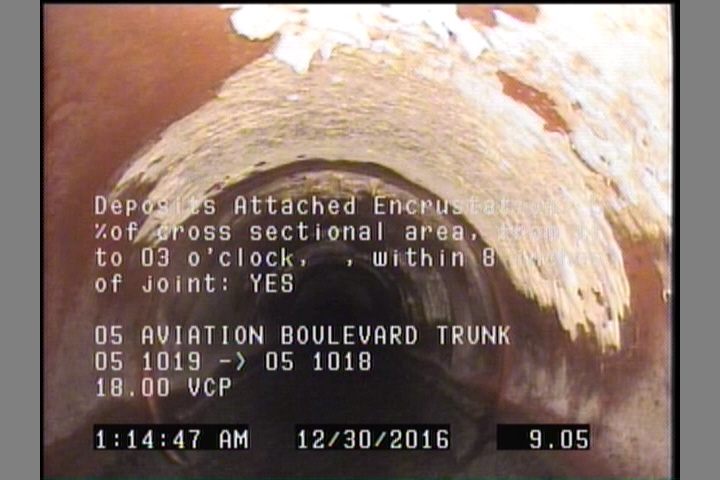

9.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 11 to 03 o'clock, , within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 1019 |
| 0 | MWL | — |
| 0 | MWM | — |
| 9.1 | DAE | — |
| 362.7 | DAGS | — |
| 365.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 365.7 | AMH | 05 1018 |
| 3.1 | DAGS | — |
Properties (5)
- additional_info
- SC306466
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-30T01:13:00-08:00
- sewer_category
- Gravity
