Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2017, 10:40 AM

  • 02 1717_02 1716_01042017_024029.mp4

Date
01/04/2017
W/O
613349
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00289
PipeID
P18881
Time
2:40 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4049
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
MONTEREY PARK
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
06
Purpose
Routine Assessment
Project
WO_613349_TV02103_JAN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1717
Downstream MH
02 1716
Dir. of Survey
Downstream
Length Surveyed
210.1 ft.
Total Length
210.1 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
10
O&M Index
2
O&M Quick
2G00
O&M Rating
82
Overall Index
2
Overall Quick
—
Overall Rating
92
Pipe schematic from manhole 02 1717 to 02 1716
MH: 02 1717MH: 02 1716downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 17170 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start14.8 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"41.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start44.3 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES44.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish96.1 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"208 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish210.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK210.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE210.1 ft. AMH - Downstream Manhole, Survey Ends - 02 1716

Observation photos (4)

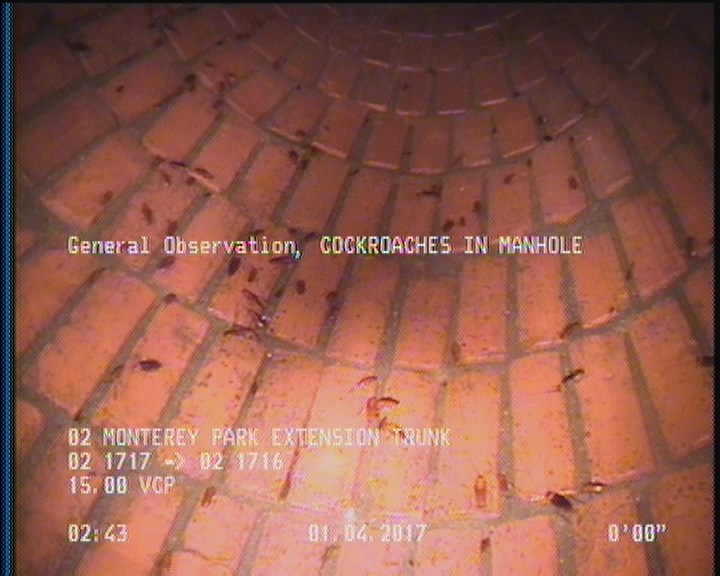

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

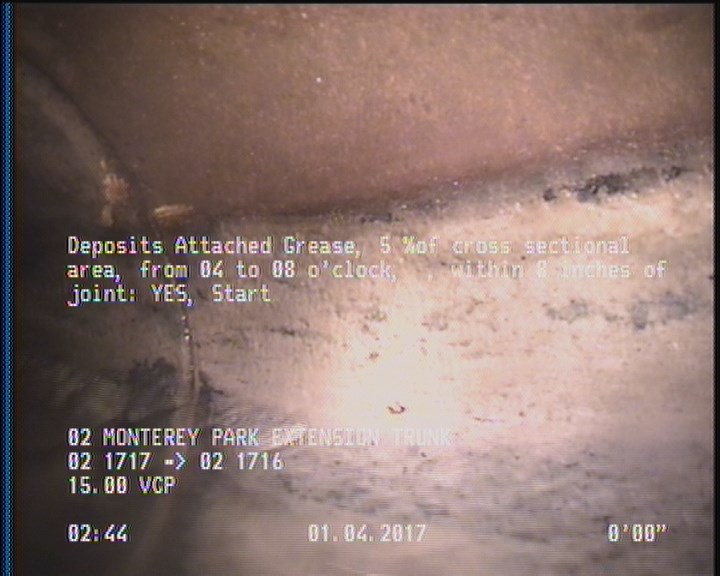

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

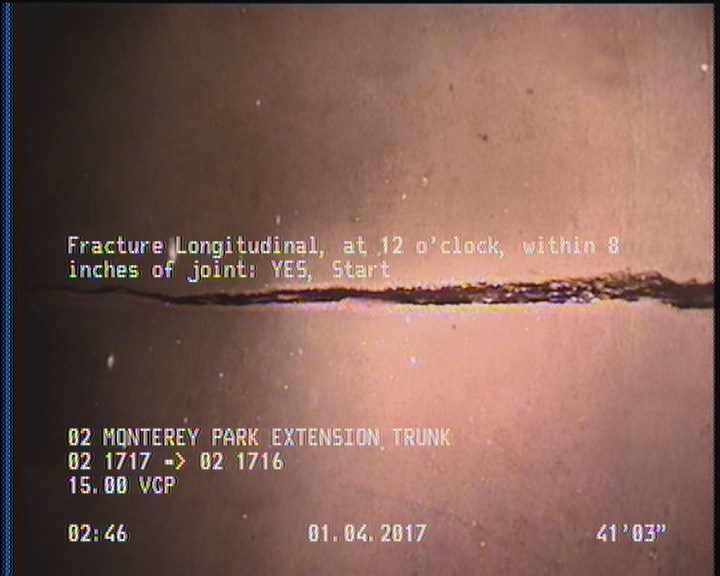

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    41.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    44.3 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P18881Work order 613349

Observations (14)

DistanceCodeObservation
2DAGS—
41.2FL—
96.1TFA—
44.3FM—
44.3FL—
0MWM—
208DAGS—
210.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
14.8TFA—
0AMH02 1717
210.1MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
0MWL—
210.1AMH02 1716

Properties (5)

additional_info
SC306447
custom_field_two
2
customer
LACSD
datetime
2017-01-04T02:40:08-08:00
sewer_category
Gravity
