Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2017, 08:52 AM

  • 02 1709_02 1708_01052017_005256.mp4

Date
01/05/2017
W/O
613349
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00289
PipeID
P18872
Time
12:52 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4050
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
MONTEREY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
06
Purpose
Routine Assessment
Project
WO_613349_TV02103_JAN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1709
Downstream MH
02 1708
Dir. of Survey
Downstream
Length Surveyed
161.1 ft.
Total Length
161.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2E00
O&M Rating
62
Overall Index
2
Overall Quick
—
Overall Rating
62
Pipe schematic from manhole 02 1709 to 02 1708
MH: 02 1709MH: 02 1708downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 02 17092 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start55 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"106.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"117.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"159.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish161.1 ft. AMH - Downstream Manhole, Survey Ends - 02 1708161.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK161.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

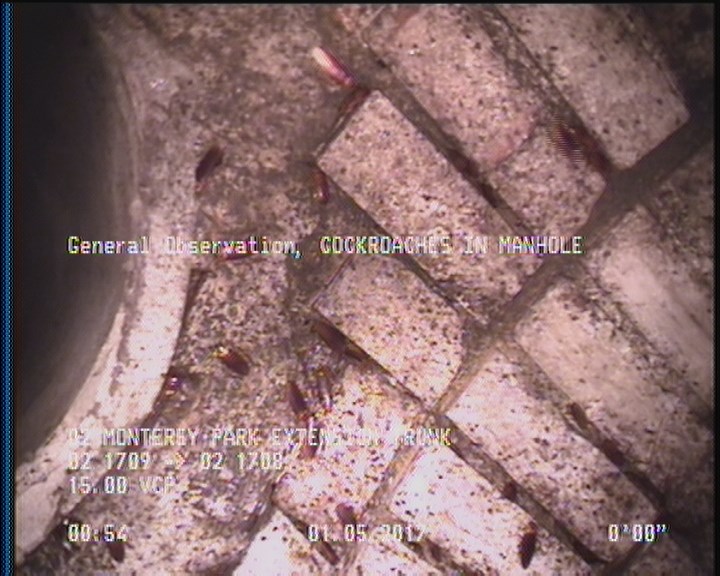

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

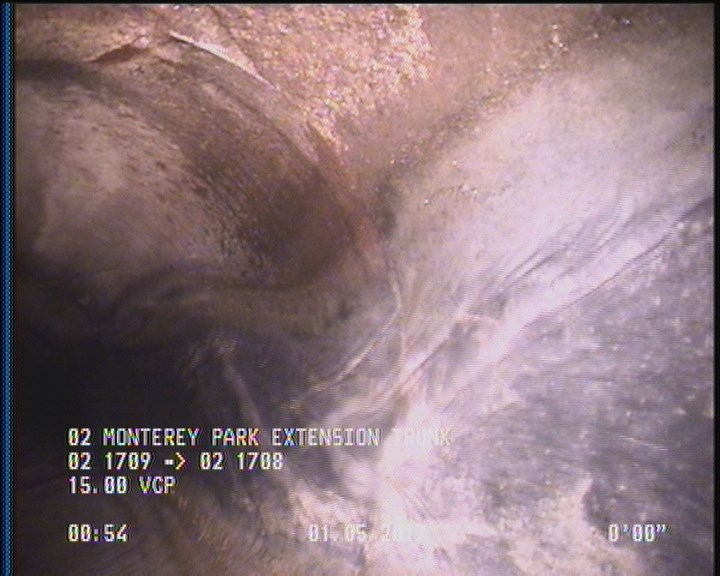

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

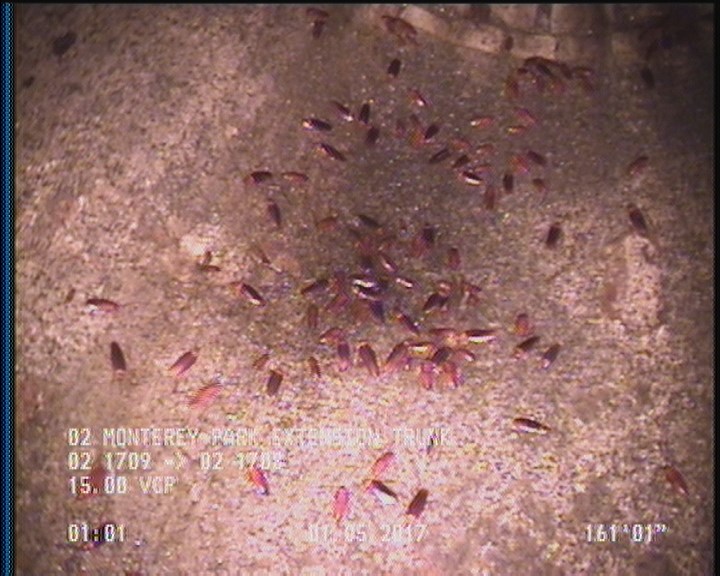

  • General Observation - COCKROACHES IN MANHOLE

    161.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18872Work order 613349

Observations (12)

DistanceCodeObservation
2DAGS—
0MWM—
55TFA—
0MWL—
159.4DAGS—
161.1AMH02 1708
0MGOCOCKROACHES IN MANHOLE
161.1MGOACTIVE CONNECTION AT MH 3 O'CLOCK
117.6TFA—
161.1MGOCOCKROACHES IN MANHOLE
0AMH02 1709
106.7TFC—

Properties (5)

additional_info
SC306448
custom_field_two
4
customer
LACSD
datetime
2017-01-05T00:52:40-08:00
sewer_category
Gravity
