Wastewater/Activity/PacpInspection/1.0Dec 28, 2016, 07:53 AM
03 0397_03 0396 _12282016_000026.mp4
- Date
- 12/27/2016
- W/O
- 613343
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00371
- PipeID
- P04972
- Time
- 11:53 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3901
- Sewer Name
- 03 MARINA TRUNK, SECTION 2
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_613343_TV03019_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 03 0397
- Downstream MH
- 03 0396
- Dir. of Survey
- Downstream
- Length Surveyed
- 94 ft.
- Total Length
- 94 ft.
- Structural Index
- 1
- Structural Quick
- 1200
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 36
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 38
Observation photos (3)

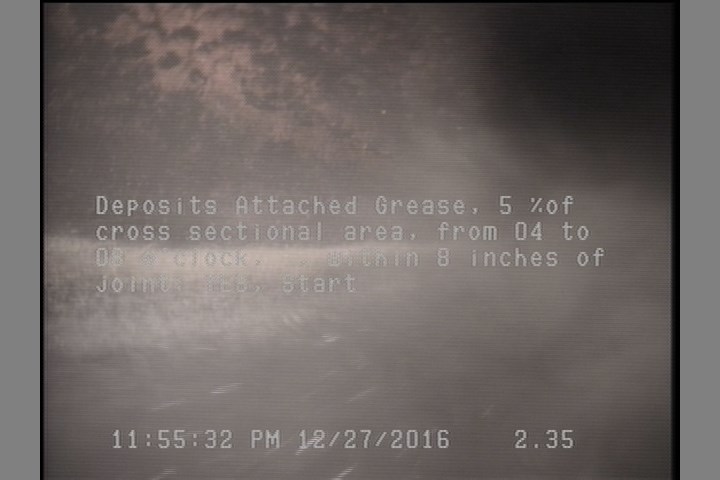

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

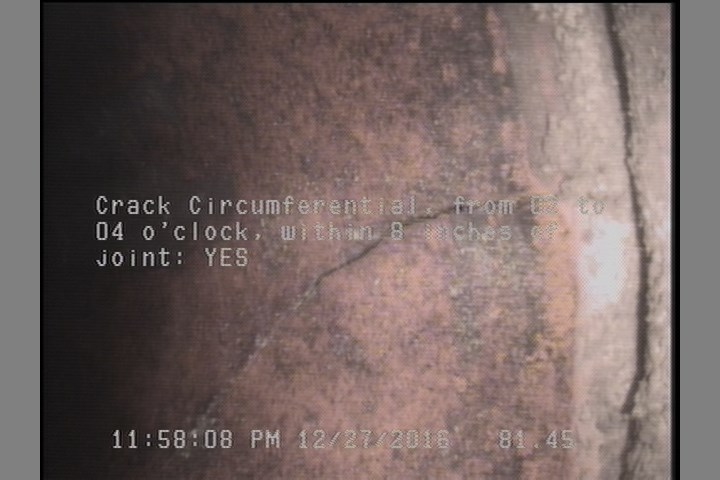

81.5 ft. - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

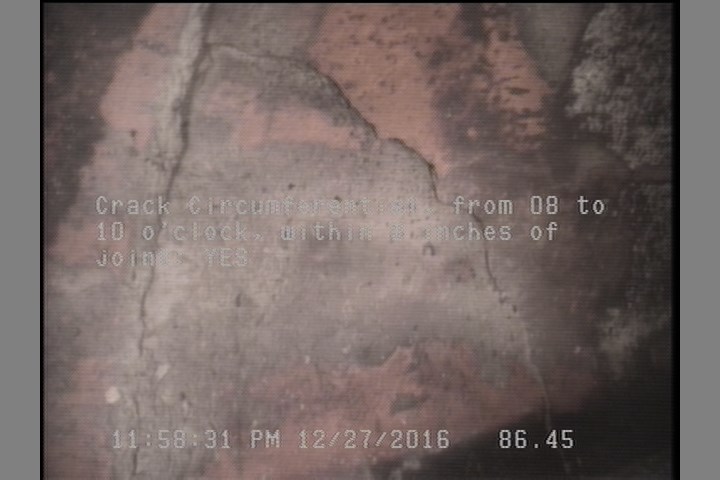

86.5 ft. - Crack Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 94 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 81.5 | CC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 94 | MGO | CONNECTION AT MH 9 O'CLOCK MADE |
| 2.4 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK MADE |
| 86.5 | CC | — |
| 0 | MWM | — |
| 94 | AMH | 03 0396 |
| 90.8 | DAGS | — |
| 0 | AMH | 03 0397 |
Properties (5)
- additional_info
- SC305242
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-27T23:53:52-08:00
- sewer_category
- Gravity
