Wastewater/Activity/PacpInspection/1.0Dec 28, 2016, 10:48 AM
03 0586_03 0393 _12282016_025745.mp4
- Date
- 12/28/2016
- W/O
- 613343
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00371
- PipeID
- P04967
- Time
- 2:48 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3901
- Sewer Name
- 03 MARINA TRUNK, SECTION 2
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_613343_TV03019_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 03 0393
- Downstream MH
- 03 0586
- Dir. of Survey
- Upstream
- Length Surveyed
- 104.5 ft.
- Total Length
- 104.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 40
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 40
Observation photos (1)

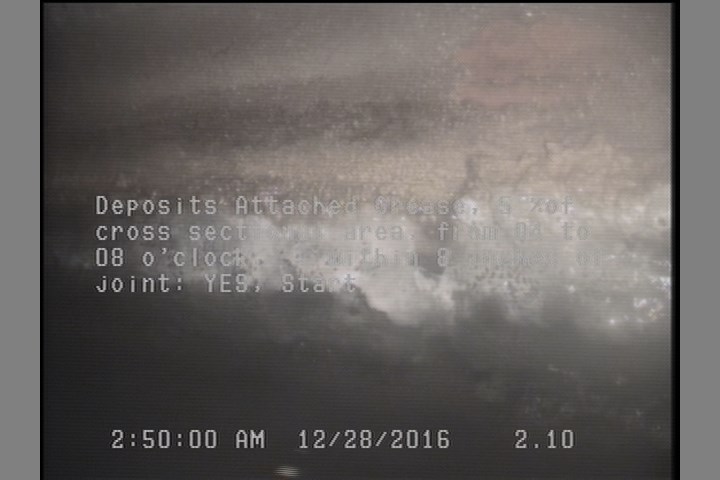

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 104.5 | AMH | 03 0586 |
| 84.2 | TBA | — |
| 100.6 | DAGS | — |
| 0 | MWM | — |
| 100.6 | MGO | MAGNEZIUM H.O. FINISH |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 0 | AMH | 03 0393 |
| 2.1 | DAGS | — |
Properties (5)
- additional_info
- SC305242
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-28T02:48:07-08:00
- sewer_category
- Gravity
