Wastewater/Activity/PacpInspection/1.0Oct 19, 2016, 09:43 AM
16 0196_16 0195_20161019_035508.mp4
- Date
- 10/19/2016
- W/O
- 591684
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00647
- PipeID
- P13241
- Time
- 2:43 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3857
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 4
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_591684_TV16012_SEP2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 16 0196
- Downstream MH
- 16 0195
- Dir. of Survey
- Downstream
- Length Surveyed
- 204.9 ft.
- Total Length
- 204.9 ft.
- Structural Index
- 3
- Structural Quick
- 3G00
- Structural Rating
- 120
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 120
Observation photos (2)

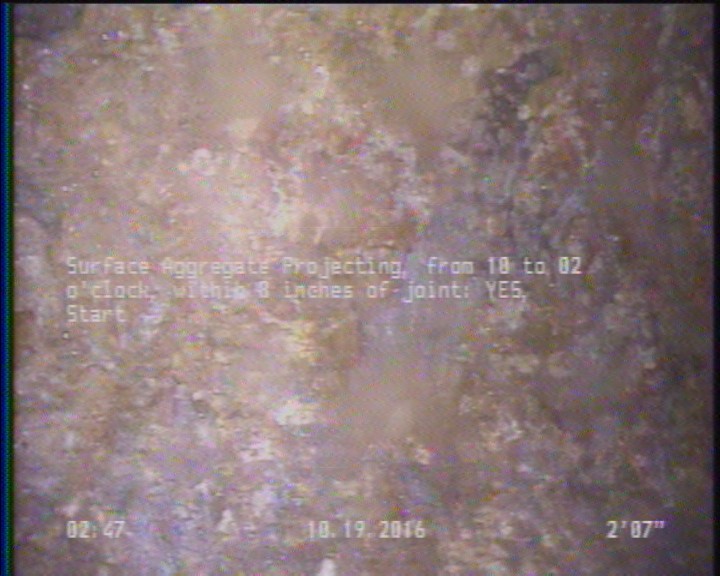

2.6 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

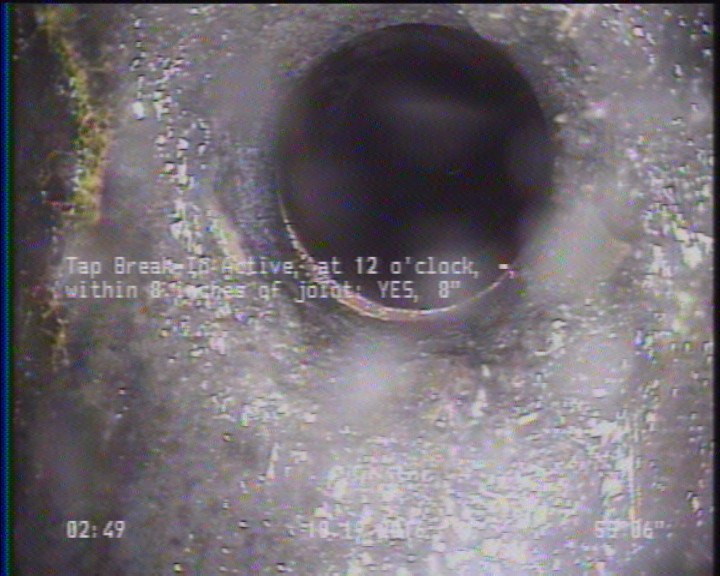

55.5 ft. - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 55.5 | TBA | — |
| 2.6 | SAP | — |
| 202.1 | MGO | Magnesium hydroxide coating finish |
| 0 | MWM | — |
| 0 | AMH | 16 0196 |
| 0 | MWL | — |
| 172.6 | TFA | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2.6 | MGO | Magnesium hydroxide coating start |
| 202.1 | SAP | — |
| 204.9 | AMH | 16 0195 |
Properties (5)
- additional_info
- SC301936
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-19T02:43:40-07:00
- sewer_category
- Gravity
