Wastewater/Activity/PacpInspection/1.0Jan 11, 2017, 08:17 AM
02 0431_02 0430 _01112017_001800.mp4
- Date
- 01/11/2017
- W/O
- 613651
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00312
- PipeID
- P02754
- Time
- 12:17 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4206
- Sewer Name
- 02 70TH WAY EXTENSION TRUNK
- City
- PARAMOUNT
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_613654_TV02338_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0430
- Downstream MH
- 02 0431
- Dir. of Survey
- Upstream
- Length Surveyed
- 305.8 ft.
- Total Length
- 305.8 ft.
- Structural Index
- 3
- Structural Quick
- 4338
- Structural Rating
- 40
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 122
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 162
Observation photos (4)

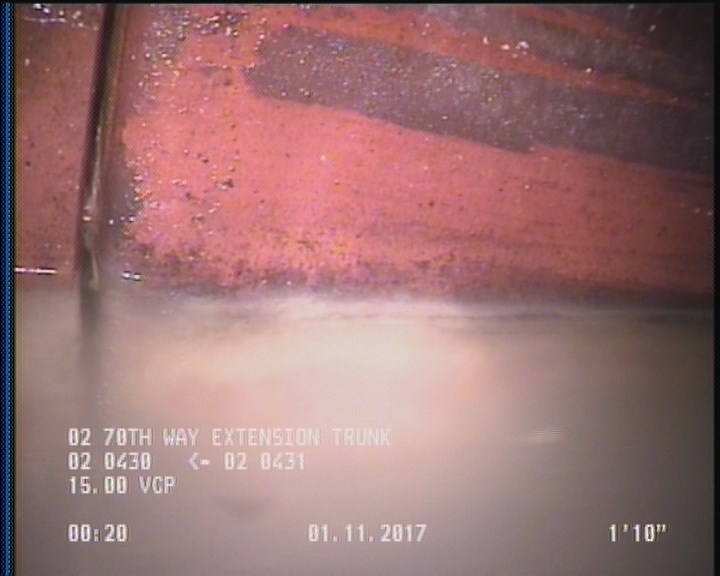

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

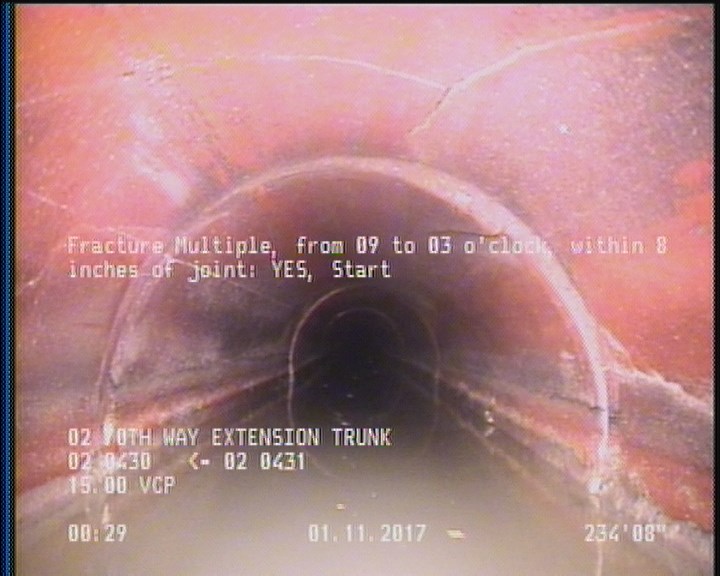

234.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
256.3 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start
264.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 305.8 | AMH | 02 0431 |
| 99.3 | TFC | — |
| 304.4 | CM | — |
| 249 | FM | — |
| 256.3 | CL | — |
| 45.5 | TFC | — |
| 2 | DAGS | — |
| 264.9 | CM | — |
| 305.8 | DAGS | — |
| 0 | AMH | 02 0430 |
| 194.8 | TFC | — |
| 249 | TFC | — |
| 0 | MWL | — |
| 297.9 | TFC | — |
| 0 | MWM | — |
| 147.2 | TFA | — |
| 234.7 | FM | — |
| 264.9 | CL | — |
Properties (5)
- additional_info
- SC306708
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-11T00:17:14-08:00
- sewer_category
- Gravity
