Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2017, 09:18 AM

  • 02 0425_02 0433 _01112017_011844.mp4

Date
01/11/2017
W/O
613654
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00312
PipeID
P02748
Time
1:18 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4206
Sewer Name
02 70TH WAY EXTENSION TRUNK
City
PARAMOUNT
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
35
Purpose
Routine Assessment
Project
WO_613654_TV02338_JAN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0433
Downstream MH
02 0425
Dir. of Survey
Upstream
Length Surveyed
337.9 ft.
Total Length
337.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
312M
O&M Rating
141
Overall Index
2
Overall Quick
—
Overall Rating
141
Pipe schematic from manhole 02 0433 to 02 0425
MH: 02 0433MH: 02 0425upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 04252.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish41 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"83.1 ft. DAE - Deposits Attached Encrustation, 15 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES121 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"168.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"235.4 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"242.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"243.1 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 12 o'clock, , within 8 inches of joint: YES266.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 12 o'clock, , within 8 inches of joint: YES337.9 ft. AMH - Downstream Manhole, Survey Begins - 02 0425337.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK337.9 ft. MWM - Water Mark, 40 %of cross sectional area337.9 ft. MWL - Water Level, 15 %of cross sectional area337.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

Observation photos (4)

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 12 o'clock, , within 8 inches of joint: YES

    71.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 12 o'clock, , within 8 inches of joint: YES

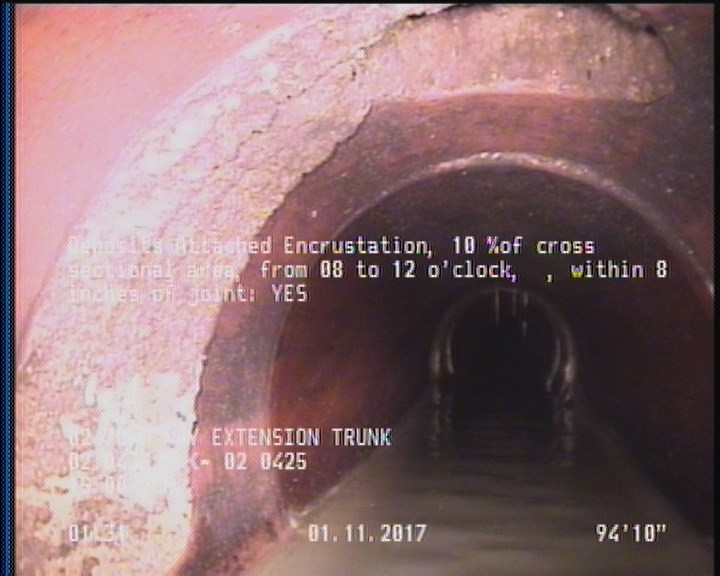

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 12 o'clock, , within 8 inches of joint: YES

    94.8 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 12 o'clock, , within 8 inches of joint: YES

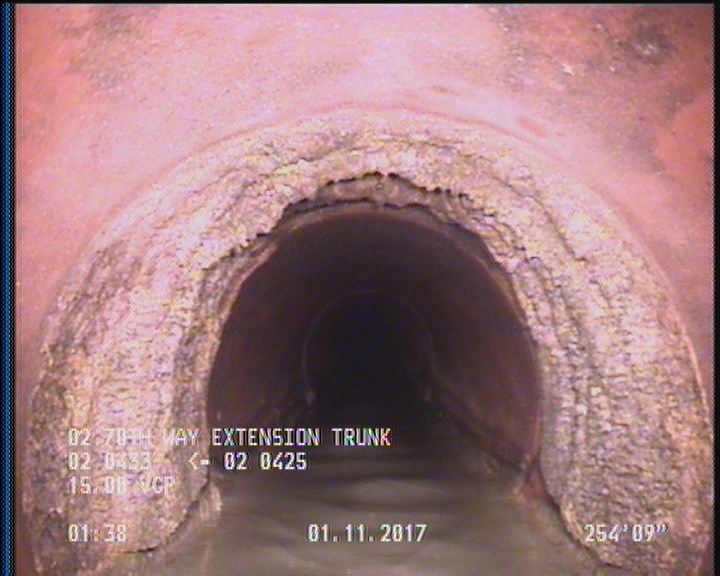

  • Deposits Attached Encrustation, 15 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    254.8 ft. - Deposits Attached Encrustation, 15 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

All inspections of P02748Work order 613654

Observations (15)

DistanceCodeObservation
102.5TBA—
0AMH02 0425
337.9AMH02 0425
71.8DAE—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
94.8DAE—
0MWM—
0MWL—
169.2TFA—
335.5DAGS—
216.9TFC—
0DAGS—
254.8DAE—
95TFC—
296.9TFA—

Properties (5)

additional_info
SC306708
custom_field_two
4
customer
LACSD
datetime
2017-01-11T01:18:14-08:00
sewer_category
Gravity
