Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2017, 07:56 AM

  • 02 0430_02 0429 _01102017_235705.mp4

Date
01/10/2017
W/O
613654
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00312
PipeID
P02753
Time
11:56 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4206
Sewer Name
02 70TH WAY EXTENSION TRUNK
City
PARAMOUNT
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
35
Purpose
Routine Assessment
Project
WO_613654_TV02338_JAN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0429
Downstream MH
02 0430
Dir. of Survey
Upstream
Length Surveyed
326.7 ft.
Total Length
326.7 ft.
Structural Index
3
Structural Quick
3C21
Structural Rating
65
O&M Index
2
O&M Quick
2L00
O&M Rating
130
Overall Index
2
Overall Quick
—
Overall Rating
195
Pipe schematic from manhole 02 0429 to 02 0430
MH: 02 0429MH: 02 0430upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 04301.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish1.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish6.5 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"56.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"98.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start102.3 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES105.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"132.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES154.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"156.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES207 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"253.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"305.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"324.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start326.7 ft. MWL - Water Level, 35 %of cross sectional area326.7 ft. AMH - Downstream Manhole, Survey Begins - 02 0429326.7 ft. MWL - Water Level, 40 %of cross sectional area

Observation photos (5)

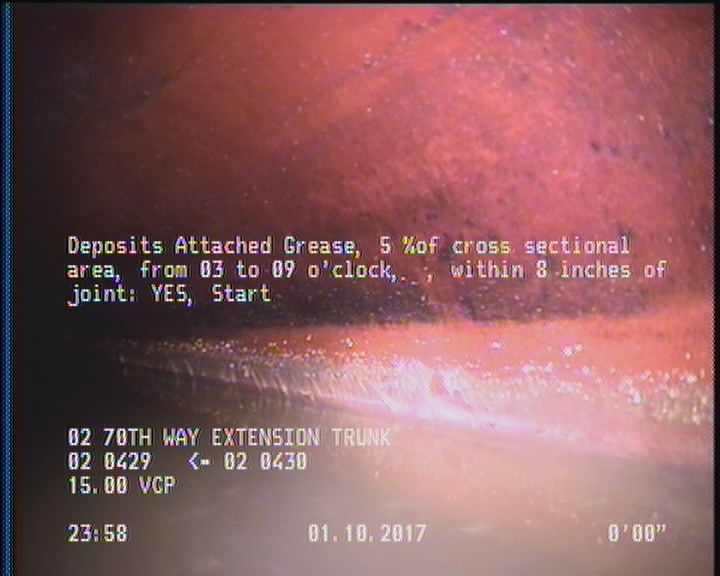

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

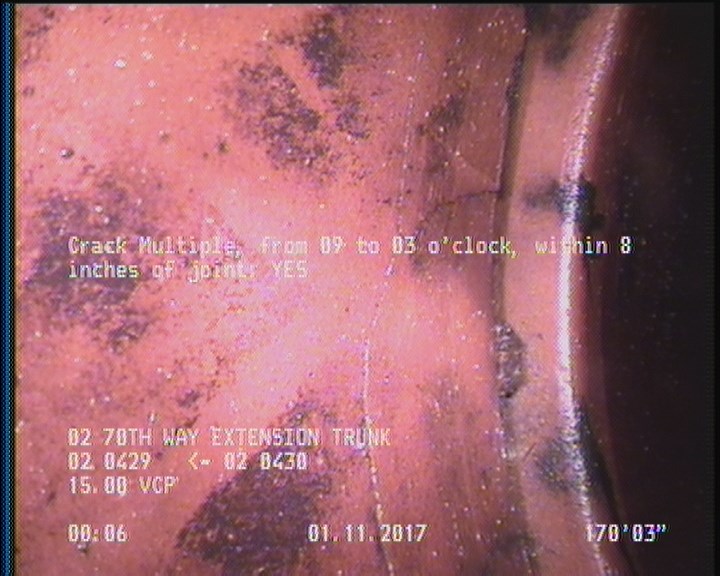

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    170.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

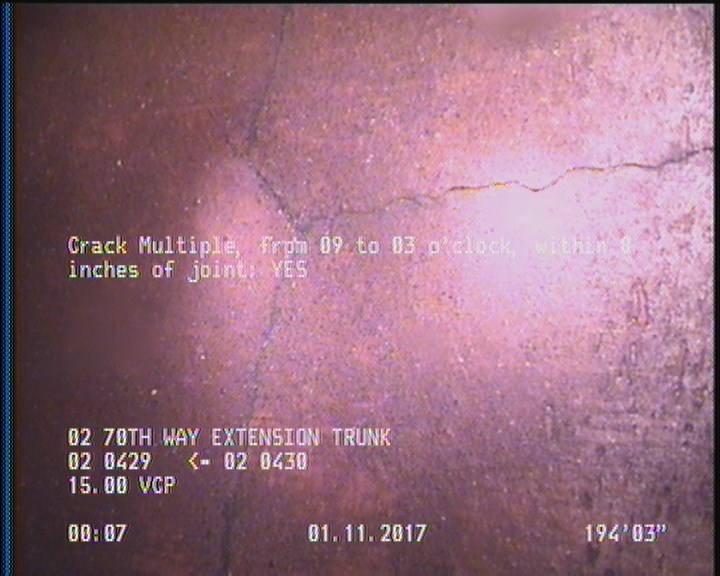

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    194.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

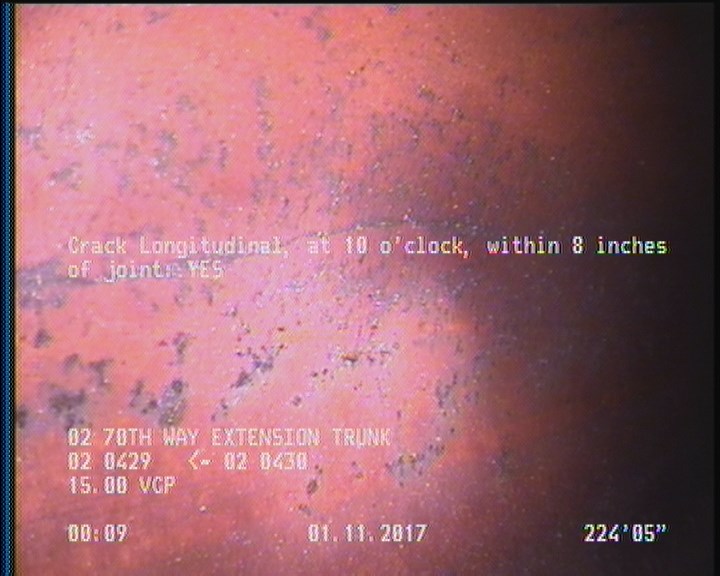

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    224.4 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

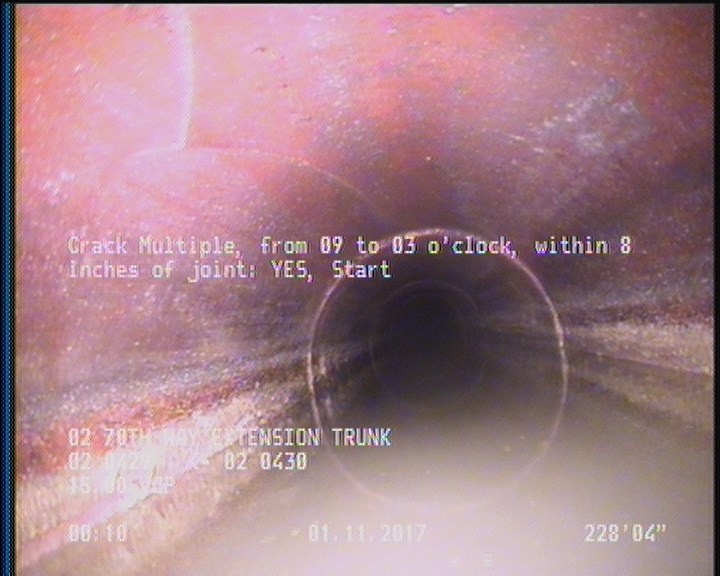

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    228.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P02753Work order 613654

Observations (18)

DistanceCodeObservation
2DAGS—
320.2TBA—
224.4CL—
72.8TFC—
119.7TFC—
228.3CM—
172.1TFA—
194.2CM—
221.5TFC—
270.4TFC—
21.2TFA—
324.9DAGS—
0MWL—
0AMH02 0429
324.9CM—
170.2CM—
0MWL—
326.7AMH02 0430

Properties (5)

additional_info
SC306708
custom_field_two
3
customer
LACSD
datetime
2017-01-10T23:56:32-08:00
sewer_category
Gravity
