Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 13, 2017, 12:41 PM

  • 01 0723_01 0722_01132017_045525.mpg

Date
01/13/2017
W/O
613613
Weather
Damp
Operator/Surveyor
R.VARGAS
Sewer ID
Z00195
PipeID
P01433
Time
4:41 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4078
Sewer Name
01 BULLIS ROAD RELIEF TRUNK, SECTION 1
City
LYNWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
WO_613653_TV01259_JAN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0723
Downstream MH
01 0722
Dir. of Survey
Downstream
Length Surveyed
332.7 ft.
Total Length
332.7 ft.
Structural Index
3
Structural Quick
3B00
Structural Rating
42
O&M Index
2
O&M Quick
2L12
O&M Rating
132
Overall Index
2
Overall Quick
—
Overall Rating
174
Pipe schematic from manhole 01 0723 to 01 0722
MH: 01 0723MH: 01 0722downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 07230 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. VC - Vermin Cockroach2.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2.6 ft. MGO - General Observation - MAGNESIUM H.O. START8.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start78.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish324.7 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH329.8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish332.7 ft. AMH - Downstream Manhole, Survey Ends - 01 0722332.7 ft. VC - Vermin Cockroach

Observation photos (2)

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

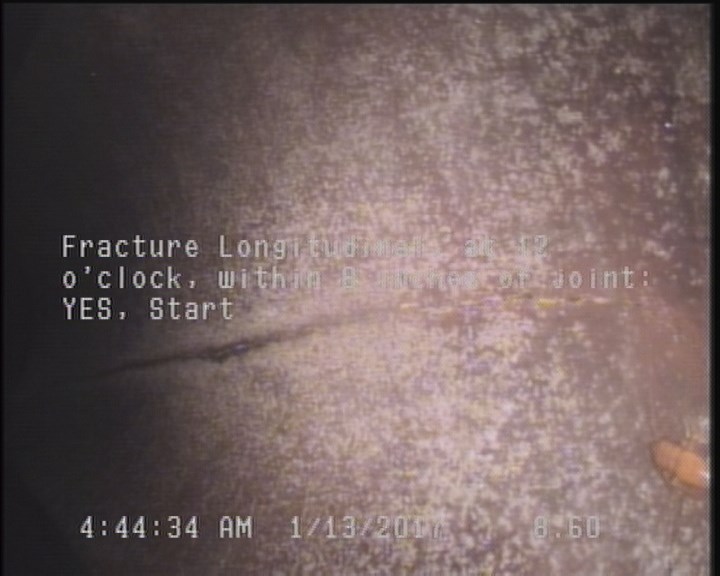

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    8.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P01433Work order 613613

Observations (12)

DistanceCodeObservation
324.7MGOMAGNEZIUM H.O. FINISH
332.7AMH01 0722
2.4DAGS—
0AMH01 0723
0MWL—
329.8DAGS—
8.6FL—
332.7VC—
78.2FL—
2.6MGOMAGNESIUM H.O. START
0MWM—
0VC—

Properties (5)

additional_info
SC318619
custom_field_two
3
customer
LACSD
datetime
2017-01-13T04:41:45-08:00
sewer_category
Gravity
