Wastewater/Activity/PacpInspection/1.0Jan 25, 2017, 10:51 AM
02 1843_02 1842_01252017_031552.mpg
- Date
- 01/25/2017
- W/O
- 613583
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00283
- PipeID
- P04188
- Time
- 2:51 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4092
- Sewer Name
- 02 MONTEBELLO INTERCEPTOR TRUNK, SECTS 1&2
- City
- COMMERCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_613583_TV02213_JAN2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 02 1843
- Downstream MH
- 02 1842
- Dir. of Survey
- Downstream
- Length Surveyed
- 510.3 ft.
- Total Length
- 510.3 ft.
- Structural Index
- 3
- Structural Quick
- 3S00
- Structural Rating
- 303
- O&M Index
- 2
- O&M Quick
- 2S14
- O&M Rating
- 206
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 509
Observation photos (3)

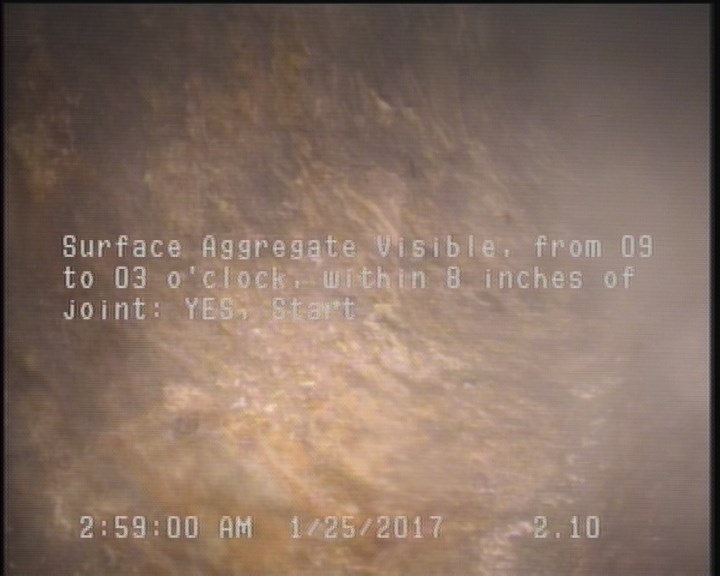

2.1 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

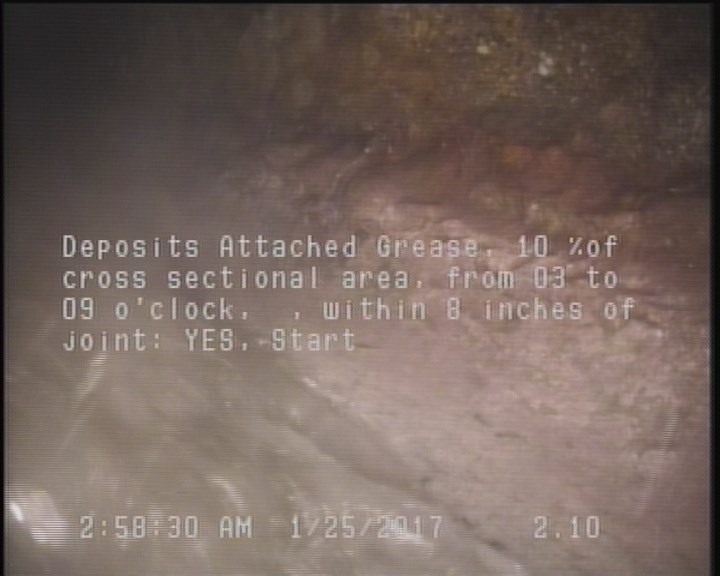

2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

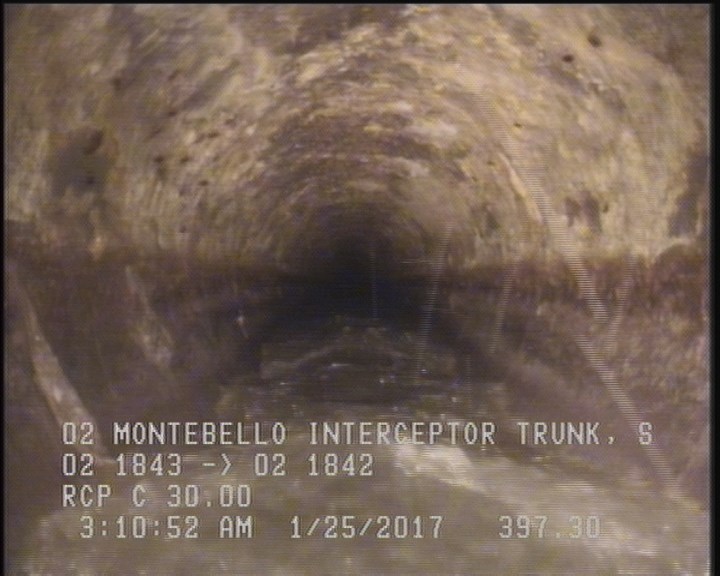

397.3 ft. - General Photograph
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 13.1 | LR | — |
| 2.1 | SAV | — |
| 0 | AMH | 02 1843 |
| 506.6 | SAV | — |
| 2.9 | MGO | MAGNESIUM H.O. START |
| 2.9 | TFA | — |
| 2.1 | DAGS | — |
| 506.6 | VC | — |
| 506.6 | DAGS | — |
| 506.6 | MGO | MAGNEZIUM H.O. FINISH |
| 2.9 | VC | — |
| 167.5 | LL | — |
| 397.3 | MGP | — |
| 510.3 | AMH | 02 1842 |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC318633
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-25T02:51:11-08:00
- sewer_category
- Gravity
