Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 14, 2016, 11:12 AM

  • 32 1143_32 1142 _12142016_031255.mp4

Date
12/14/2016
W/O
607627
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00842
PipeID
P19595
Time
3:12 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4035
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTION 5
City
CANYON COUNTRY
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
12
Purpose
Routine Assessment
Project
WO_607627_TV32024_DEC2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
32 1142
Downstream MH
32 1143
Dir. of Survey
Upstream
Length Surveyed
289.9 ft.
Total Length
289.9 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 32 1142 to 32 1143
MH: 32 1142MH: 32 1143upstream0 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. MWLS - Water Level, Sag in pipe, 40 %of cross sectional area, Finish0 ft. MSA - Survey Abandoned - REVERSAL COMPLETE5.3 ft. MWLS - Water Level, Sag in pipe, 40 %of cross sectional area, Start63 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"116.8 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"158.4 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"241.8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"287.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start289.9 ft. AMH - Downstream Manhole, Survey Begins - 32 1142289.9 ft. MWL - Water Level, 15 %of cross sectional area289.9 ft. MWM - Water Mark, 25 %of cross sectional area

Observation photos (2)

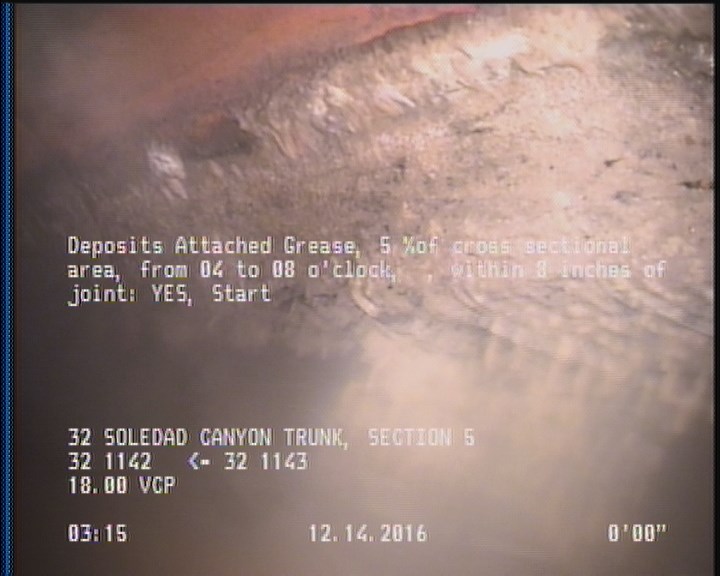

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

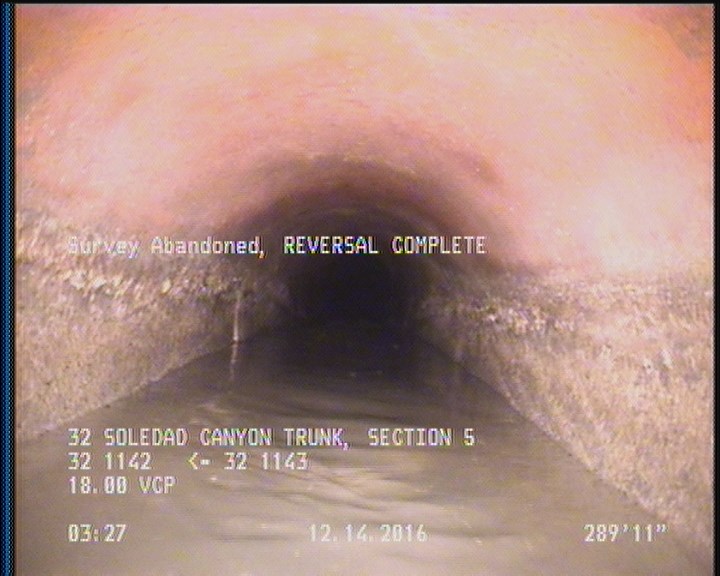

  • Survey Abandoned - REVERSAL COMPLETE

    289.9 ft. - Survey Abandoned - REVERSAL COMPLETE

All inspections of P19595Work order 607627

Observations (13)

DistanceCodeObservation
289.9DSZDEBRIS
226.9TFC—
289.9DAGS—
284.6MWLS—
131.5TFC—
0AMH32 1142
173.1TFA—
48.1TFC—
0MWL—
0MWM—
289.9MWLS—
2DAGS—
289.9MSAREVERSAL COMPLETE

Properties (5)

additional_info
SC306431
custom_field_two
4
customer
LACSD
datetime
2016-12-14T03:12:06-08:00
sewer_category
Gravity
