Wastewater/Activity/PacpInspection/1.0Dec 14, 2016, 08:10 AM
32 1147_32 1146 _12142016_001105.mp4
- Date
- 12/14/2016
- W/O
- 607627
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00842
- PipeID
- P19599
- Time
- 12:10 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4035
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTION 5
- City
- CANYON COUNTRY
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607627_TV32024_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1147
- Downstream MH
- 32 1146
- Dir. of Survey
- Downstream
- Length Surveyed
- 349.4 ft.
- Total Length
- 349.4 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 138
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 146
Observation photos (4)

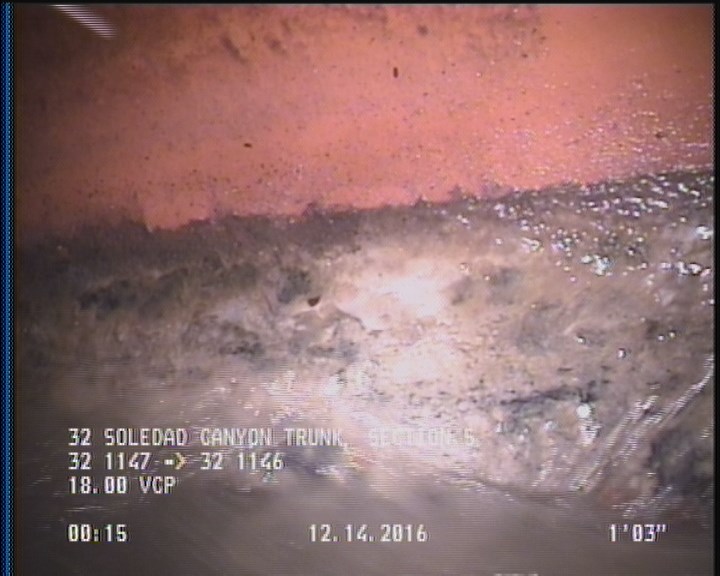

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

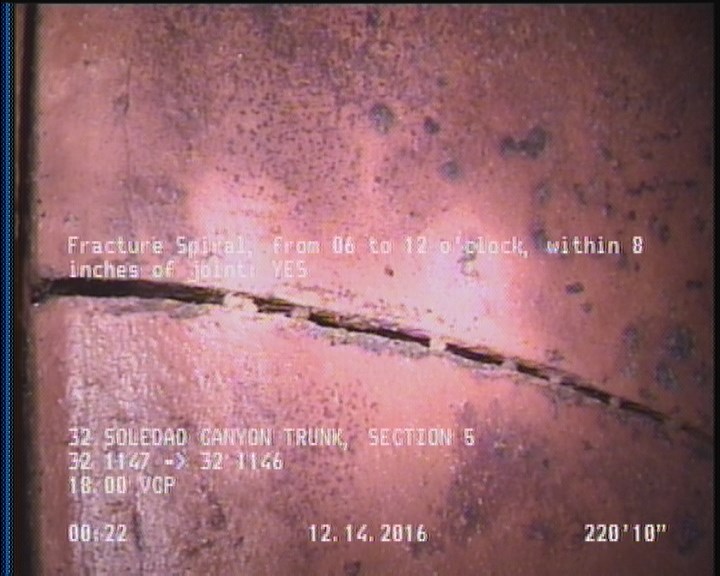

220.9 ft. - Fracture Spiral, from 06 to 12 o'clock, within 8 inches of joint: YES

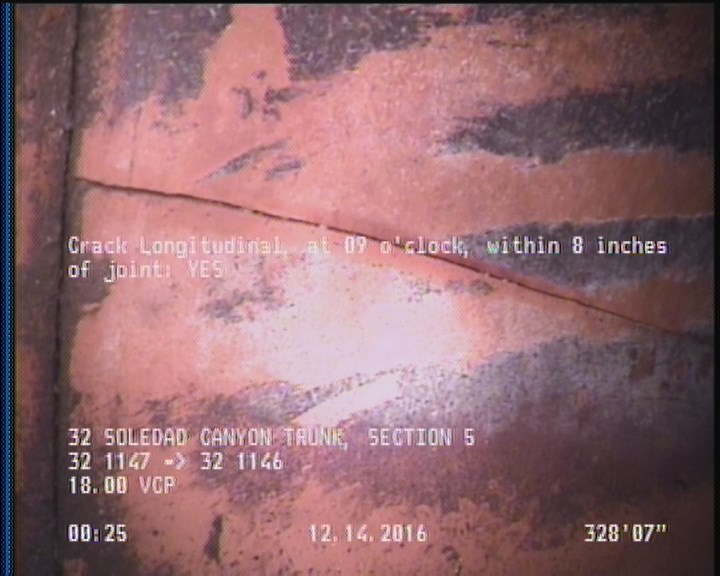

328.6 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

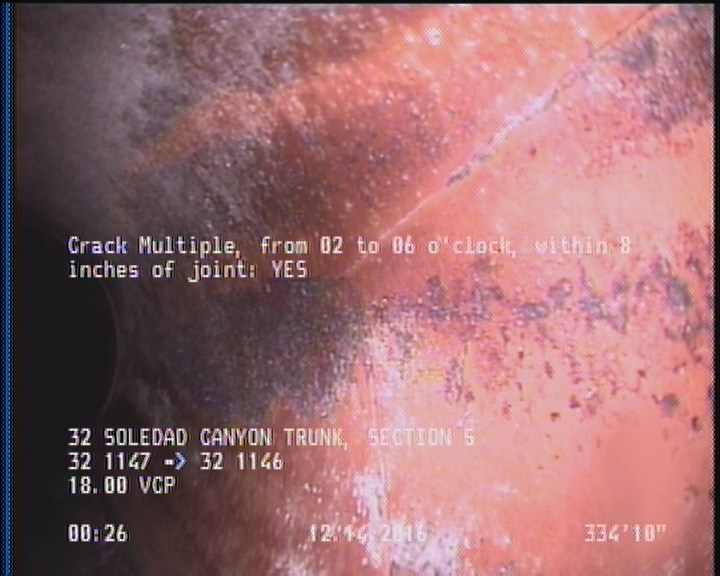

334.9 ft. - Crack Multiple, from 02 to 06 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 128.3 | TFC | — |
| 0 | AMH | 32 1147 |
| 44.9 | TFC | — |
| 0 | MWM | — |
| 349.4 | AMH | 32 1146 |
| 220.9 | FS | — |
| 334.9 | CM | — |
| 2 | DAGS | — |
| 328.6 | CL | — |
| 347.3 | DAGS | — |
| 0 | MWL | — |
| 307.4 | TFC | — |
| 349.4 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 218 | TFC | — |
Properties (5)
- additional_info
- SC306431
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-14T00:10:16-08:00
- sewer_category
- Gravity
