Wastewater/Activity/PacpInspection/1.0Dec 20, 2016, 10:37 AM
32 1152_32 1151 _12202016_023825.mp4
- Date
- 12/20/2016
- W/O
- 607627
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00842
- PipeID
- P19604
- Time
- 2:37 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4038
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTION 5
- City
- CANYON COUNTRY
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607627_TV32024_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 1152
- Downstream MH
- 32 1151
- Dir. of Survey
- Downstream
- Length Surveyed
- 338.5 ft.
- Total Length
- 338.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 134
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 137
Observation photos (2)

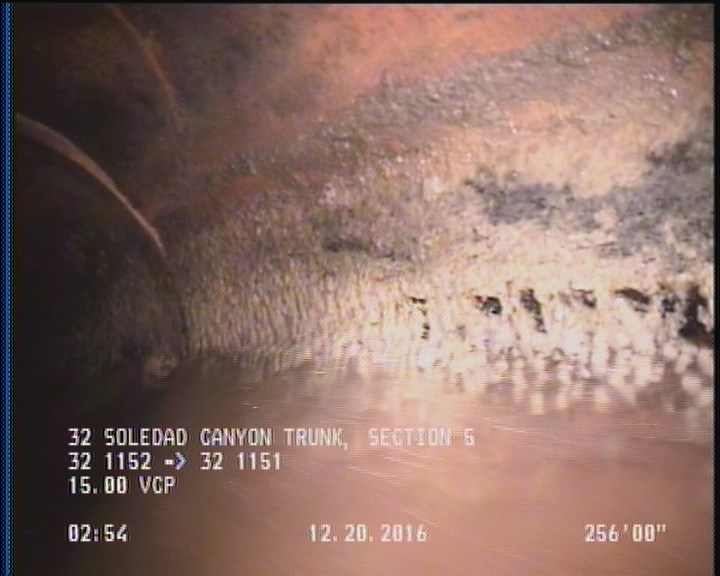

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

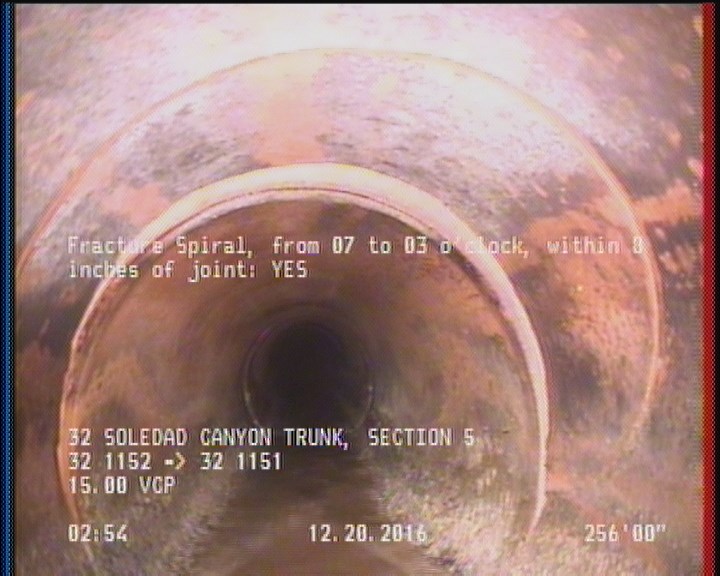

256 ft. - Fracture Spiral, from 07 to 03 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 338.5 | AMH | 32 1151 |
| 0 | MWM | — |
| 0 | AMH | 32 1152 |
| 282.2 | TFC | — |
| 336.1 | DAGS | — |
| 0 | MWL | — |
| 256 | FS | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC306435
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-20T02:37:50-08:00
- sewer_category
- Gravity
