  • 32 1146_32 1145 _12142016_003439.mp4

Date
12/14/2016
W/O
607627
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00842
PipeID
P19598
Time
12:34 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4035
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTION 5
City
CANYON COUNTRY
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
12
Purpose
Routine Assessment
Project
WO_607627_TV32024_DEC2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
32 1146
Downstream MH
32 1145
Dir. of Survey
Downstream
Length Surveyed
293.6 ft.
Total Length
293.6 ft.
Structural Index
3
Structural Quick
3321
Structural Rating
11
O&M Index
2
O&M Quick
2K00
O&M Rating
116
Overall Index
2
Overall Quick
—
Overall Rating
127
Pipe schematic from manhole 32 1146 to 32 1145
MH: 32 1146MH: 32 1145downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 11460 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start9.5 ft. CS - Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: YES15.6 ft. CM - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES21.2 ft. CM - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES71.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"154.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"250.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"278.2 ft. CM - Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES291.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish293.6 ft. AMH - Downstream Manhole, Survey Ends - 32 1145

Observation photos (5)

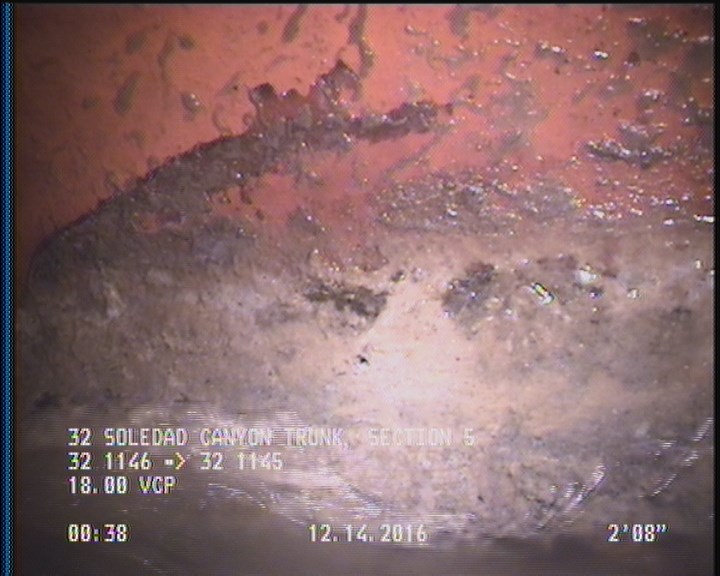

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

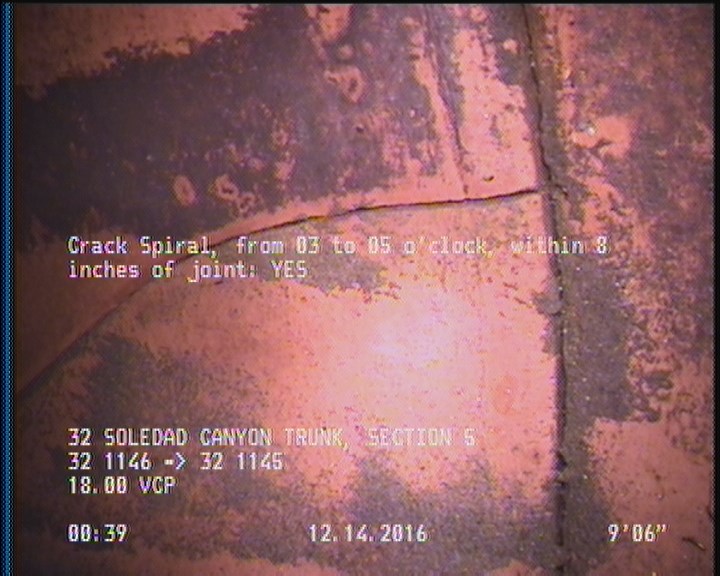

  • Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: YES

    9.5 ft. - Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: YES

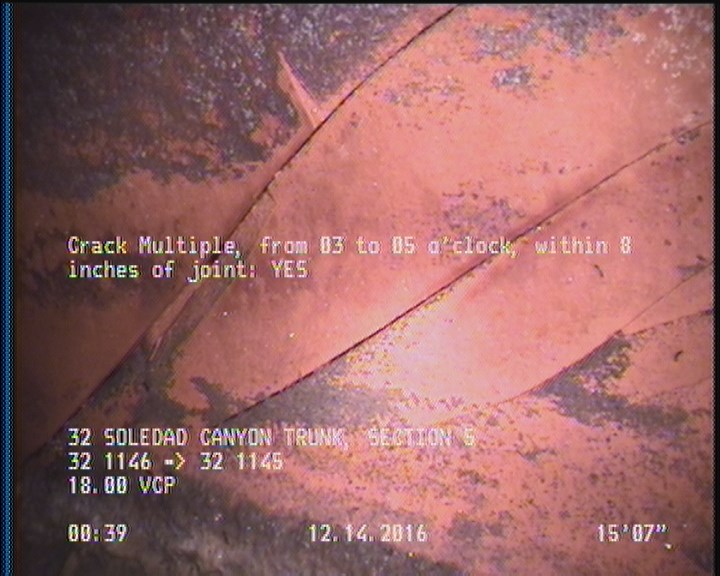

  • Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

    15.6 ft. - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

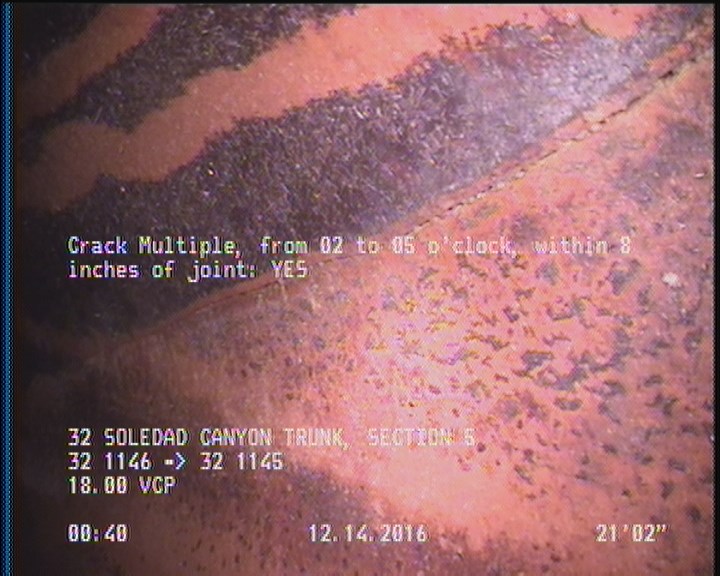

  • Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

    21.2 ft. - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

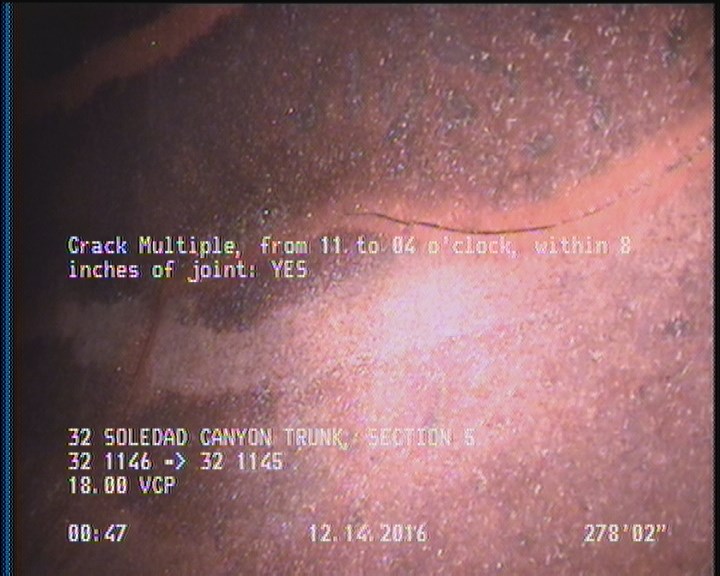

  • Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES

    278.2 ft. - Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES

All inspections of P19598Work order 607627

Observations (14)

DistanceCodeObservation
0MWM—
21.2CM—
0AMH32 1146
0MWL—
278.2CM—
154.6TFC—
293.6AMH32 1145
9.5CS—
291.8DAGS—
71.1TFC—
15.6CM—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2DAGS—
250.6TFC—

Properties (5)

additional_info
SC306431
custom_field_two
4
customer
LACSD
datetime
2016-12-14T00:34:03-08:00
sewer_category
Gravity
