Wastewater/Activity/PacpInspection/1.0Dec 12, 2016, 10:10 AM
32 1158_32 1157 _12122016_021309.mp4
- Date
- 12/12/2016
- W/O
- 607627
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00842
- PipeID
- P19610
- Time
- 2:10 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4034
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTION 5
- City
- CANYON COUNTRY
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607627_TV32024_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1158
- Downstream MH
- 32 1157
- Dir. of Survey
- Downstream
- Length Surveyed
- 241.5 ft.
- Total Length
- 241.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 96
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 96
Observation photos (2)

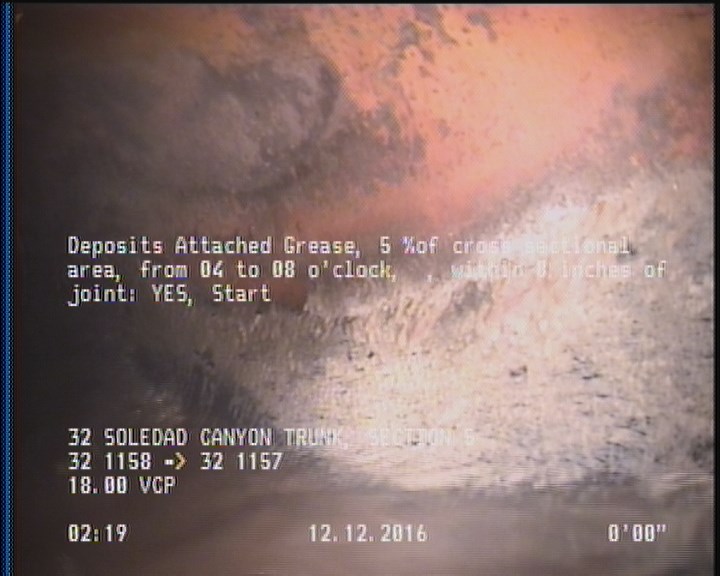

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

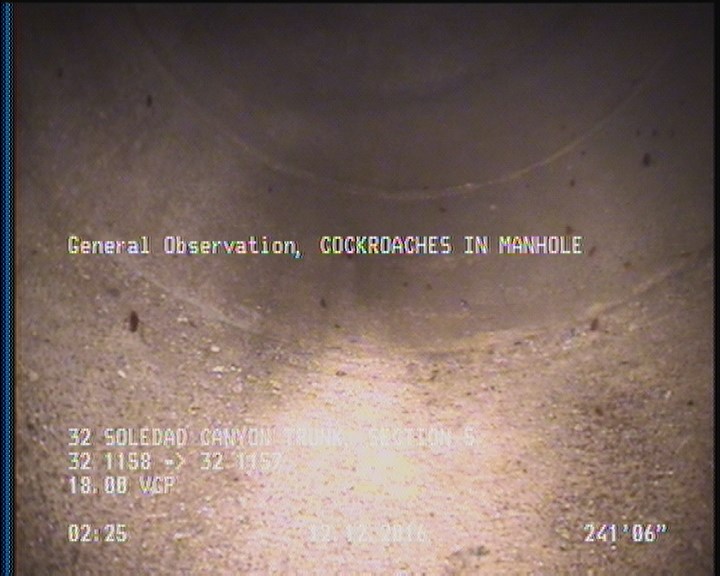

241.5 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 241.5 | AMH | 32 1157 |
| 241.5 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | 32 1158 |
| 239.6 | DAGS | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC306429
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-12T02:10:36-08:00
- sewer_category
- Gravity
