Wastewater/Activity/PacpInspection/1.0Dec 15, 2016, 08:58 AM
32 1129_32 1128 _12152016_005903.mp4
- Date
- 12/15/2016
- W/O
- 607627
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00842
- PipeID
- P19580
- Time
- 12:58 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4036
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTION 5
- City
- CANYON COUNTRY
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_607627_TV32024_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1129
- Downstream MH
- 32 1128
- Dir. of Survey
- Downstream
- Length Surveyed
- 311.8 ft.
- Total Length
- 311.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 124
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 124
Observation photos (2)

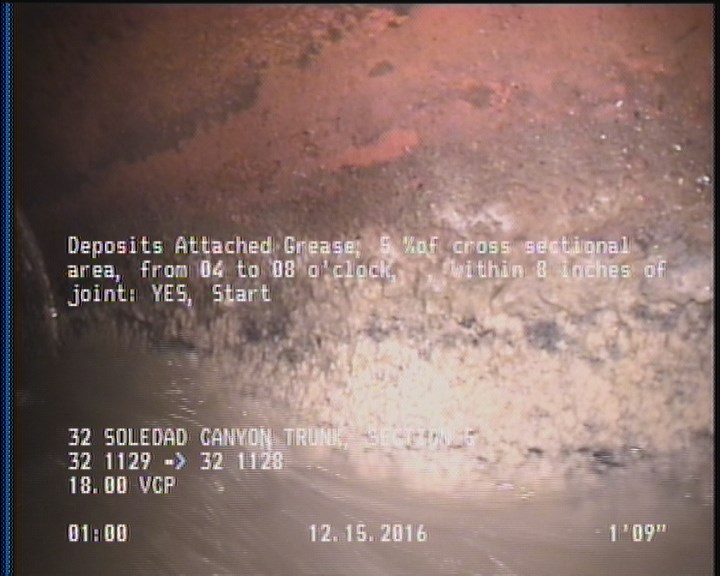

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

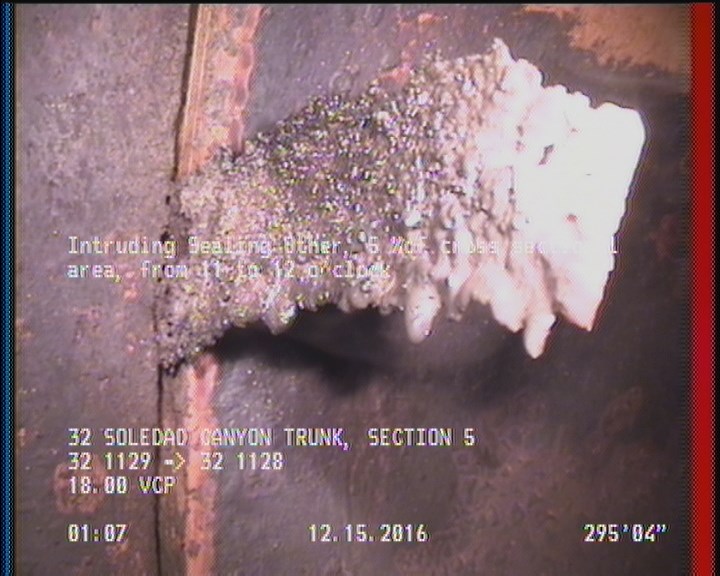

295.3 ft. - Intruding Sealing Other, 5 %of cross sectional area, from 11 to 12 o'clock
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 32 1129 |
| 295.3 | ISZ | — |
| 309.4 | DAGS | — |
| 2 | DAGS | — |
| 311.8 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 311.8 | AMH | 32 1128 |
Properties (5)
- additional_info
- SC306432
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-15T00:58:38-08:00
- sewer_category
- Gravity
