Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2016, 11:45 AM

  • 32 1300_32 1135 _12152016_034642.mp4

Date
12/15/2016
W/O
607627
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00842
PipeID
P19587
Time
3:45 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4036
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTION 5
City
CANYON COUNTRY
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
11
Purpose
Routine Assessment
Project
WO_607627_TV32024_DEC2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
32 1135
Downstream MH
32 1300
Dir. of Survey
Upstream
Length Surveyed
371.2 ft.
Total Length
371.2 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
2
Overall Quick
—
Overall Rating
151
Pipe schematic from manhole 32 1135 to 32 1300
MH: 32 1135MH: 32 1300upstream0 ft. AMH - Upstream Manhole, Survey Ends - 32 13001.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish7.3 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"78.9 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"157.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"161.7 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"263.3 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"309.4 ft. FS - Fracture Spiral, from 09 to 01 o'clock, within 8 inches of joint: YES316.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"369.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start371.2 ft. AMH - Downstream Manhole, Survey Begins - 32 1135371.2 ft. MWM - Water Mark, 25 %of cross sectional area371.2 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (2)

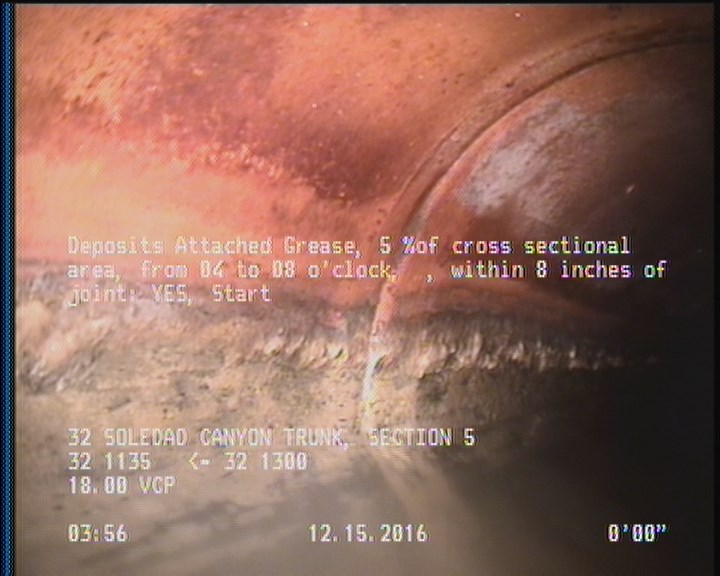

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

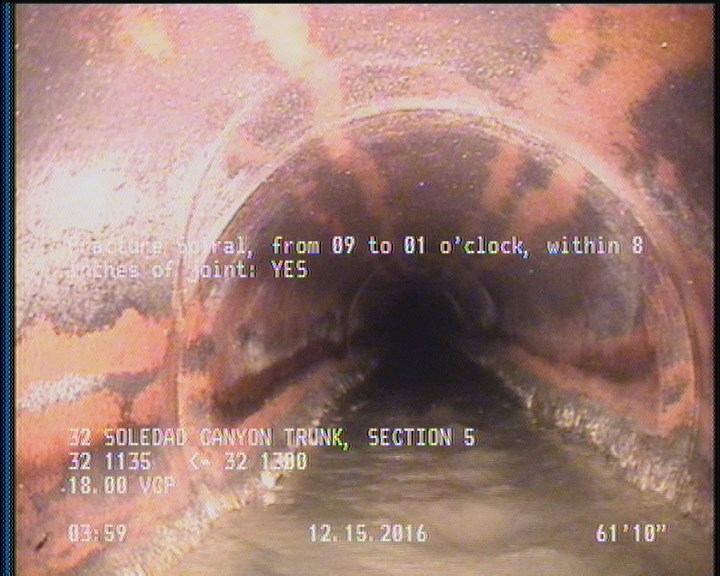

  • Fracture Spiral, from 09 to 01 o'clock, within 8 inches of joint: YES

    61.8 ft. - Fracture Spiral, from 09 to 01 o'clock, within 8 inches of joint: YES

All inspections of P19587Work order 607627

Observations (13)

DistanceCodeObservation
54.8TFC—
107.9TFA—
61.8FS—
292.3TFA—
209.5TFC—
363.9TFA—
369.6DAGS—
371.2AMH32 1300
0AMH32 1135
0MWM—
213.3TBA—
0MWL—
2DAGS—

Properties (5)

additional_info
SC306432
custom_field_two
4
customer
LACSD
datetime
2016-12-15T03:45:53-08:00
sewer_category
Gravity
