Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 12, 2016, 10:26 AM

  • 32 1157_32 1156 _12122016_022631.mp4

Date
12/12/2016
W/O
607627
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00842
PipeID
P19609
Time
2:26 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4034
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTION 5
City
CANYON COUNTRY
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
12
Purpose
Routine Assessment
Project
WO_607627_TV32024_DEC2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
32 1157
Downstream MH
32 1156
Dir. of Survey
Downstream
Length Surveyed
232.6 ft.
Total Length
232.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2H00
O&M Rating
92
Overall Index
2
Overall Quick
—
Overall Rating
92
Pipe schematic from manhole 32 1157 to 32 1156
MH: 32 1157MH: 32 1156downstream0 ft. AMH - Upstream Manhole, Survey Begins - 32 11570 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start230.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish232.6 ft. AMH - Downstream Manhole, Survey Ends - 32 1156232.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

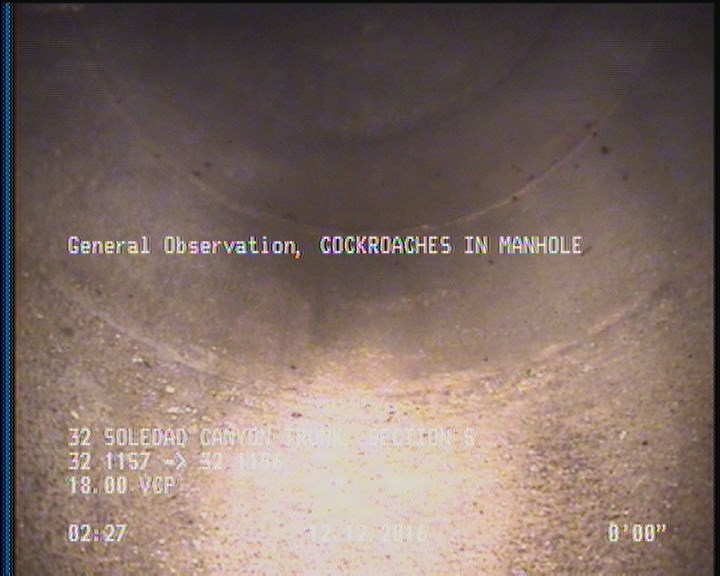

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

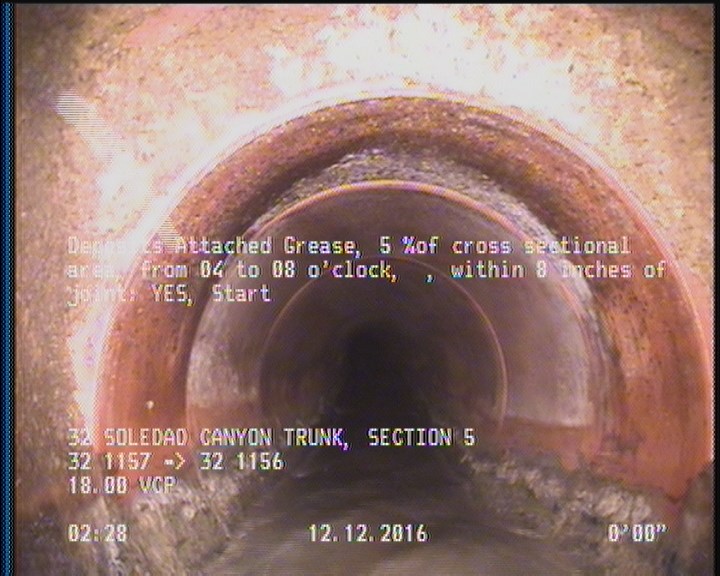

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

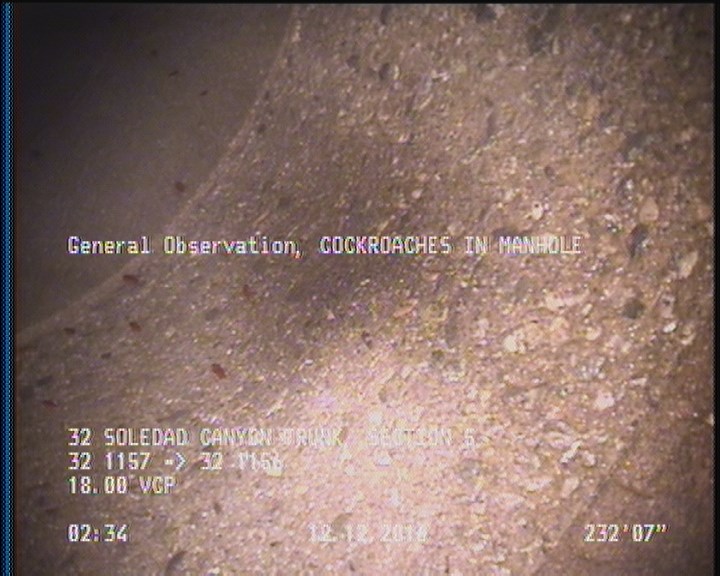

  • General Observation - COCKROACHES IN MANHOLE

    232.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P19609Work order 607627

Observations (8)

DistanceCodeObservation
230.7DAGS—
2DAGS—
0AMH32 1157
0MWL—
0MGOCOCKROACHES IN MANHOLE
232.6AMH32 1156
0MWM—
232.6MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC306429
custom_field_two
4
customer
LACSD
datetime
2016-12-12T02:26:13-08:00
sewer_category
Gravity
