Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 20, 2016, 08:37 AM

  • 32 1115_32 1319 _12202016_003755.mp4

Date
12/20/2016
W/O
607627
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00842
PipeID
P19566
Time
12:37 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4038
Sewer Name
32 SOLEDAD CANYON TRUNK, SECTION 5
City
CANYON COUNTRY
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
11
Purpose
Routine Assessment
Project
WO_607627_TV32024_DEC2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
32 1115
Downstream MH
32 1319
Dir. of Survey
Downstream
Length Surveyed
289.9 ft.
Total Length
289.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2Q00
O&M Rating
184
Overall Index
2
Overall Quick
—
Overall Rating
184
Pipe schematic from manhole 32 1115 to 32 1319
MH: 32 1115MH: 32 1319downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 11150 ft. MWL - Water Level, 20 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start14.6 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"77.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"91.8 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"111.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS230.5 ft. MGO - General Observation - UNMAPPED MH287.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish287.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish289.9 ft. AMH - Downstream Manhole, Survey Ends - 32 1319289.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

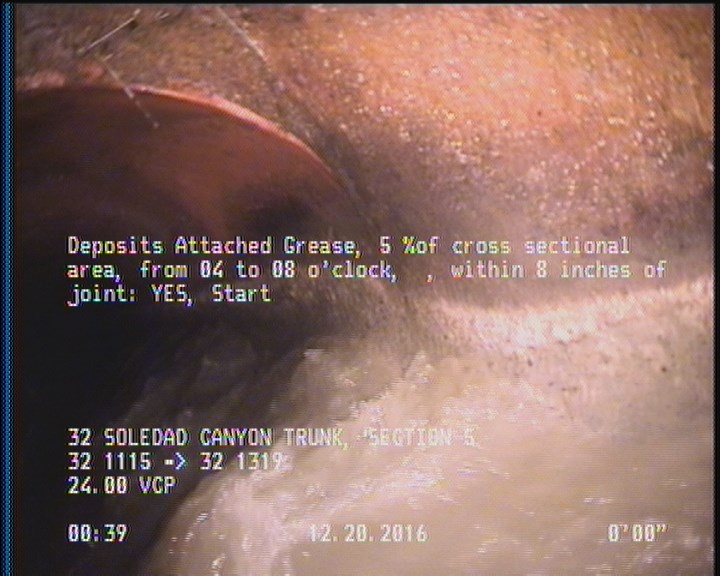

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

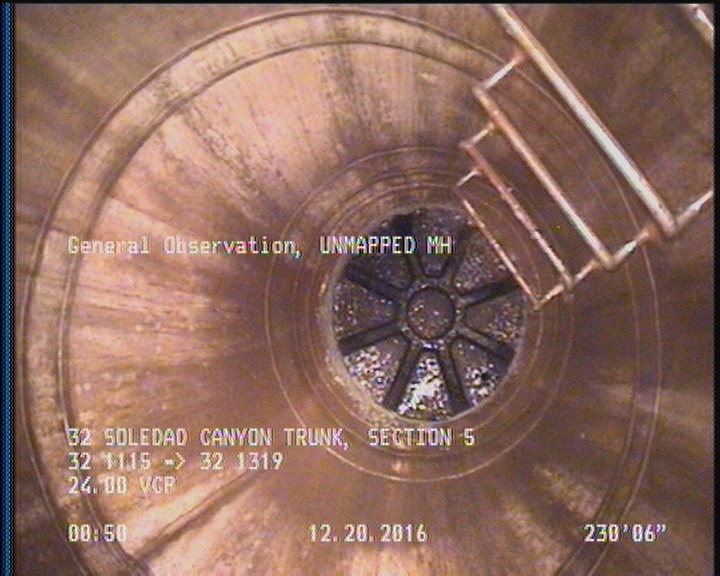

  • General Observation - UNMAPPED MH

    230.5 ft. - General Observation - UNMAPPED MH

All inspections of P19566Work order 607627

Observations (13)

DistanceCodeObservation
0MWM—
111.6DSZDEBRIS
0AMH32 1115
287.9DSZ—
91.8TFA—
230.5MGOUNMAPPED MH
77.5TFA—
287.9DAGS—
14.6TBA—
289.9AMH32 1319
0MWL—
289.9MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2DAGS—

Properties (5)

additional_info
SC306435
custom_field_two
4
customer
LACSD
datetime
2016-12-20T00:37:36-08:00
sewer_category
Gravity
