Wastewater/Activity/PacpInspection/1.0Aug 30, 2016, 08:17 AM
03 0147_03 0146A_20160830_022319.mp4
- Date
- 08/30/2016
- W/O
- 579967
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00363
- PipeID
- P04764
- Time
- 1:17 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3693
- Sewer Name
- 03 LAKEWOOD TRUNK
- City
- LAKEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_579967_TV03005_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 03 0146A
- Downstream MH
- 03 0147
- Dir. of Survey
- Upstream
- Length Surveyed
- 167.8 ft.
- Total Length
- 167.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

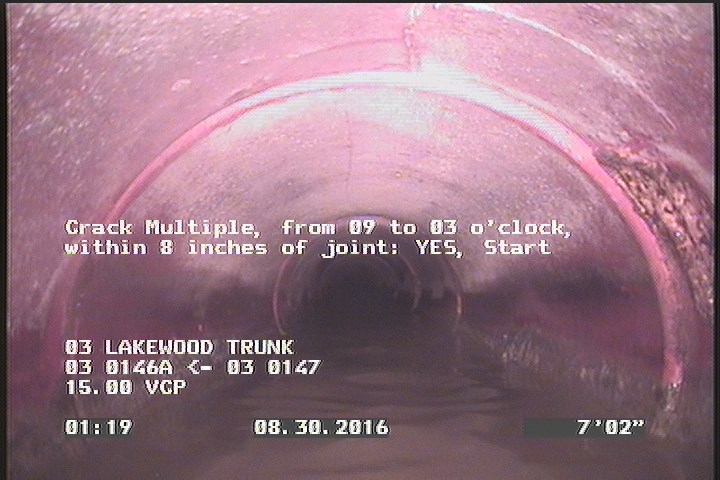

7.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

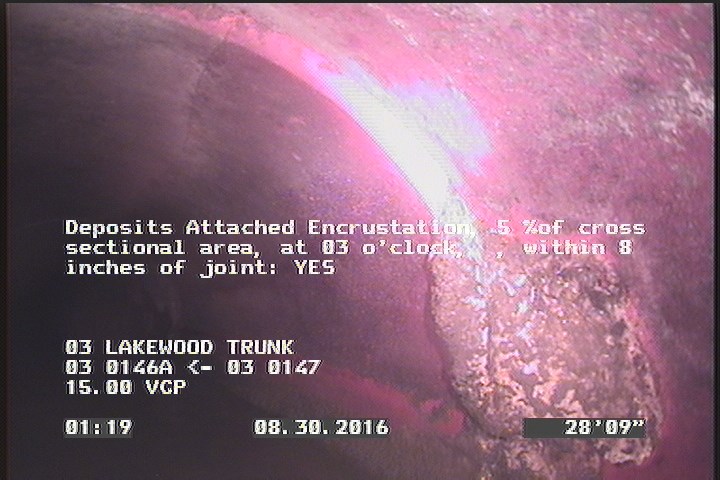

28.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES

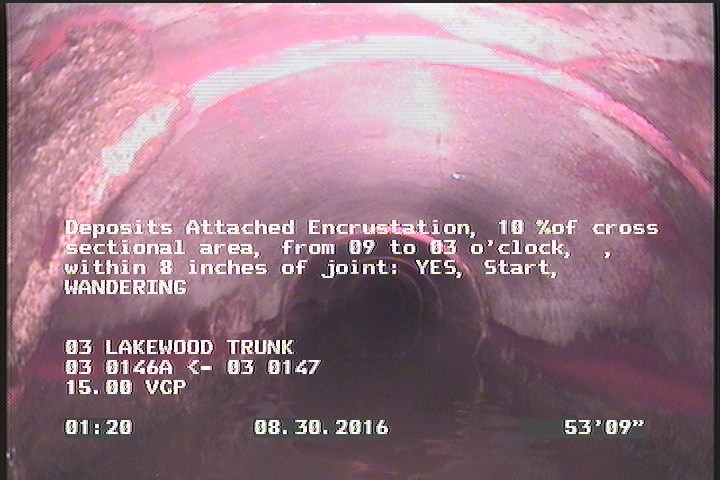

53.7 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start - WANDERING
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 53.7 | DAE | WANDERING |
| 7.2 | CM | — |
| 0 | MWL | — |
| 167.8 | AMH | 03 0147 |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT THE MH 9 O'CLOCK ACTIVE |
| 165.7 | CM | — |
| 167.8 | MGO | CONNECTION AT THE MH 9 O'CLOCK ACTIVE |
| 77.7 | TBA | — |
| 28.8 | DAE | — |
| 0 | AMH | 03 0146A |
| 165.7 | DAE | — |
Properties (5)
- additional_info
- SC306023
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-30T01:17:00-07:00
- sewer_category
- Gravity
