Wastewater/Activity/PacpInspection/1.0Dec 15, 2016, 07:04 AM
21 1150_21 1149 _14122016_230407.mp4
- Date
- 12/14/2016
- W/O
- 607659
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00780
- PipeID
- P16244
- Time
- 11:04 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3851
- Sewer Name
- 21 POMONA BOULEVARD INTERCEPTOR TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_607659_TV21018_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 21 1150
- Downstream MH
- 21 1149
- Dir. of Survey
- Downstream
- Length Surveyed
- 435.9 ft.
- Total Length
- 435.9 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

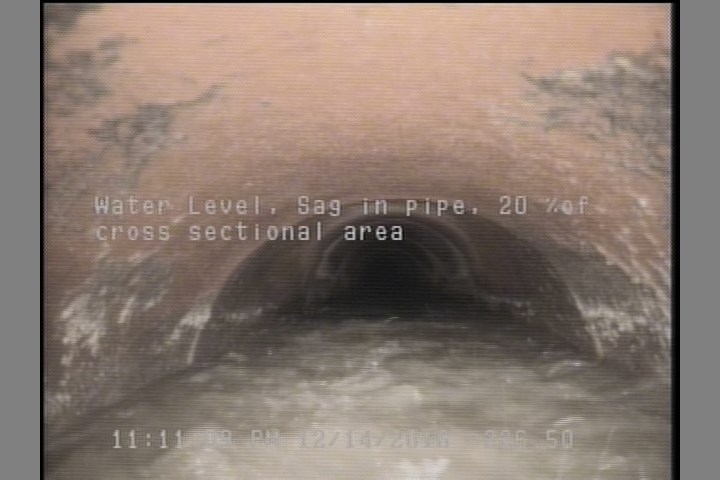

225.4 ft. - Water Level, Sag in pipe, 20 %of cross sectional area

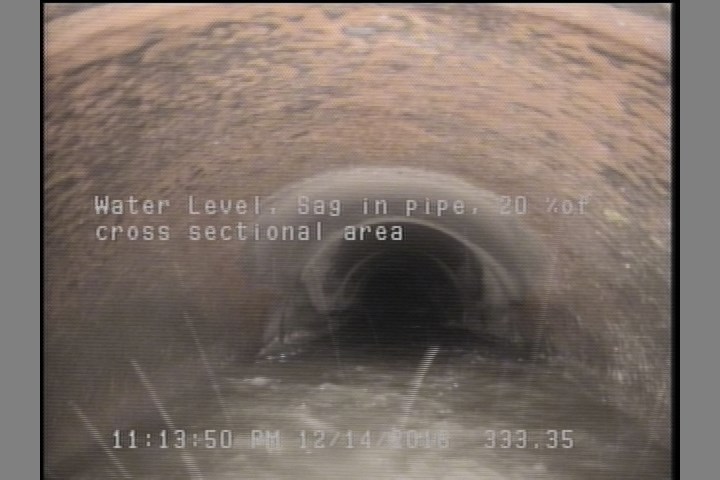

331.9 ft. - Water Level, Sag in pipe, 20 %of cross sectional area
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 435.9 | AMH | 21 1149 |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 21 1150 |
| 331.9 | MWLS | — |
| 225.4 | MWLS | — |
Properties (6)
- additional_info
- SC306452
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-14T23:04:00-08:00
- sewer_category
- Gravity
- year_laid
- 31044
