Wastewater/Activity/PacpInspection/1.0Nov 29, 2016, 07:37 AM
B 1517_B 1516 _11282016_234301.mp4
- Date
- 11/28/2016
- W/O
- 608085
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01124
- PipeID
- P25631
- Time
- 11:37 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3888
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_608085_TV16038_DEC2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- B 1517
- Downstream MH
- B 1516
- Dir. of Survey
- Downstream
- Length Surveyed
- 37.8 ft.
- Total Length
- 37.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2711
- O&M Rating
- 15
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (2)

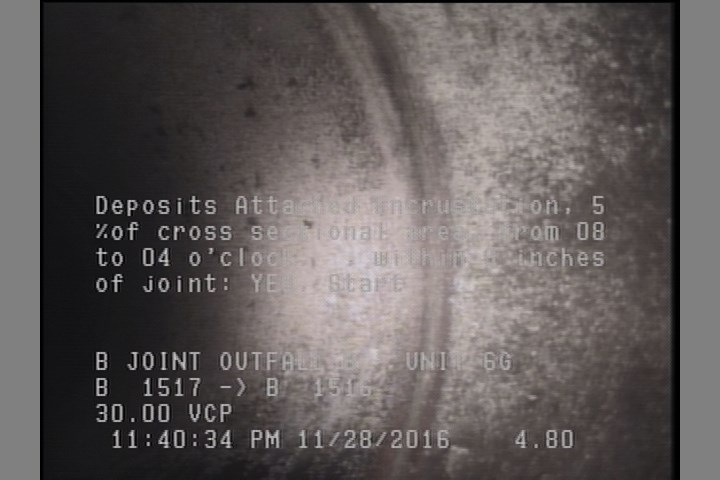

4.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

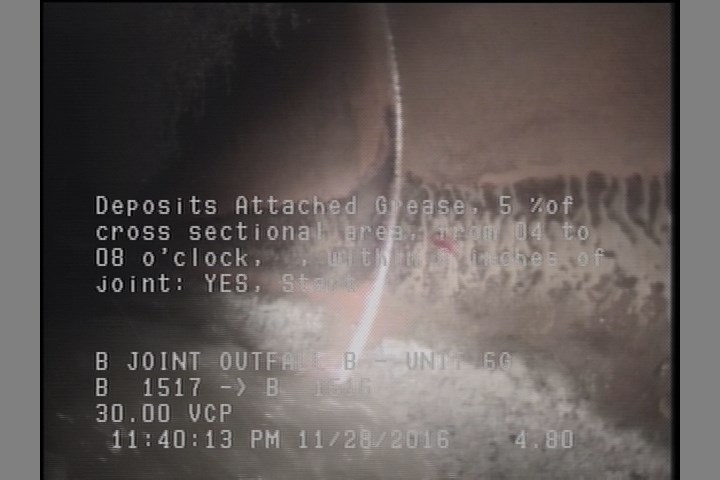

4.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | VC | — |
| 4.8 | DAE | — |
| 37.8 | AMH | B 1516 |
| 0 | AMH | B 1517 |
| 34.3 | DAGS | — |
| 0 | MWL | — |
| 4.8 | DAGS | — |
| 34.3 | DAE | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC305222
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-28T23:37:44-08:00
- year_laid
- 38886
