Wastewater/Activity/PacpInspection/1.0Dec 1, 2016, 06:59 AM
08 0673_08 0672 _11302016_230017.mp4
- Date
- 11/30/2016
- W/O
- 608076
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00446
- PipeID
- P24636
- Time
- 10:59 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4025
- Sewer Name
- 08 FIGUEROA STREET RELIEF TRUNK
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_608076_TV08016_DEC2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0672
- Downstream MH
- 08 0673
- Dir. of Survey
- Upstream
- Length Surveyed
- 373.3 ft.
- Total Length
- 373.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2]00
- O&M Rating
- 296
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 296
Observation photos (2)

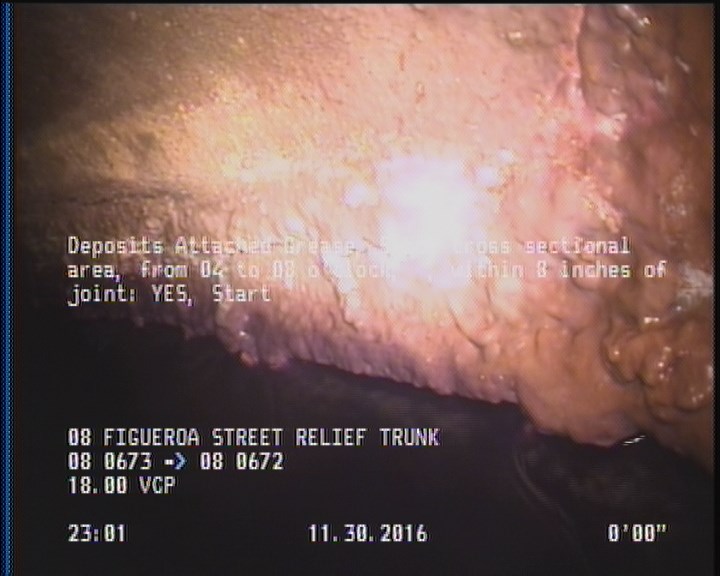

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

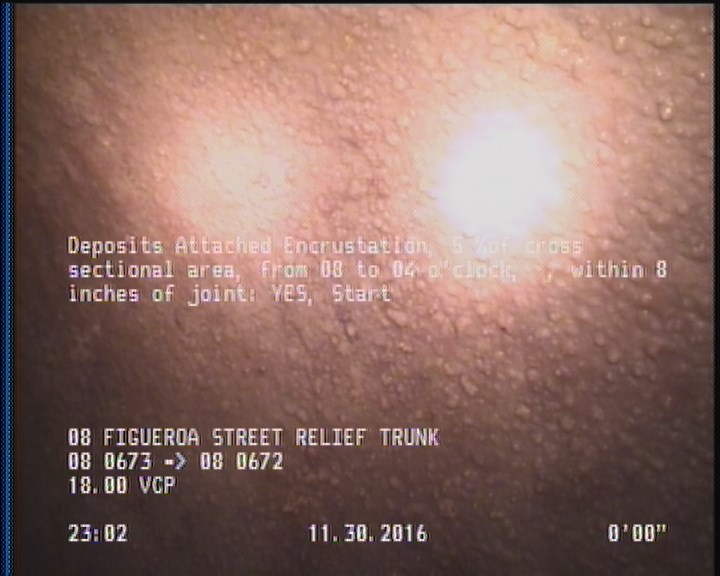

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 08 0673 |
| 373.3 | AMH | 08 0673 |
| 2 | DAGS | — |
| 2 | DAE | — |
| 0 | MWM | — |
| 371.1 | DAGS | — |
| 371.1 | DAE | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC306417
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-30T22:59:52-08:00
- year_laid
- 37470
