Wastewater/Activity/PacpInspection/1.0Dec 21, 2016, 08:10 AM
14 0506_14 0505A_12212016_001112.mp4
- Date
- 12/21/2016
- W/O
- 607671
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00579
- PipeID
- P18596
- Time
- 12:10 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4039
- Sewer Name
- 14 TRUNK "C"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_607671_TV14070_DEC2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0506
- Downstream MH
- 14 0505A
- Dir. of Survey
- Downstream
- Length Surveyed
- 74 ft.
- Total Length
- 74 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

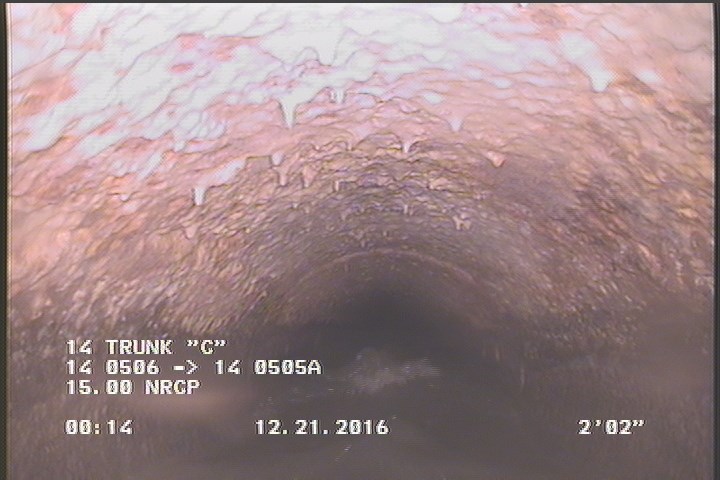

2 ft. - General Observation - MAG COATING 80%

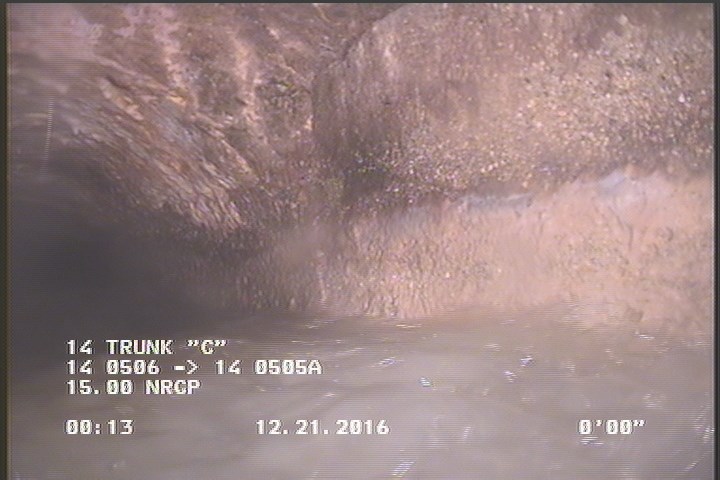

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

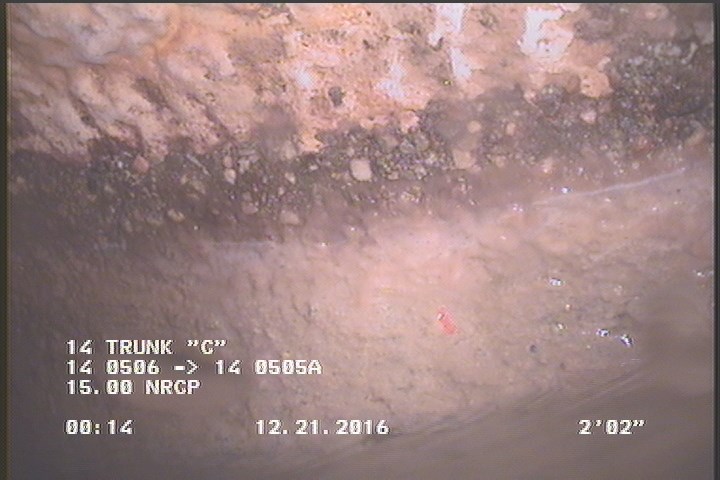

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | MGO | MAG COATING 80% |
| 2 | DAGS | — |
| 71.6 | DAGS | — |
| 68 | TFC | — |
| 71.6 | SAP | — |
| 74 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 2 | SAP | — |
| 74 | AMH | 14 0505A |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 43.8 | TFC | — |
| 0 | AMH | 14 0506 |
| 19.3 | TFC | — |
Properties (4)
- additional_info
- SC306437
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-12-21T00:10:46-08:00
