Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 25, 2016, 08:33 AM

  • 14 0179_14 0178A_10252016_013333.mp4

Date
10/25/2016
W/O
592016
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00584
PipeID
P18218
Time
1:33 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3792
Sewer Name
14 WEST SIDE TRUNK
City
LANCASTER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
18
Purpose
Routine Assessment
Project
WO_592016_TV14035_SEP2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
14 0179
Downstream MH
14 0178A
Dir. of Survey
Downstream
Length Surveyed
190 ft.
Total Length
190 ft.
Structural Index
3
Structural Quick
3F2C
Structural Rating
149
O&M Index
2
O&M Quick
2F11
O&M Rating
75
Overall Index
2
Overall Quick
—
Overall Rating
224
Pipe schematic from manhole 14 0179 to 14 0178A
MH: 14 0179MH: 14 0178Adownstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 01792 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start93.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start103.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"175.9 ft. RFJ - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR188 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish188 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish188 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish190 ft. AMH - Downstream Manhole, Survey Ends - 14 0178A190 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK190 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (5)

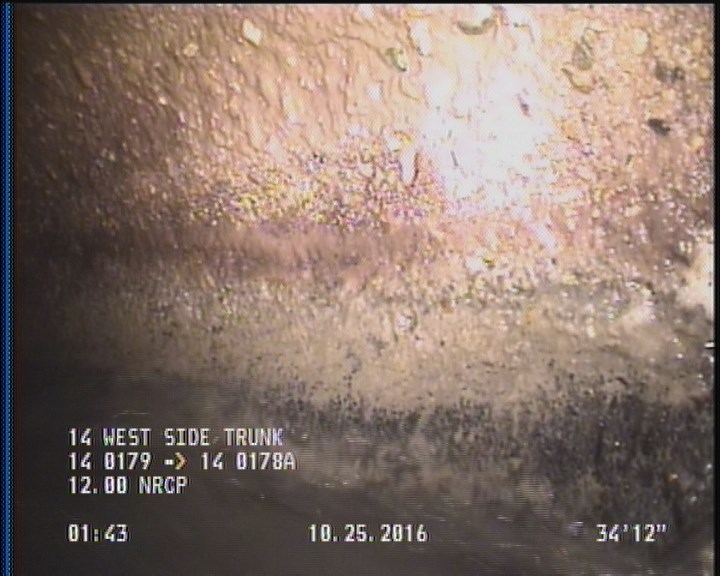

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

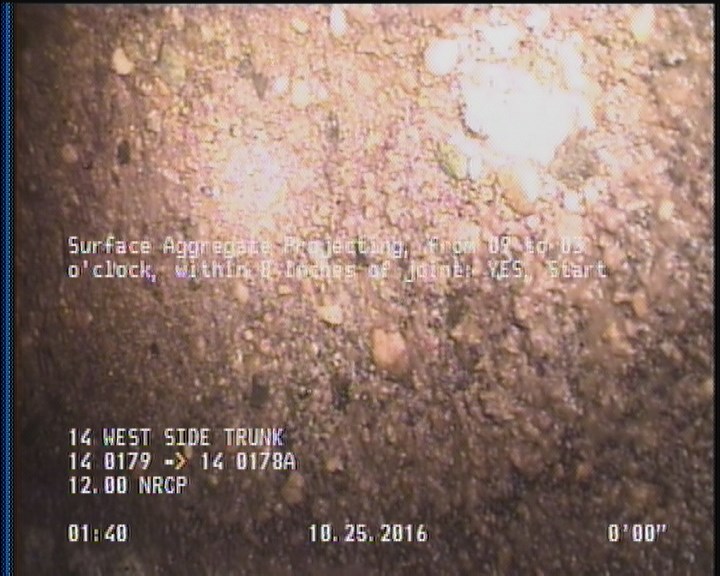

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

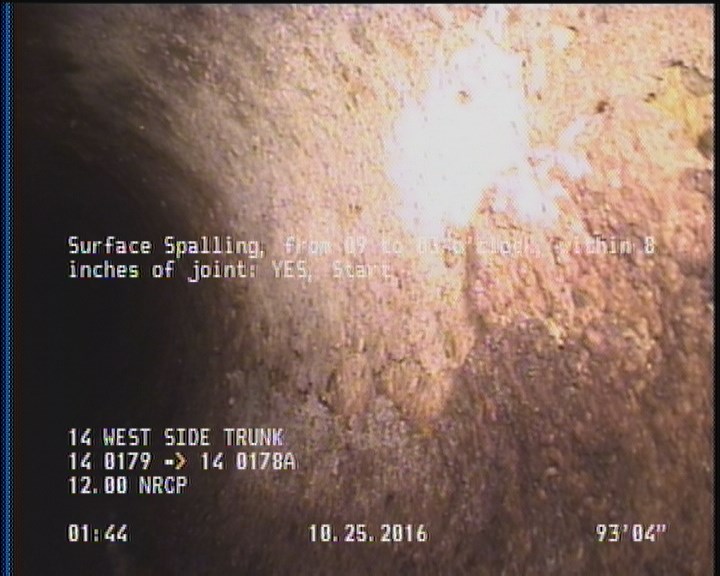

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    93.3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

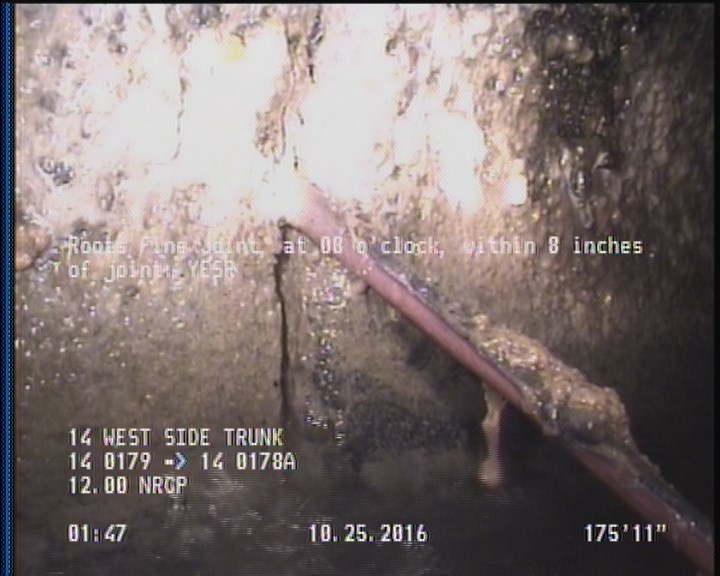

  • Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR

    175.9 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR

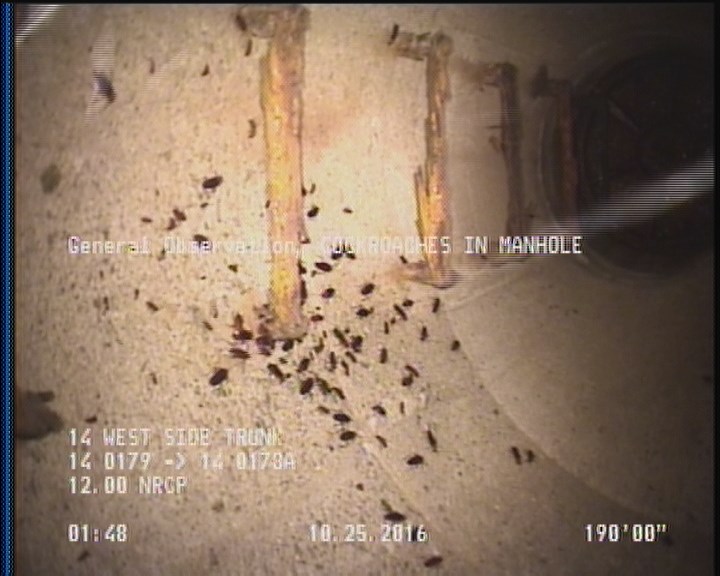

  • General Observation - COCKROACHES IN MANHOLE

    190 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18218Work order 592016

Observations (15)

DistanceCodeObservation
188SSS—
190AMH14 0178A
190MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
188DAGS—
188SAP—
2DAGS—
0MWL—
175.9RFJ—
190MGOCOCKROACHES IN MANHOLE
103.8TFC—
0MWM—
93.3SSS—
2SAP—
0AMH14 0179

Properties (4)

additional_info
SC306330
custom_field_two
2
customer
LACSD
datetime
2016-10-25T01:33:18-07:00
