- Date
- 10/25/2016
- W/O
- 592016
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18195
- Time
- 3:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3792
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_592016_TV14035_SEP2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0159
- Downstream MH
- 14 0158
- Dir. of Survey
- Downstream
- Length Surveyed
- 437.3 ft.
- Total Length
- 437.3 ft.
- Structural Index
- 3
- Structural Quick
- 3P2P
- Structural Rating
- 435
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 181
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 616
Pipe schematic from manhole 14 0159 to 14 0158 Observation photos (4)

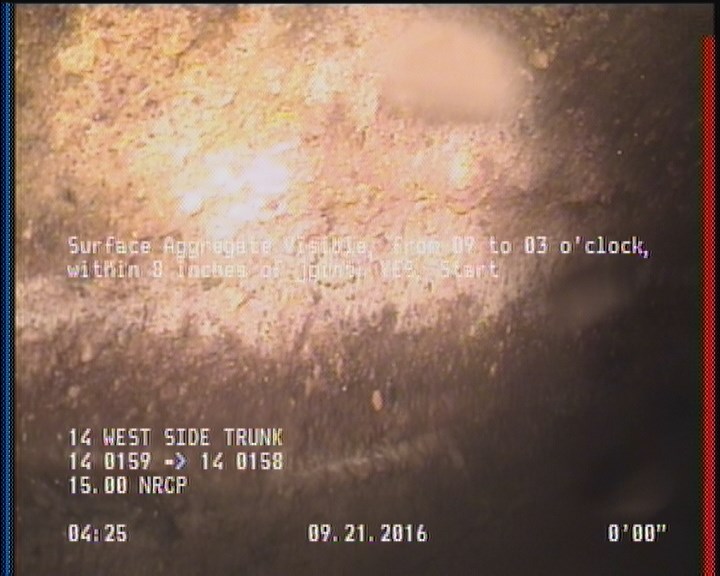

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

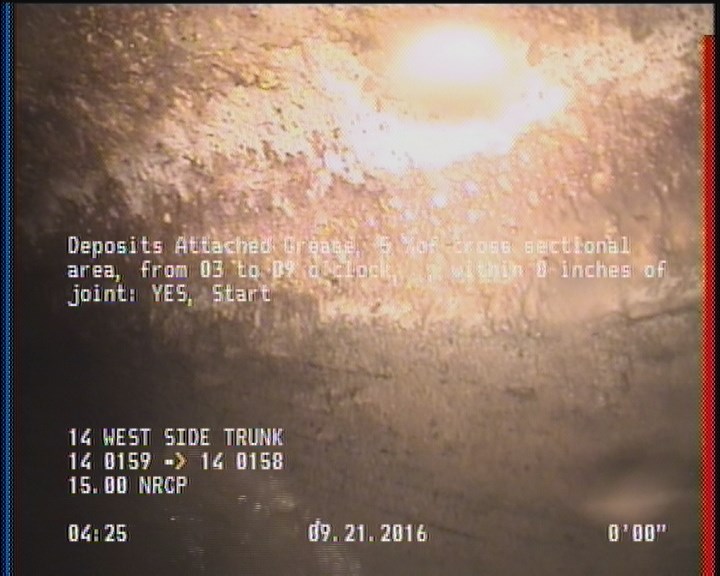

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

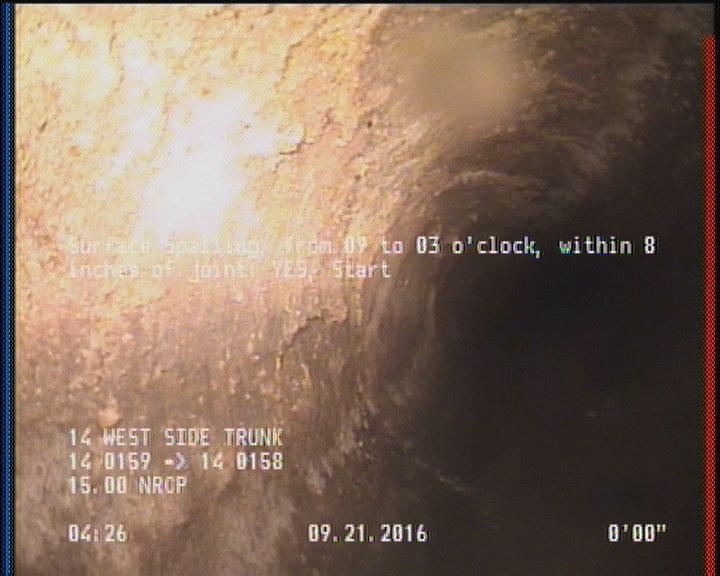

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

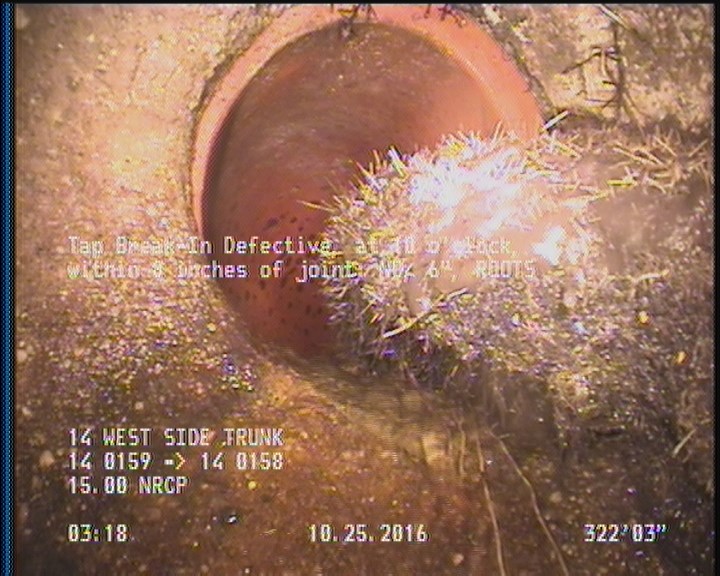

322.2 ft. - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - ROOTS
