Wastewater/Activity/PacpInspection/1.0Dec 9, 2016, 09:04 AM
02 1277_02 1276_12092016_011922.mp4
- Date
- 12/09/2016
- W/O
- 607634
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00238
- PipeID
- P03791
- Time
- 1:04 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3936
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- EAST LOS ANGELES, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607634_TV02329_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 1277
- Downstream MH
- 02 1276
- Dir. of Survey
- Downstream
- Length Surveyed
- 364.2 ft.
- Total Length
- 364.2 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

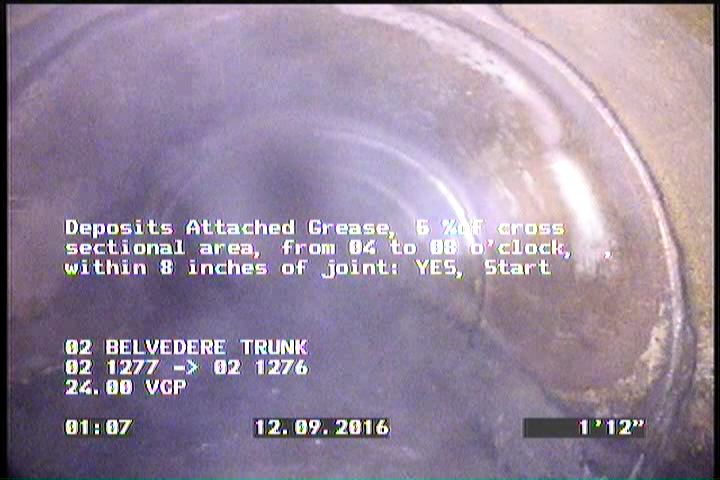

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

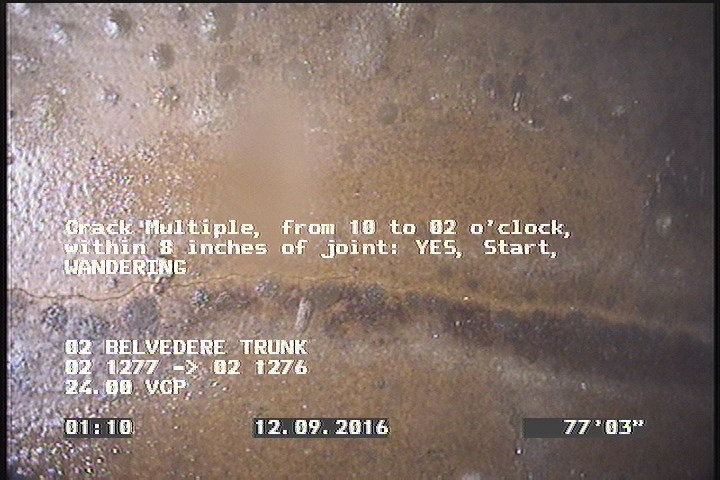

77.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - WANDERING

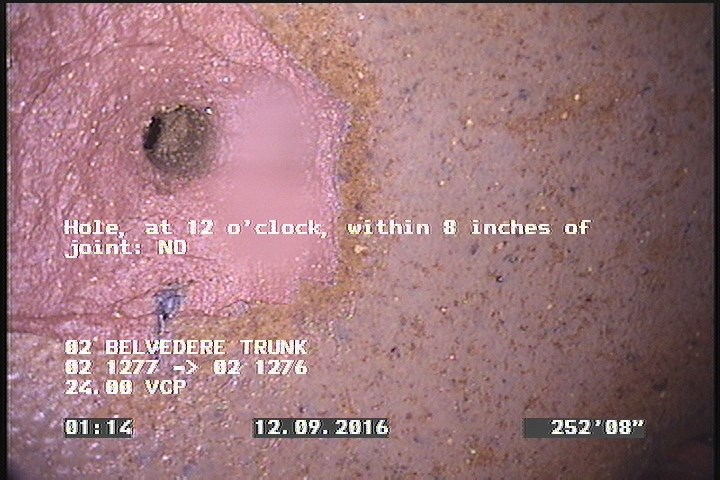

252.7 ft. - Hole, at 12 o'clock, within 8 inches of joint: NO

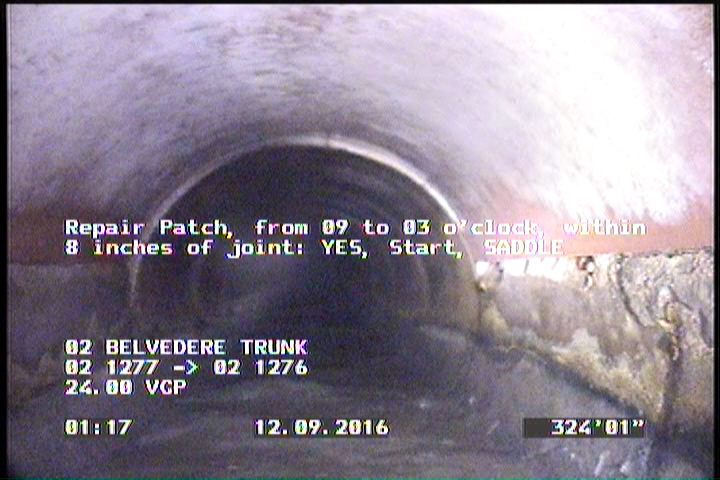

324 ft. - Repair Patch, from 09 to 03 o'clock, within 8 inches of joint: YES - SADDLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 77.2 | CM | WANDERING |
| 2 | DAGS | — |
| 361.6 | DAGS | — |
| 0 | AMH | 02 1277 |
| 252.7 | H | — |
| 253.5 | TBA | — |
| 265.7 | CM | — |
| 364.2 | AMH | 02 1276 |
| 324 | RPP | SADDLE |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC317680
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-12-09T01:04:00-08:00
- sewer_category
- Gravity
