Wastewater/Activity/PacpInspection/1.0Dec 14, 2016, 07:33 AM
02 1284_02 1283_12132016_235531.mp4
- Date
- 12/13/2016
- W/O
- 607634
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00238
- PipeID
- P03801
- Time
- 11:33 PM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3939
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- EAST LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607634_TV02329_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 1284
- Downstream MH
- 02 1283
- Dir. of Survey
- Downstream
- Length Surveyed
- 307.8 ft.
- Total Length
- 307.8 ft.
- Structural Index
- 3
- Structural Quick
- 3321
- Structural Rating
- 11
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (8)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
41.3 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
54.7 ft. - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: NO
188.5 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
198.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
220.7 ft. - Repair Localized Liner, within 8 inches of joint: YES, Start - LINK PIPE

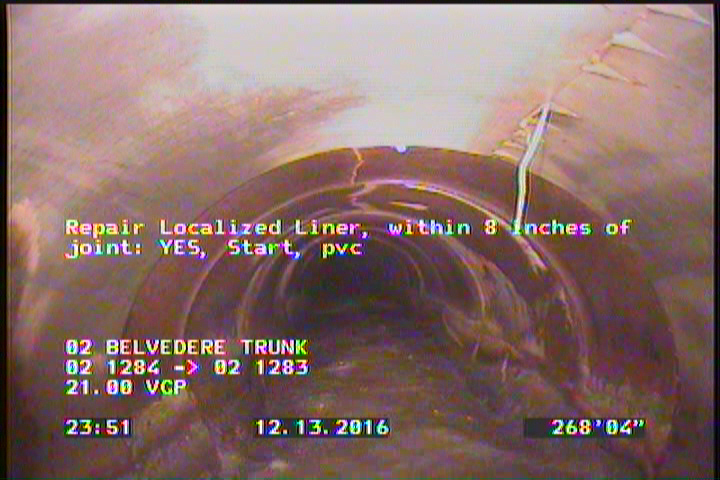

268.4 ft. - Repair Localized Liner, within 8 inches of joint: YES, Start - LINK PIPE

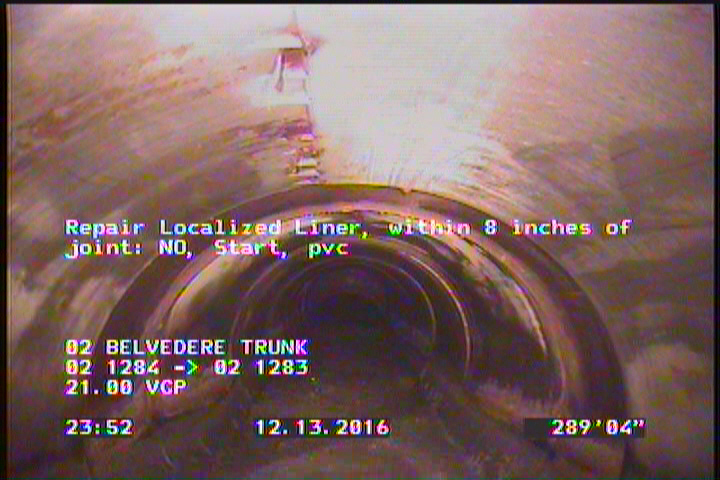

289.3 ft. - Repair Localized Liner, within 8 inches of joint: NO, Start - LINK PIPE
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 289.3 | RPL | LINK PIPE |
| 0 | MGO | LATERAL AT MH 3 O'CLOCK |
| 2 | DAGS | — |
| 293 | RPL | LINK PIPE |
| 188.5 | CM | — |
| 54.7 | FL | — |
| 41.3 | CM | — |
| 271.8 | RPL | LINK PIPE |
| 225.4 | RPL | LINK PIPE |
| 82.2 | CM | — |
| 198.4 | CL | — |
| 0 | AMH | 02 1284 |
| 0 | MWM | — |
| 220.7 | RPL | LINK PIPE |
| 0 | MWL | — |
| 306.8 | DAGS | — |
| 307.8 | AMH | 02 1283 |
| 297.7 | CL | — |
| 268.4 | RPL | LINK PIPE |
Properties (5)
- additional_info
- SC317683
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-12-13T23:33:00-08:00
- sewer_category
- Gravity
