Wastewater/Activity/PacpInspection/1.0Dec 8, 2016, 10:40 AM
02 1303_02 1302_12082016_025220.mp4
- Date
- 12/08/2016
- W/O
- 607634
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00238
- PipeID
- P03822
- Time
- 2:40 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3935
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- EAST LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607634_TV02329_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1303
- Downstream MH
- 02 1302
- Dir. of Survey
- Downstream
- Length Surveyed
- 327.3 ft.
- Total Length
- 327.3 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 3121
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (6)
1.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
86.6 ft. - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YES
97.4 ft. - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YES

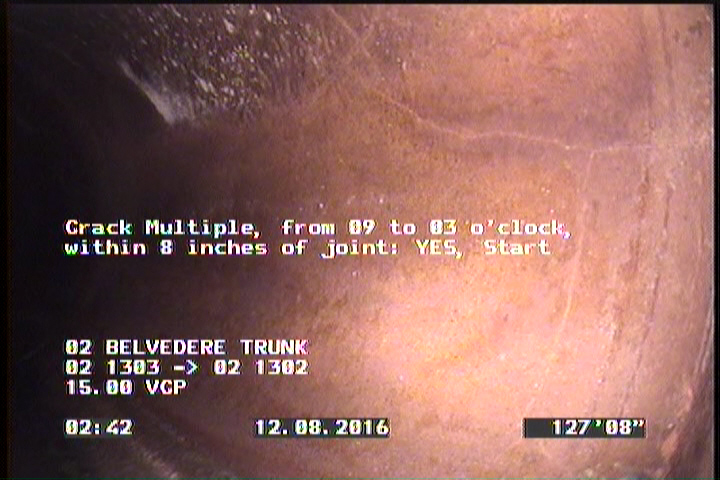

127.7 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
224.4 ft. - Roots Medium Joint, at 04 o'clock, 5 %, within 8 inches of joint: YESR
282.8 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"
Observations (22)
| Distance | Code | Observation |
|---|---|---|
| 224.4 | RMJ | — |
| 197.9 | TFA | — |
| 282.8 | TB | — |
| 255 | TBA | — |
| 327.3 | VC | — |
| 127.7 | CM | — |
| 0 | MWL | — |
| 177.6 | CM | — |
| 0 | MWM | — |
| 246.6 | TFC | — |
| 297.8 | TFC | — |
| 327.3 | MGO | LATERAL AT MH 3 O CLOCK |
| 86.6 | RFJ | — |
| 45.3 | TFA | — |
| 251.5 | TBA | — |
| 146.7 | TFA | — |
| 0 | AMH | 02 1303 |
| 327.3 | AMH | 02 1302 |
| 97.4 | RFJ | — |
| 1.4 | DAGS | — |
| 323.6 | DAGS | — |
| 93.3 | TFA | — |
Properties (5)
- additional_info
- SC317679
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-12-08T02:40:00-08:00
- sewer_category
- Gravity
