Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 8, 2016, 06:30 AM

  • 02 1326_02 1325_12072016_225004.mp4

Date
12/07/2016
W/O
607634
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00238
PipeID
P03849
Time
10:30 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3935
Sewer Name
02 BELVEDERE TRUNK
City
EAST LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
WO_607634_TV02329_DEC2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1326
Downstream MH
02 1325
Dir. of Survey
Downstream
Length Surveyed
276.6 ft.
Total Length
276.6 ft.
Structural Index
2
Structural Quick
2711
Structural Rating
15
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 02 1326 to 02 1325
MH: 02 1326MH: 02 1325downstream0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 13260 ft. VC - Vermin Cockroach31.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES37 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"73.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"76.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES79 ft. CC - Crack Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES83.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES100.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"103.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"120 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES138.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"138.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES173 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES179.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"184.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - WANDERING198 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"226.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"233.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"239 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"264 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - WANDERING274.2 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - ROCKS276.6 ft. AMH - Downstream Manhole, Survey Ends - 02 1325

Observation photos (8)

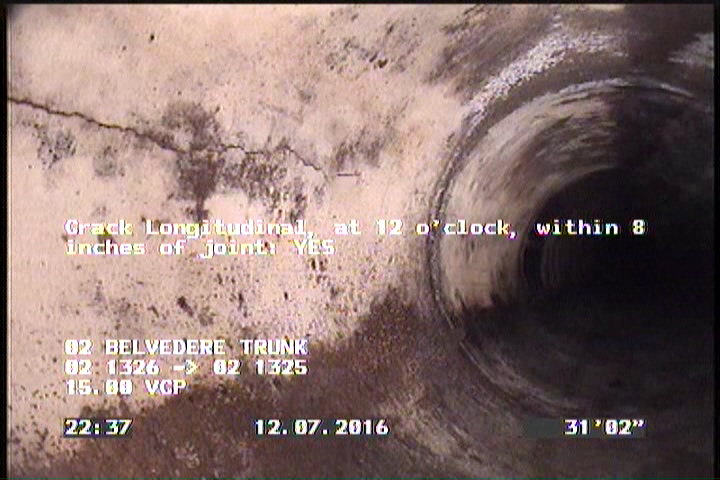

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    31.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    76.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES

    79 ft. - Crack Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES

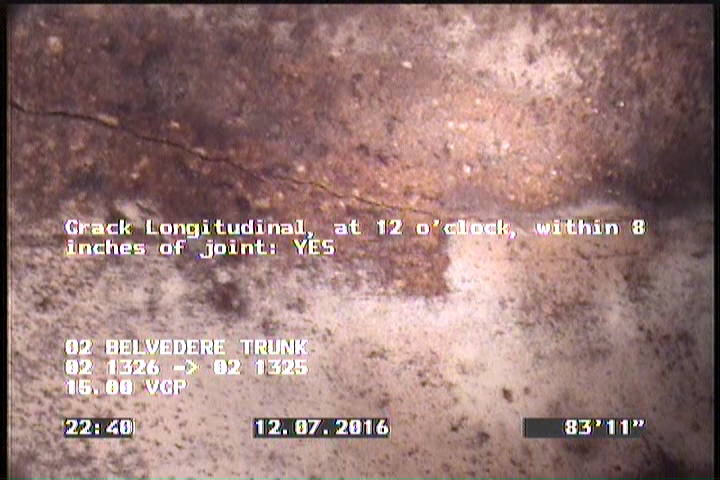

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    83.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

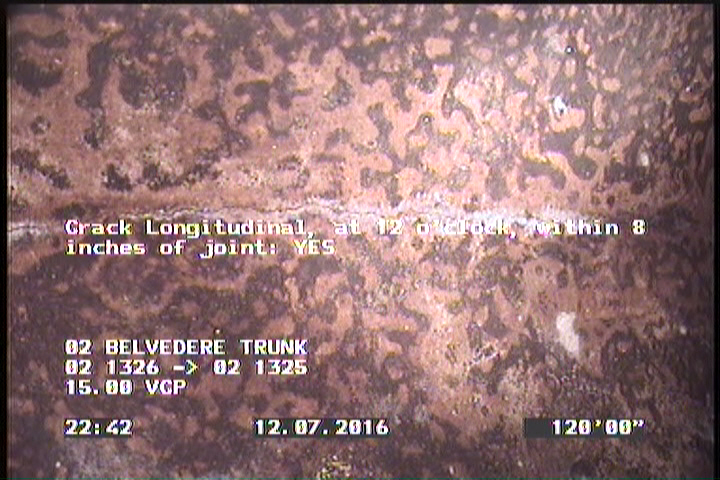

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    120 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

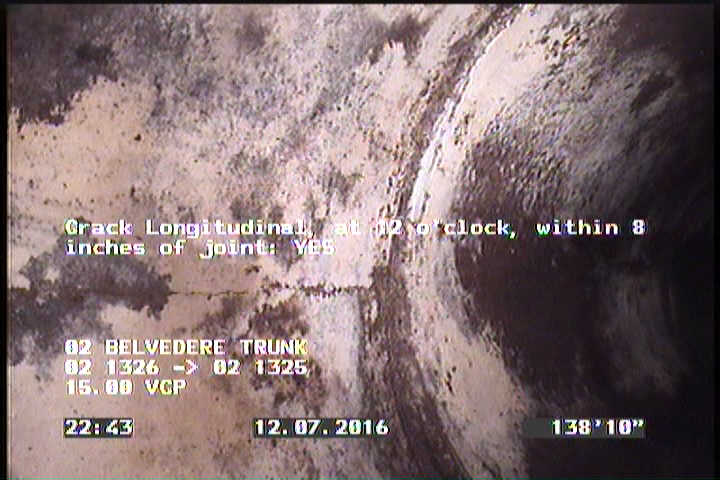

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    138.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

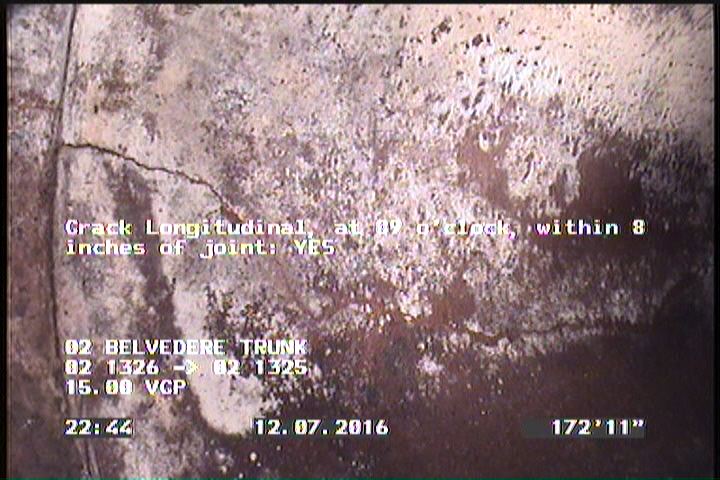

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    173 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - WANDERING

    184.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - WANDERING

All inspections of P03849Work order 607634

Observations (25)

DistanceCodeObservation
274.2DSZROCKS
103.3TFC—
120CL—
239TFC—
0MWM—
276.6AMH02 1325
37TFC—
31.2CL—
79CC—
0MWL—
233.5TFC—
184.2CLWANDERING
264CLWANDERING
138.8TFC—
76.5CL—
100.8TFC—
73.3TFC—
179.7TFC—
0AMH02 1326
0VC—
138.8CL—
83.9CL—
226.1TFC—
198TFC—
173CL—

Properties (5)

additional_info
SC317679
custom_field_two
3
customer
LACSD
datetime
2016-12-07T22:30:00-08:00
sewer_category
Gravity
