Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 8, 2016, 12:11 PM

  • 02 1297_02 1296_12082016_042501.mp4

Date
12/08/2016
W/O
607634
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00238
PipeID
P03814
Time
4:11 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3935
Sewer Name
02 BELVEDERE TRUNK
City
EAST LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
WO_607634_TV02329_DEC2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1297
Downstream MH
02 1296
Dir. of Survey
Downstream
Length Surveyed
283.7 ft.
Total Length
283.7 ft.
Structural Index
1
Structural Quick
1200
Structural Rating
2
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
1
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 02 1297 to 02 1296
MH: 02 1297MH: 02 1296downstream0 ft. VC - Vermin Cockroach0 ft. AMH - Upstream Manhole, Survey Begins - 02 12970 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area8.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"37.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"47.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"85.4 ft. CC - Crack Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES85.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"88.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"91.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"95.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"124.8 ft. CC - Crack Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES126.8 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"132 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"134 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"208.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"211.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"213.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"244.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"283.7 ft. AMH - Downstream Manhole, Survey Ends - 02 1296

Observation photos (2)

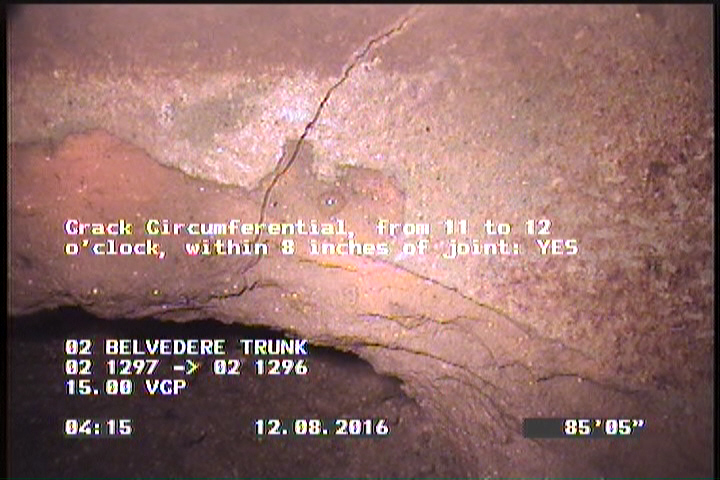

  • Crack Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES

    85.4 ft. - Crack Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES

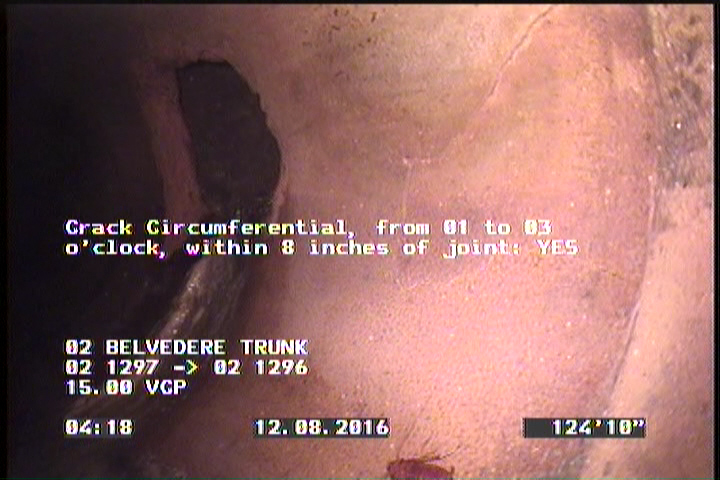

  • Crack Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES

    124.8 ft. - Crack Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES

All inspections of P03814Work order 607634

Observations (21)

DistanceCodeObservation
85.4CC—
213.5TFA—
211.3TFA—
88.5TFC—
124.8CC—
132TFA—
126.8TBA—
95.8TFA—
134TFC—
244.6TFA—
37.2TFA—
0VC—
0AMH02 1297
8.7TFA—
283.7AMH02 1296
208.9TF—
47.4TFA—
0MWL—
91.1TF—
85.4TBA—
0MWM—

Properties (5)

additional_info
SC317679
custom_field_two
4
customer
LACSD
datetime
2016-12-08T04:11:00-08:00
sewer_category
Gravity
