Wastewater/Activity/PacpInspection/1.0Dec 14, 2016, 09:14 AM
02 1301A_02 1301_12142016_012242.mp4
- Date
- 12/14/2016
- W/O
- 607634
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00238
- PipeID
- P03819
- Time
- 1:14 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3939
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- EAST LOS ANGELES, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607634_TV02329_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1301
- Downstream MH
- 02 1301A
- Dir. of Survey
- Upstream
- Length Surveyed
- 117.5 ft.
- Total Length
- 117.5 ft.
- Structural Index
- 4
- Structural Quick
- 5121
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

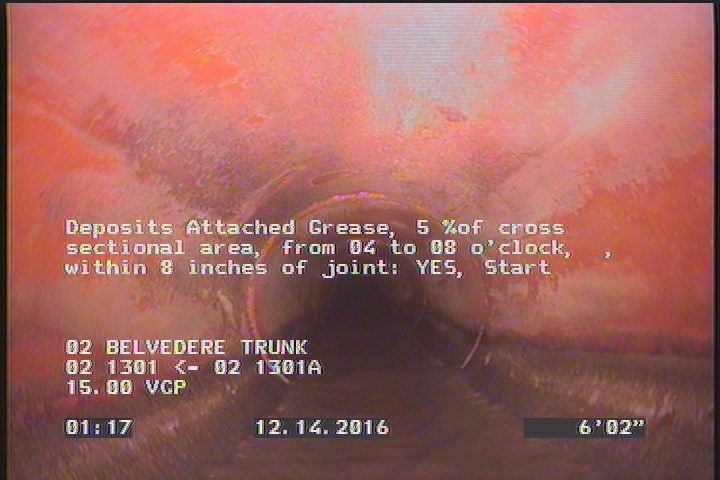

6.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

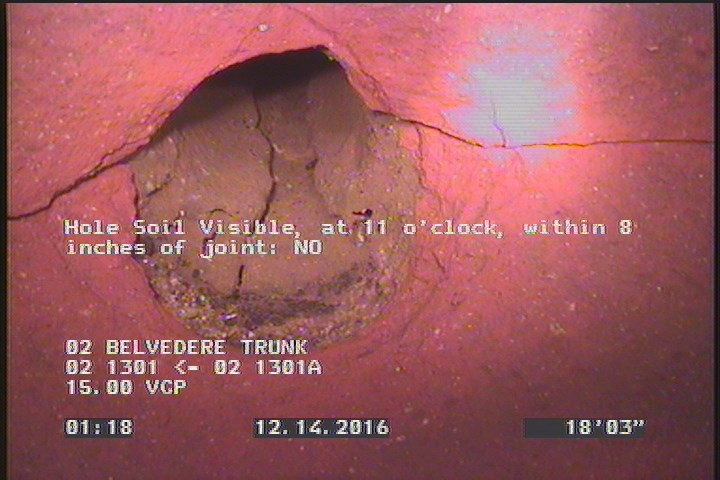

18.3 ft. - Hole Soil Visible, at 11 o'clock, within 8 inches of joint: NO

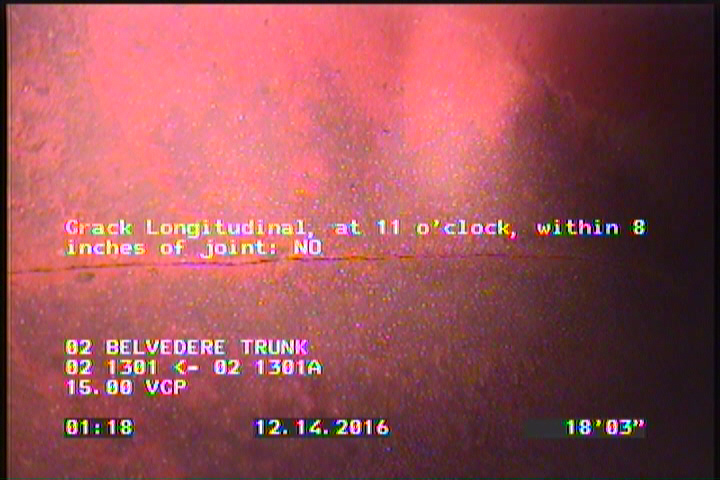

18.3 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 115.7 | DAGS | — |
| 0 | MWM | — |
| 34.8 | TFA | — |
| 0 | AMH | 02 1301 |
| 18.3 | HSV | — |
| 0 | MWL | — |
| 6.2 | DAGS | — |
| 18.3 | CL | — |
| 117.5 | VC | — |
| 117.5 | AMH | 02 1301A |
Properties (5)
- additional_info
- SC317683
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-12-14T01:14:00-08:00
- sewer_category
- Gravity
