Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 8, 2016, 07:11 AM

  • 02 1324_02 2039 _12072016_232645.mp4

Date
12/07/2016
W/O
607634
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00238
PipeID
P03847
Time
11:11 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3935
Sewer Name
02 BELVEDERE TRUNK
City
EAST LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
WO_607634_TV02329_DEC2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1324
Downstream MH
02 2039
Dir. of Survey
Downstream
Length Surveyed
199.6 ft.
Total Length
199.6 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
12
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 02 1324 to 02 2039
MH: 02 1324MH: 02 2039downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 13240 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 5 %of cross sectional area0.2 ft. MWM - Water Mark, 5 %of cross sectional area5.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"17 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"23.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - WANDERING51.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"51.1 ft. FM - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES66.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start66.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish73.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"93.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"99.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish165 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"180.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"186.1 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start188.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"194.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish199.6 ft. VC - Vermin Cockroach199.6 ft. AMH - Downstream Manhole, Survey Ends - 02 2039

Observation photos (4)

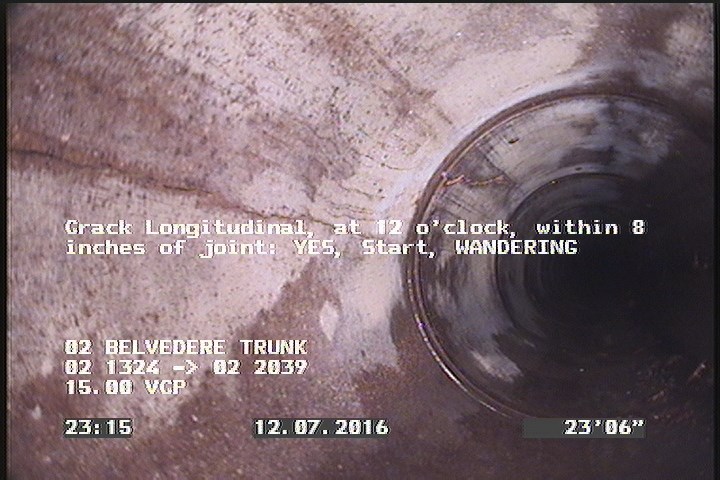

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - WANDERING

    23.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - WANDERING

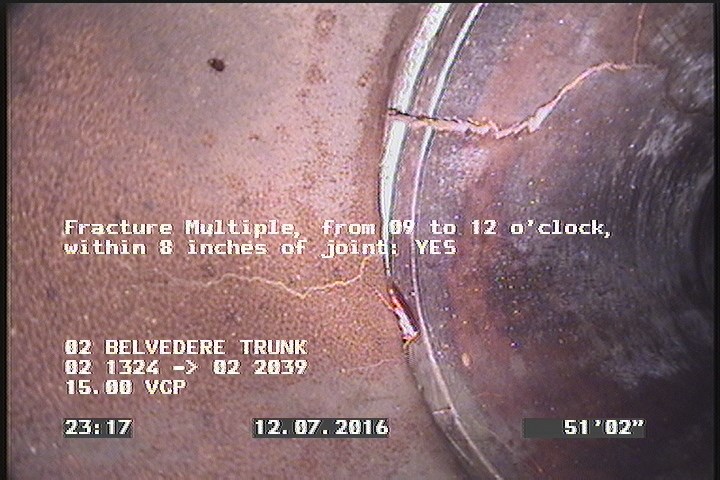

  • Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    51.1 ft. - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

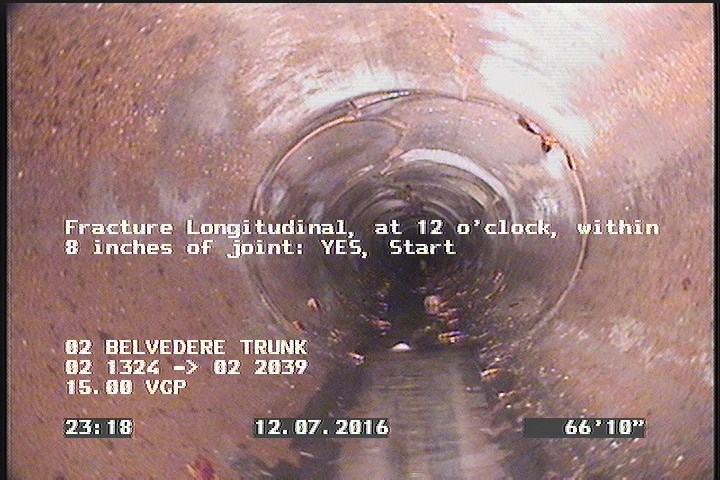

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    66.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

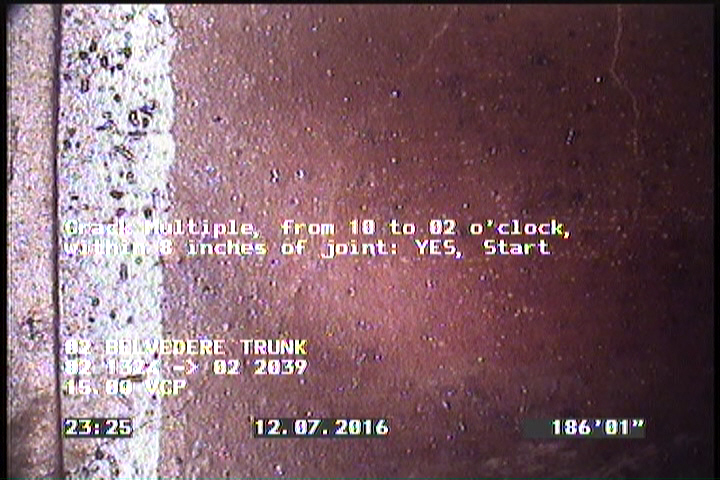

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    186.1 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P03847Work order 607634

Observations (21)

DistanceCodeObservation
51.1TF—
0.2MWM—
180.7TFA—
186.1CM—
17TFC—
5.4TFA—
199.6VC—
51.1FM—
199.6AMH02 2039
66.8FL—
93.7TFA—
188.6TFA—
99.7FL—
165TFA—
66.8CL—
23.5CLWANDERING
73.4TFC—
0AMH02 1324
0VC—
194.3CM—
0MWL—

Properties (5)

additional_info
SC317679
custom_field_two
2
customer
LACSD
datetime
2016-12-07T23:11:00-08:00
sewer_category
Gravity
