Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 8, 2016, 08:55 AM

  • 02 1312_02 1311_12082016_011356.mp4

Date
12/08/2016
W/O
607634
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00238
PipeID
P03832
Time
12:55 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3935
Sewer Name
02 BELVEDERE TRUNK
City
EAST LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
WO_607634_TV02329_DEC2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1312
Downstream MH
02 1311
Dir. of Survey
Downstream
Length Surveyed
363.8 ft.
Total Length
363.8 ft.
Structural Index
3
Structural Quick
3523
Structural Rating
21
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole 02 1312 to 02 1311
MH: 02 1312MH: 02 1311downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 13120 ft. MWL - Water Level, 10 %of cross sectional area3.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start38.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES42.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"82.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"89.9 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"97.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"109.9 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES112.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"128.4 ft. CM - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES130.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"136.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"182 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"184.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"185.3 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES186.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"225.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"230.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"271.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"274.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"290.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"293.5 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES295.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"299.2 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES, Start331.8 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish350.6 ft. CM - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES355.1 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES363.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish363.8 ft. AMH - Downstream Manhole, Survey Ends - 02 1311

Observation photos (9)

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    3.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    38.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    109.9 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

    128.4 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

    185.3 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    293.5 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

  • Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    299.2 ft. - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

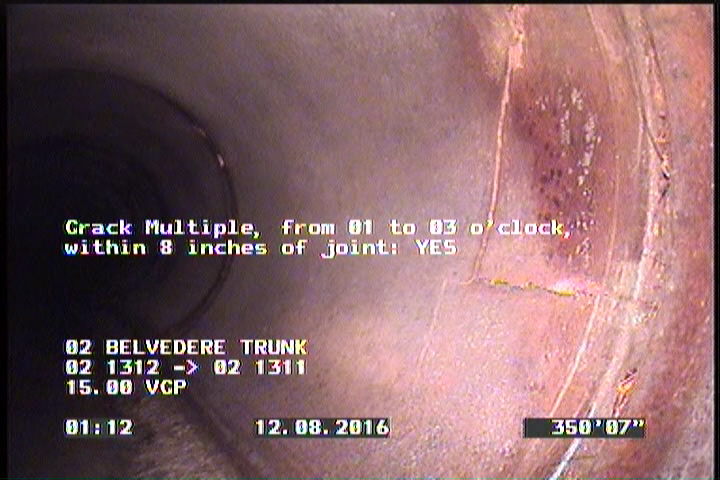

  • Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

    350.6 ft. - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

  • Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES

    355.1 ft. - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES

All inspections of P03832Work order 607634

Observations (31)

DistanceCodeObservation
331.8SSS—
0MWM—
182TFA—
130.8TFA—
271.9TF—
109.9CM—
3.6DAGS—
184.3TFC—
0AMH02 1312
136.2TFA—
42.1TFA—
290.4TFA—
363.8DAGS—
0MWL—
230.4TFA—
82.1TFC—
350.6CM—
97.4TFC—
185.3CM—
293.5CL—
225.8TF—
363.8AMH02 1311
299.2SSS—
355.1SSS—
38.5CM—
295.5TFA—
89.9TBA—
128.4CM—
274.7TFA—
186.9TBA—
112.5TF—

Properties (5)

additional_info
SC317679
custom_field_two
3
customer
LACSD
datetime
2016-12-08T00:55:00-08:00
sewer_category
Gravity
