Wastewater/Activity/PacpInspection/1.0Dec 9, 2016, 09:40 AM
02 1275A_02 1275_12092016_014327.mp4
- Date
- 12/09/2016
- W/O
- 607634
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00238
- PipeID
- P03789
- Time
- 1:40 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3936
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- EAST LOS ANGELES, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607634_TV02329_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 1275A
- Downstream MH
- 02 1275
- Dir. of Survey
- Downstream
- Length Surveyed
- 87.2 ft.
- Total Length
- 87.2 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

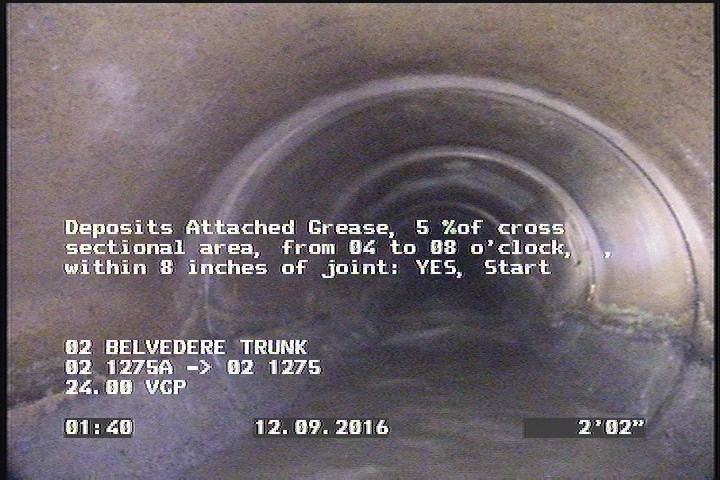

2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

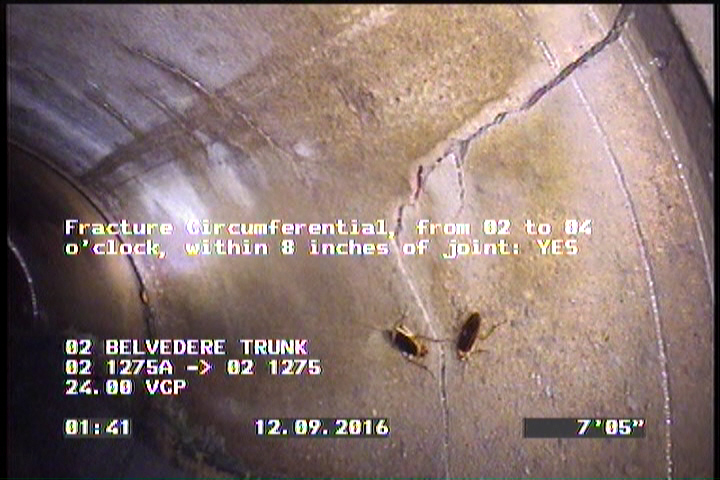

7.4 ft. - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

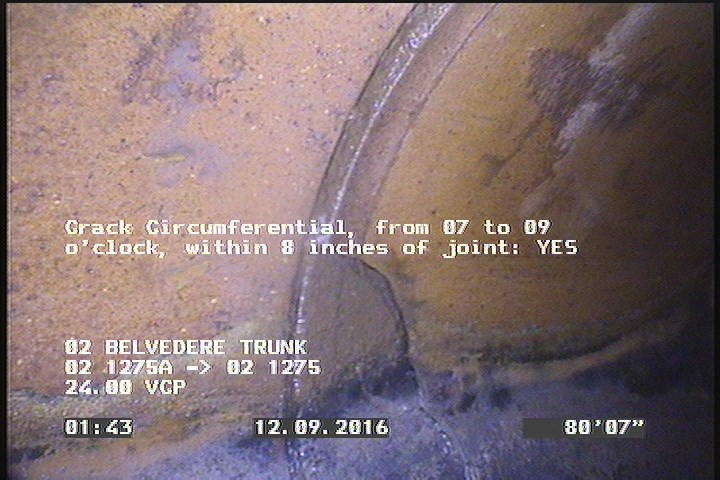

80.6 ft. - Crack Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 84.1 | DAGS | — |
| 0 | MWM | — |
| 80.6 | CC | — |
| 2.2 | DAGS | — |
| 87.2 | AMH | 02 1275 |
| 0 | AMH | 02 1275A |
| 0 | MGO | LATERAL AT MH 9 O CLOCK |
| 7.4 | FC | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC317680
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-12-09T01:40:00-08:00
- sewer_category
- Gravity
