Wastewater/Activity/PacpInspection/1.0Dec 9, 2016, 07:41 AM
02 1287_02 1286_12082016_235127.mp4
- Date
- 12/08/2016
- W/O
- 607634
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00238
- PipeID
- P03804
- Time
- 11:41 PM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3936
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- EAST LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607634_TV02329_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 1287
- Downstream MH
- 02 1286
- Dir. of Survey
- Downstream
- Length Surveyed
- 309.1 ft.
- Total Length
- 309.1 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

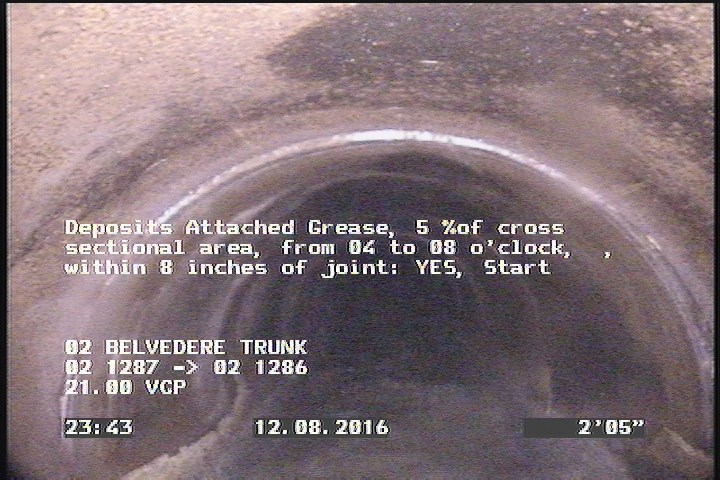

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

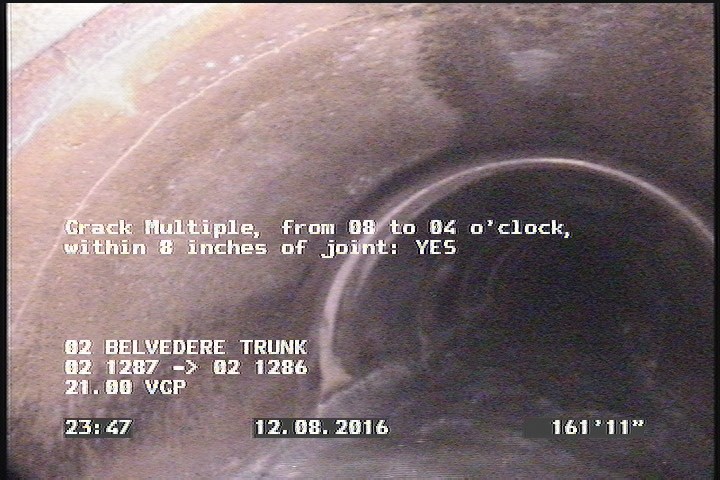

161.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

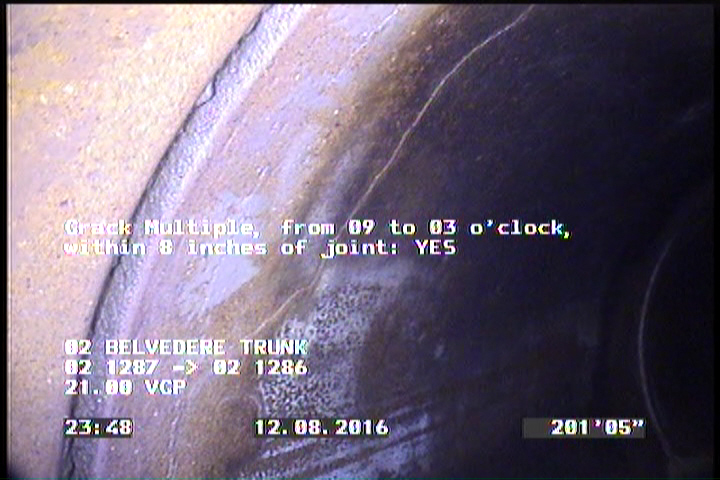

201.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

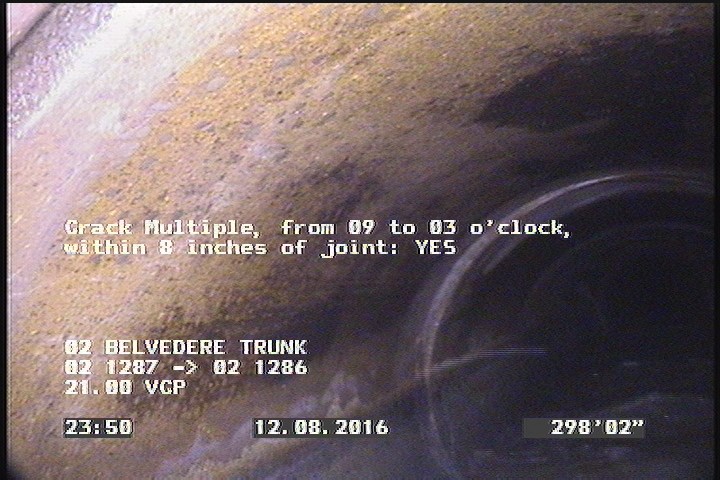

298.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 298.2 | CM | — |
| 0 | MWL | — |
| 309.1 | AMH | 02 1286 |
| 2.4 | DAGS | — |
| 201.5 | CM | — |
| 0 | AMH | 02 1287 |
| 0 | MWM | — |
| 306.6 | DAGS | — |
| 309.1 | MGO | LATERAL AT MH 9 O CLOCK |
| 161.9 | CM | — |
Properties (5)
- additional_info
- SC317680
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-08T23:41:00-08:00
- sewer_category
- Gravity
