Wastewater/Activity/PacpInspection/1.0Dec 9, 2016, 11:39 AM
02 1279_02 1278_12092016_035218.mp4
- Date
- 12/09/2016
- W/O
- 607634
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00238
- PipeID
- P03794
- Time
- 3:39 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3936
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- EAST LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607634_TV02329_DEC2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 1278
- Downstream MH
- 02 1279
- Dir. of Survey
- Upstream
- Length Surveyed
- 320.6 ft.
- Total Length
- 320.6 ft.
- Structural Index
- 2
- Structural Quick
- 2400
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (5)
3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
7.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - WANDERING 20%

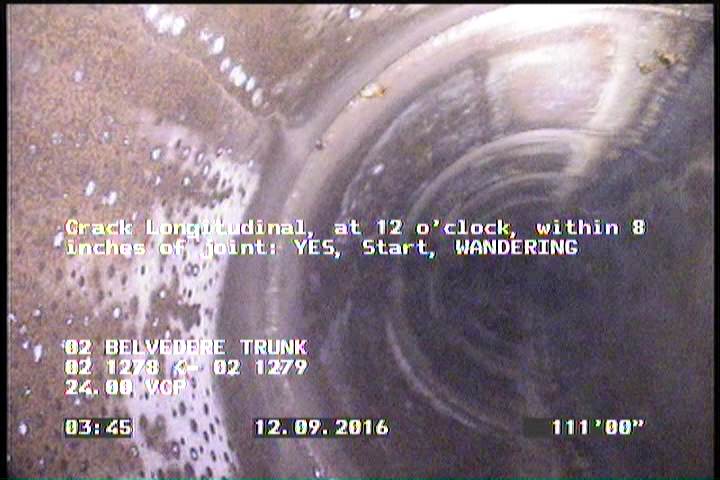

111 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - WANDERING

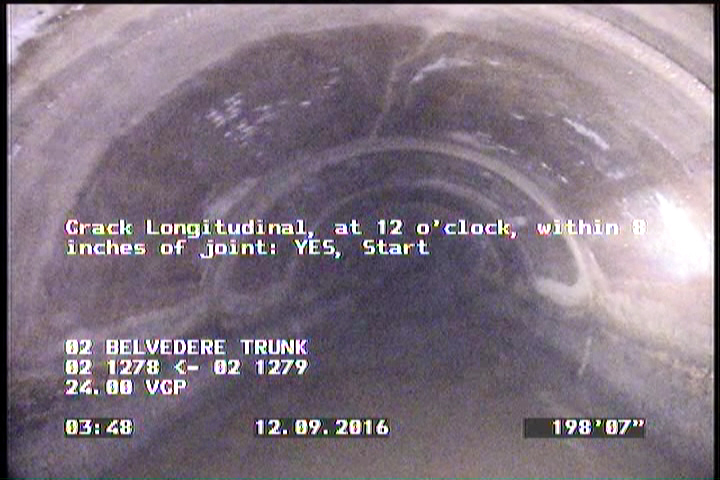

198.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

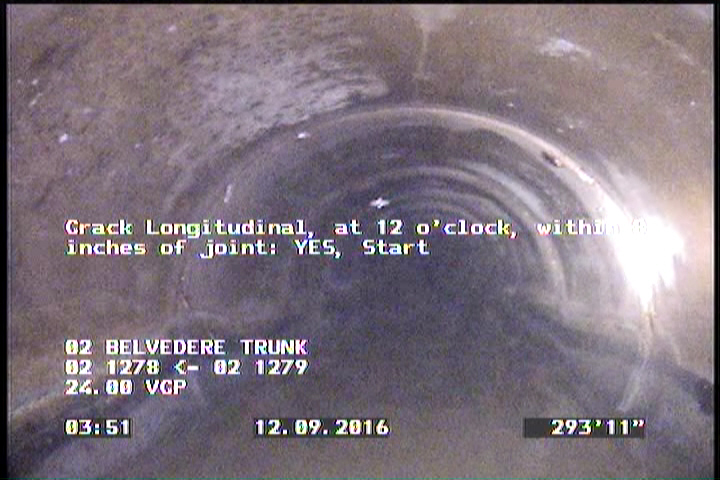

293.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 313.2 | CL | — |
| 111 | CL | WANDERING |
| 198.6 | CL | — |
| 293.9 | CL | — |
| 152.2 | CL | — |
| 0 | AMH | 02 1278 |
| 34.7 | CL | — |
| 0 | MWL | — |
| 3.1 | DAGS | — |
| 249.4 | CL | — |
| 0 | MWM | — |
| 320.6 | AMH | 02 1279 |
| 317.1 | DAGS | — |
| 7.1 | CL | WANDERING 20% |
Properties (5)
- additional_info
- SC317680
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-12-09T03:39:00-08:00
- sewer_category
- Gravity
