Wastewater/Activity/PacpInspection/1.0Nov 8, 2016, 11:59 AM
22 1373_22 1372 _11082016_040015.mp4
- Date
- 11/08/2016
- W/O
- 6022335
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00830
- PipeID
- P16679
- Time
- 3:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4007
- Sewer Name
- 22 WALNUT CREEK TRUNK, SECTS 1&2
- City
- WEST COVINA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_602235_TV22111_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 1373
- Downstream MH
- 22 1372
- Dir. of Survey
- Downstream
- Length Surveyed
- 107.4 ft.
- Total Length
- 107.4 ft.
- Structural Index
- 4
- Structural Quick
- 4200
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 412C
- O&M Rating
- 46
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 54
Observation photos (3)

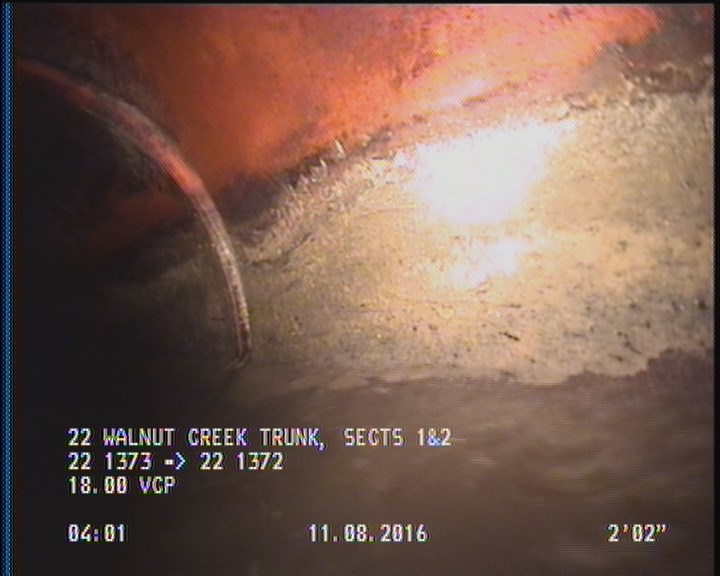

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

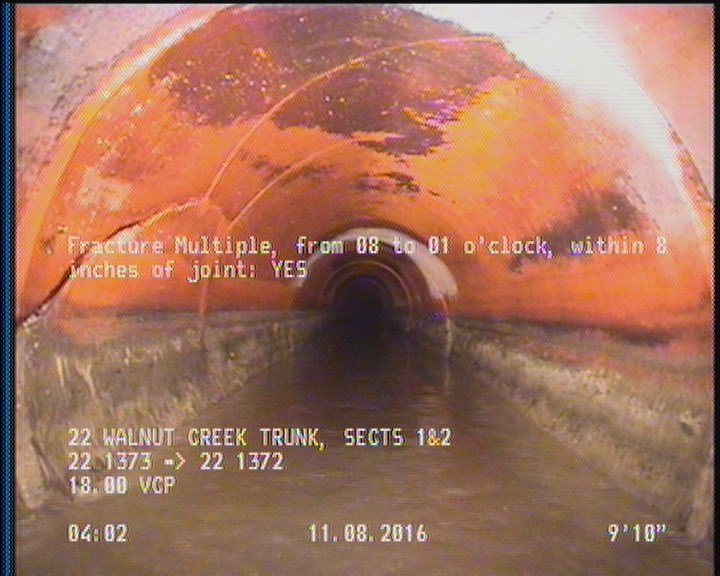

9.8 ft. - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

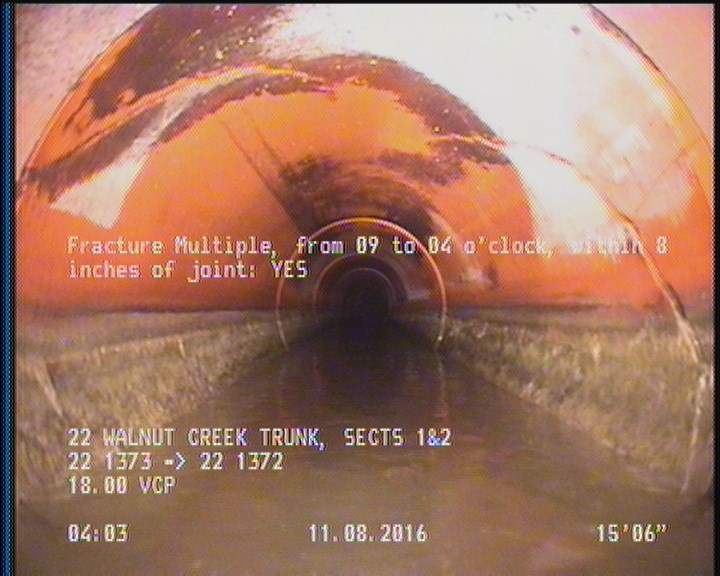

15.5 ft. - Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 15.5 | FM | — |
| 9.8 | FM | — |
| 107.4 | AMH | 22 1372 |
| 0 | MWM | — |
| 0 | MWL | — |
| 106.7 | DAGS | — |
| 0 | AMH | 22 1373 |
Properties (5)
- additional_info
- SC306347
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-08T03:59:52-08:00
- sewer_category
- Gravity
