Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 17, 2016, 08:03 AM

  • 29 0218_29 0215 _11172016_000355.mp4

Date
11/17/2016
W/O
596943
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01116
PipeID
P24120
Time
12:03 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4017
Sewer Name
29 SPRING STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_596943_TV29029_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0215
Downstream MH
29 0218
Dir. of Survey
Upstream
Length Surveyed
374.2 ft.
Total Length
374.2 ft.
Structural Index
1
Structural Quick
1100
Structural Rating
1
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
2
Overall Quick
—
Overall Rating
149
Pipe schematic from manhole 29 0215 to 29 0218
MH: 29 0215MH: 29 0218upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 02182 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish15.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"31.2 ft. JSM - Joint Separated Medium31.9 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"113.7 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"236 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"317.5 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"319.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"320.9 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"372.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start374.2 ft. MWM - Water Mark, 10 %of cross sectional area374.2 ft. MWL - Water Level, 5 %of cross sectional area374.2 ft. AMH - Downstream Manhole, Survey Begins - 29 0215

Observation photos (2)

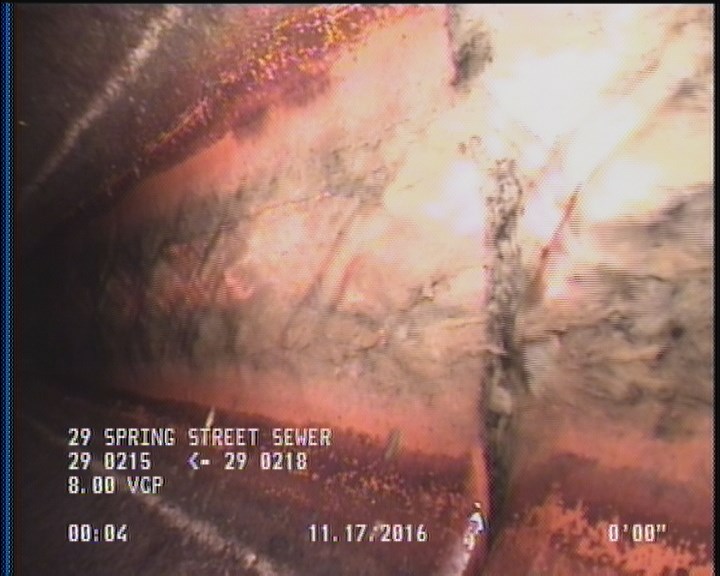

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

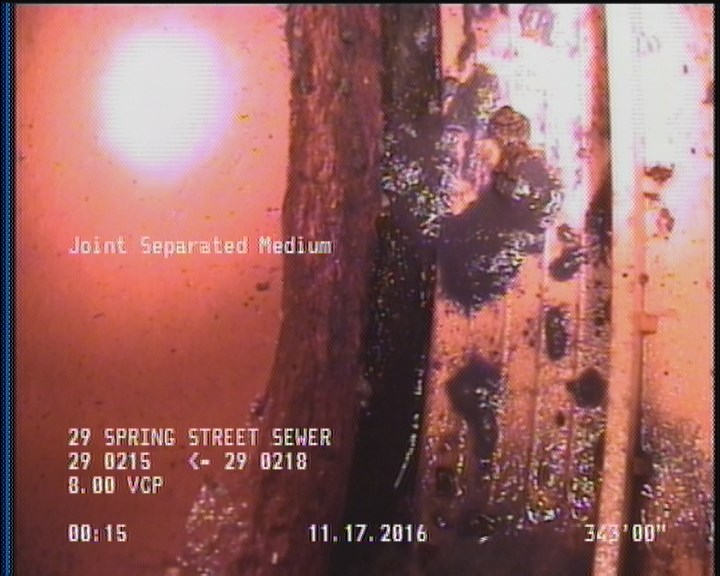

  • Joint Separated Medium

    343 ft. - Joint Separated Medium

All inspections of P24120Work order 596943

Observations (14)

DistanceCodeObservation
374.2AMH29 0218
359TFA—
2DAGS—
0MWM—
260.5TBA—
343JSM—
372.2DAGS—
55.1TFA—
56.7TFA—
342.3TFA—
0MWL—
138.2TBA—
0AMH29 0215
53.3TFA—

Properties (5)

additional_info
SC306409
custom_field_two
3
customer
LACSD
datetime
2016-11-17T00:03:03-08:00
sewer_category
Gravity
