Wastewater/Activity/PacpInspection/1.0Nov 17, 2016, 08:59 AM
29 0213_C 0678 _11172016_010009.mp4
- Date
- 11/17/2016
- W/O
- 596943
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01116
- PipeID
- P24115
- Time
- 12:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4017
- Sewer Name
- 29 SPRING STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_596943_TV29029_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0213
- Downstream MH
- C 0678
- Dir. of Survey
- Downstream
- Length Surveyed
- 334.2 ft.
- Total Length
- 334.2 ft.
- Structural Index
- 4
- Structural Quick
- 4300
- Structural Rating
- 12
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 144
Observation photos (3)

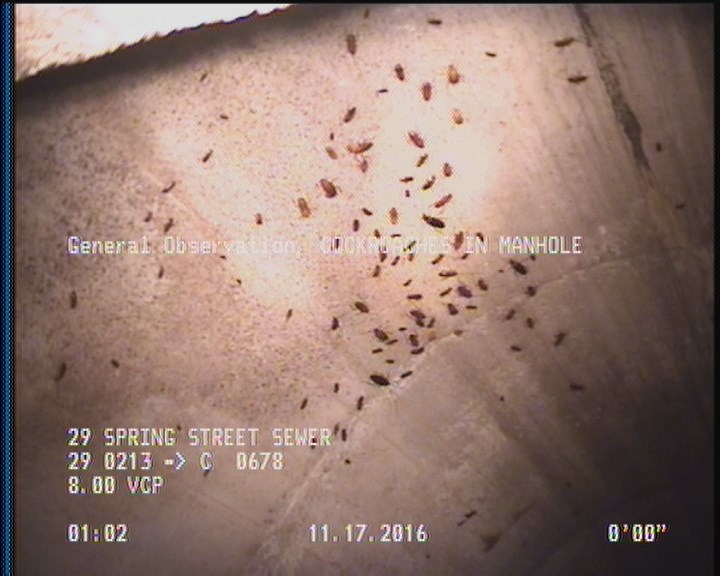

0 ft. - General Observation - COCKROACHES IN MANHOLE

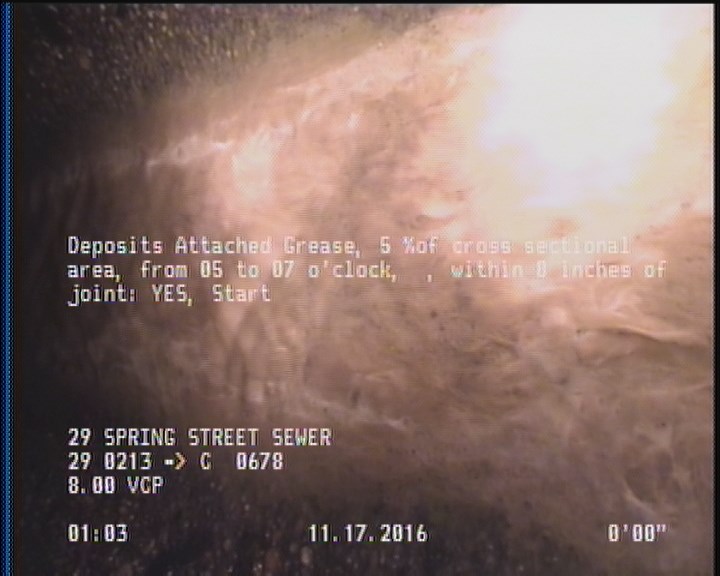

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

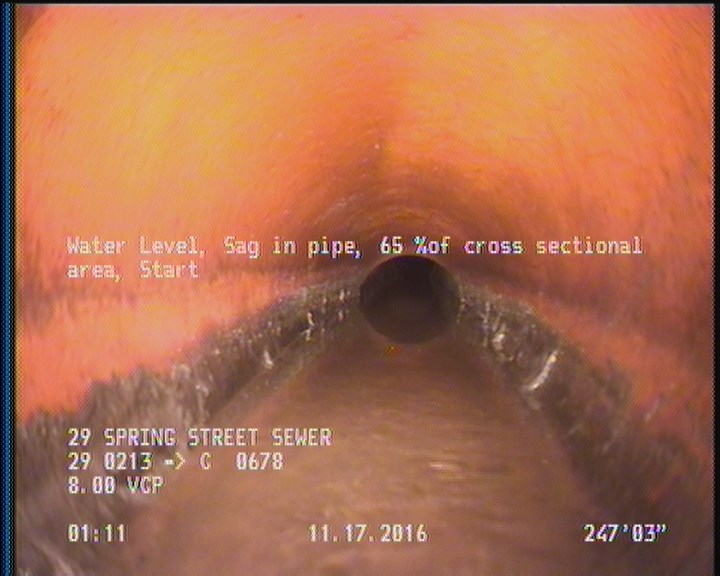

247.2 ft. - Water Level, Sag in pipe, 65 %of cross sectional area, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 247.2 | MWLS | — |
| 334.2 | DAGS | — |
| 0 | MWL | — |
| 241.5 | TBA | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 311.9 | TFC | — |
| 260.9 | MWLS | — |
| 0 | AMH | 29 0213 |
| 135.3 | TF | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 334.2 | AOC | C 0678 |
Properties (5)
- additional_info
- SC306409
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-17T00:59:43-08:00
- sewer_category
- Gravity
