Wastewater/Activity/PacpInspection/1.0Oct 17, 2016, 10:19 AM
05 0411 _05 0410_17102016_030044.mp4
- Date
- 10/17/2016
- W/O
- 592209
- Weather
- Light Rain
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00465
- PipeID
- P05623
- Time
- 3:19 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3605
- Sewer Name
- 05 IRWIN AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_592209_TV05051_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 05 0411
- Downstream MH
- 05 0410
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

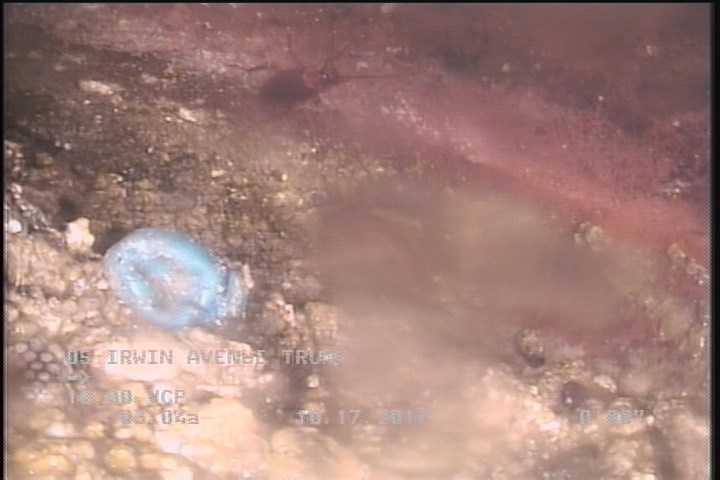

2.1 ft. - Deposits Settled Fine, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO

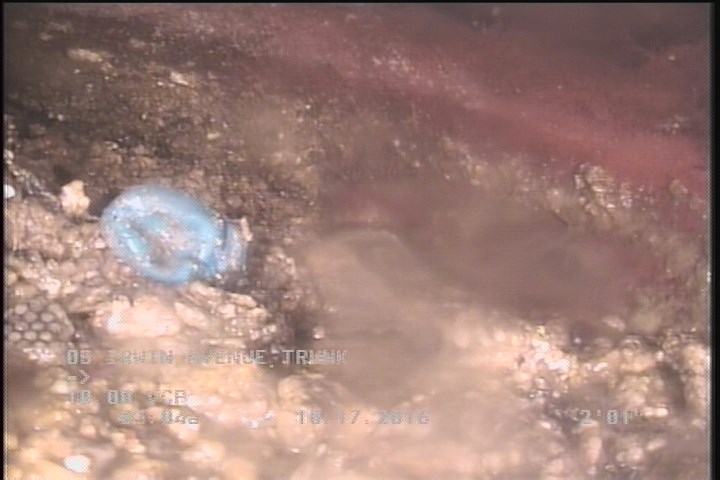

2.1 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | DSF | — |
| 2.1 | MSA | DOWN LEG OF THE U/S SIPHON |
| 0 | AMH | 05 0411 |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 0 | MGO | LATERAL AT MH 9 OCLOCK |
Properties (5)
- additional_info
- SC306200
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-17T03:19:34-07:00
- sewer_category
- Gravity
