Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 17, 2016, 09:41 AM

  • 05 0409_05 0408A_17102016_024206.mp4

Date
10/17/2016
W/O
592209
Weather
Light Rain
Operator/Surveyor
B.FUGATE
Sewer ID
Z00465
PipeID
P05621
Time
2:41 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3605
Sewer Name
05 IRWIN AVENUE TRUNK
City
INGLEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
09
Purpose
Routine Assessment
Project
WO_592209_TV05051_SEP2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 0409
Downstream MH
05 0408A
Dir. of Survey
Downstream
Length Surveyed
134.9 ft.
Total Length
134.9 ft.
Structural Index
3
Structural Quick
3421
Structural Rating
14
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 05 0409 to 05 0408A
MH: 05 0409MH: 05 0408Adownstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 04090 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK20.2 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES71 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES94.3 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN100.8 ft. MGO - General Observation - UNMAPPED MH110.7 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES116.8 ft. CM - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES130.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES134.9 ft. AMH - Downstream Manhole, Survey Ends - 05 0408A

Observation photos (6)

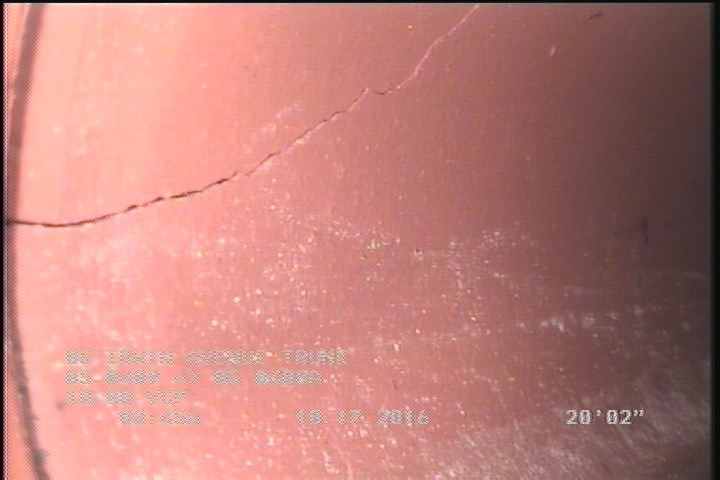

  • Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

    20.2 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

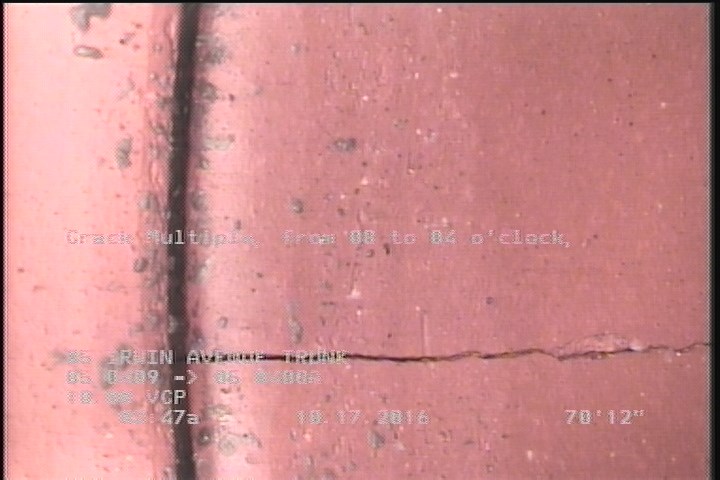

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    71 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

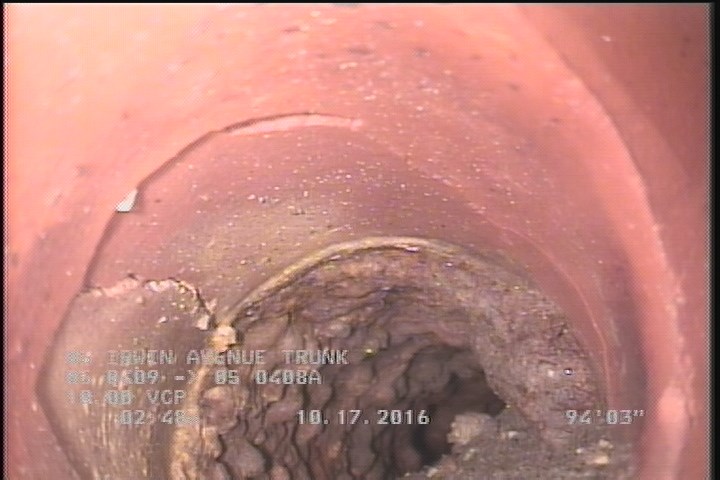

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN

    94.3 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN

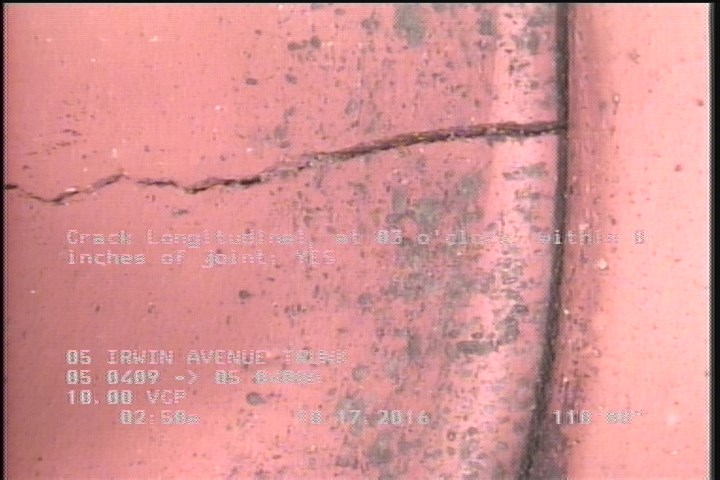

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    110.7 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

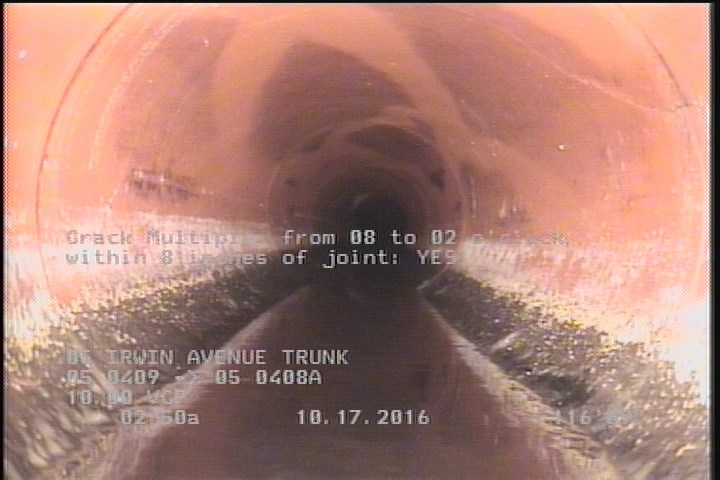

  • Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

    116.8 ft. - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

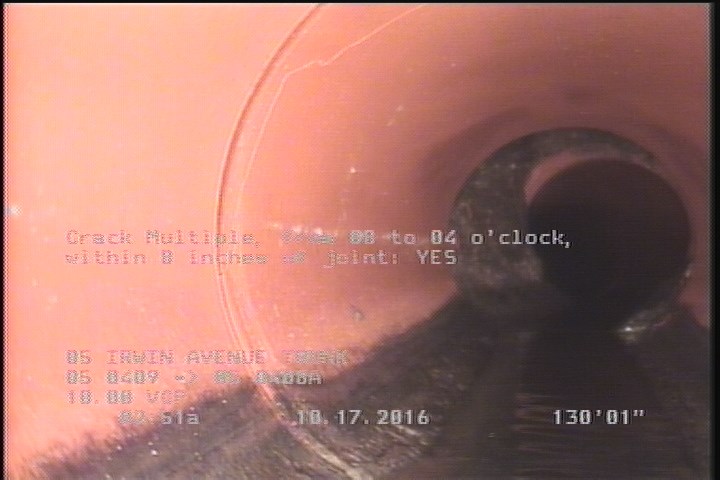

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    130.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P05621Work order 592209

Observations (12)

DistanceCodeObservation
100.8MGOUNMAPPED MH
116.8CM—
20.2CM—
134.9AMH05 0408A
0MWM—
0MWL—
71CM—
0AMH05 0409
110.7CL—
0MGOLATERAL AT MH 9 OCLOCK
94.3TFDBROKEN
130.1CM—

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2016-10-17T02:41:50-07:00
sewer_category
Gravity
