Wastewater/Activity/PacpInspection/1.0Oct 13, 2016, 08:16 AM
02 2268_02 2267 _13102016_013122.mp4
- Date
- 10/13/2016
- W/O
- 592208
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00257
- PipeID
- P04520
- Time
- 1:16 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3740
- Sewer Name
- 02 DOWNEY-BELLFLOWER RELIEF TRUNK RELOCATION
- City
- DOWNEY, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_592208_TV02104_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 2268
- Downstream MH
- 02 2267
- Dir. of Survey
- Downstream
- Length Surveyed
- 402.5 ft.
- Total Length
- 402.6 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 42
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 46
Observation photos (3)

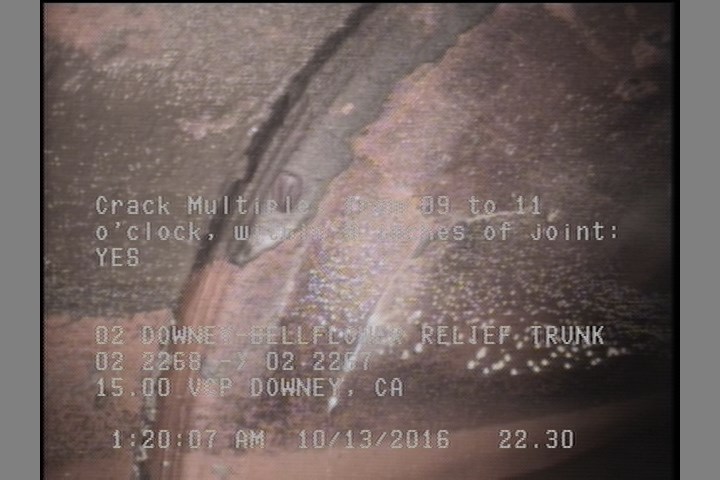

22.3 ft. - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

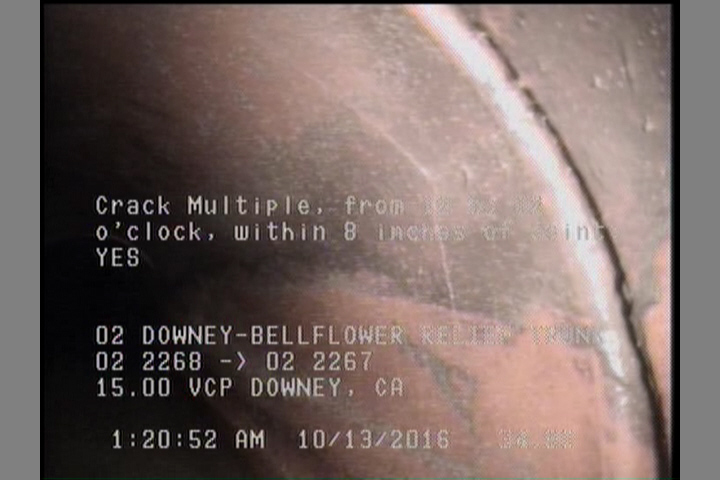

34.9 ft. - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

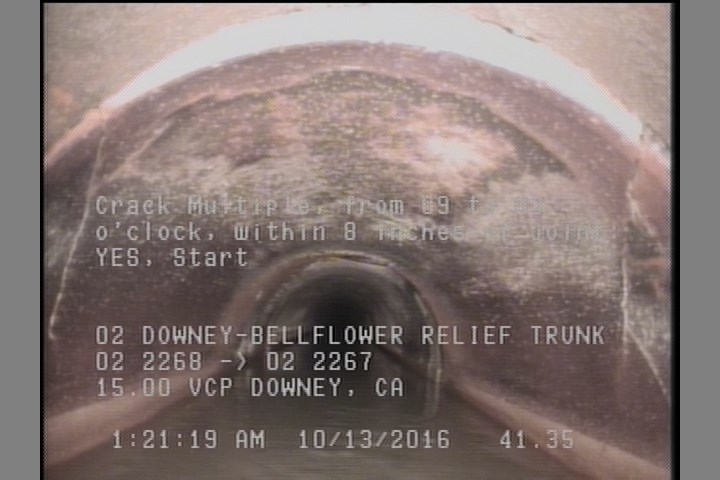

41.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 101.1 | CM | — |
| 402.5 | AMH | 02 2267 |
| 22.3 | CM | — |
| 0 | AMH | 02 2268 |
| -0.1 | MWL | — |
| 45.4 | TFA | — |
| 402.5 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 41.4 | CM | — |
| 34.9 | CM | — |
| -0.1 | MWM | — |
Properties (5)
- additional_info
- SC303727
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-13T01:16:11-07:00
- sewer_category
- Gravity
