Wastewater/Activity/PacpInspection/1.0Oct 19, 2016, 08:19 AM
05 1502_05 1501_19102016_012002.mp4
- Date
- 10/19/2016
- W/O
- 592160
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00497
- PipeID
- P06725
- Time
- 1:19 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3809
- Sewer Name
- 05 NORTH TORRANCE EXTENSION TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_592160_TV05263_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 1502
- Downstream MH
- 05 1501
- Dir. of Survey
- Downstream
- Length Surveyed
- 340.4 ft.
- Total Length
- 340.4 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

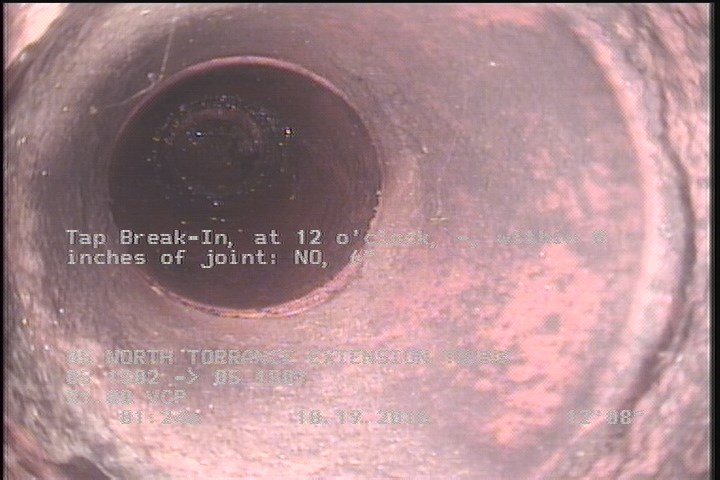

12.6 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

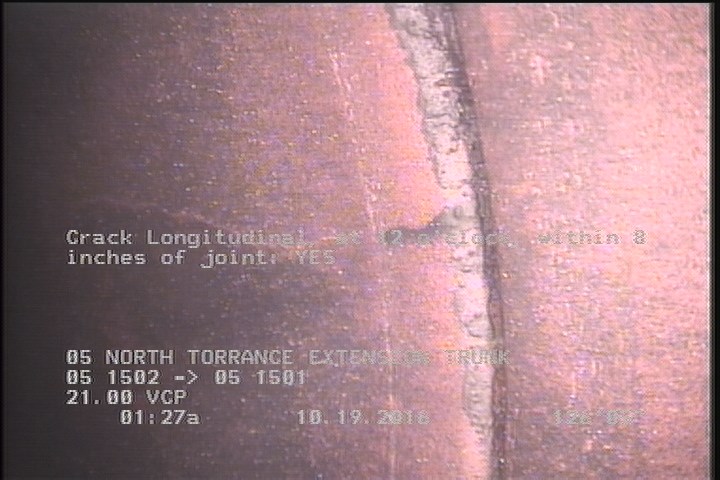

126.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

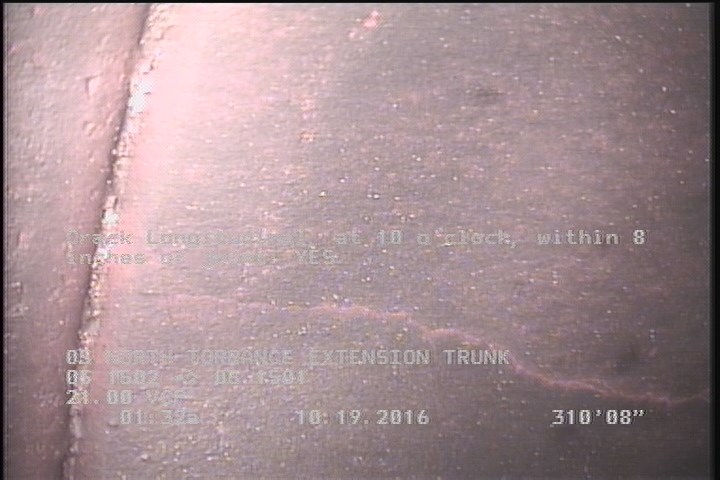

310.7 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

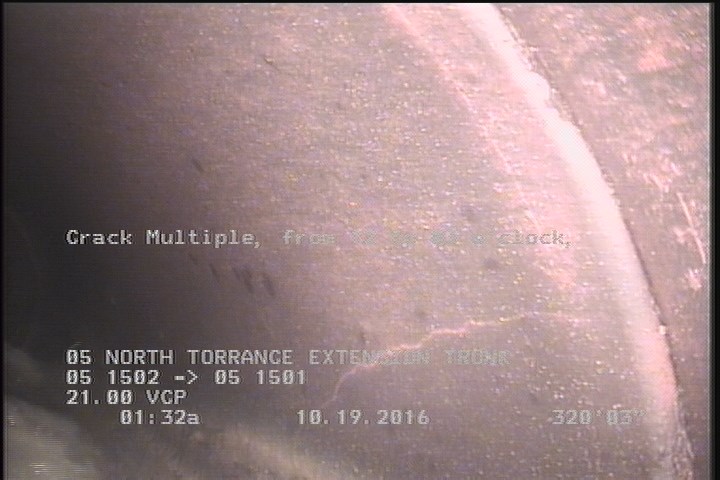

320.2 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 136.8 | TFA | — |
| 29.2 | TF | — |
| 83.8 | TF | — |
| 12.6 | TB | — |
| 310.7 | CL | — |
| 229.6 | TFA | — |
| 0 | AMH | 05 1502 |
| 0 | MWL | — |
| 186.1 | TF | — |
| 340.4 | AMH | 05 1502 |
| 325.2 | TFA | — |
| 320.2 | CM | — |
| 0 | MWM | — |
| 126.4 | CL | — |
| 288.4 | TF | — |
Properties (5)
- additional_info
- SC304554
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-19T01:19:33-07:00
- sewer_category
- Gravity
