Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 19, 2016, 08:42 AM

  • 05 1500_05 1499_19102016_014339.mp4

Date
10/19/2016
W/O
592160
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00497
PipeID
P06723
Time
1:42 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3809
Sewer Name
05 NORTH TORRANCE EXTENSION TRUNK
City
TORRANCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
26
Purpose
Routine Assessment
Project
WO_592160_TV05263_SEP2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
05 1500
Downstream MH
05 1499
Dir. of Survey
Downstream
Length Surveyed
357 ft.
Total Length
357 ft.
Structural Index
2
Structural Quick
2500
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 05 1500 to 05 1499
MH: 05 1500MH: 05 1499downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 15000 ft. MWL - Water Level, 15 %of cross sectional area28.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"50.1 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES61.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"89.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"122.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"140.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES155.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"168.2 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES194.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"222.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"245.1 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES261.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"264.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"279.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"303.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"318.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"326.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"331.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"332.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES334.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"338.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"357 ft. MGO - General Observation - FLOW METER357 ft. AMH - Downstream Manhole, Survey Ends - 05 1499

Observation photos (6)

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

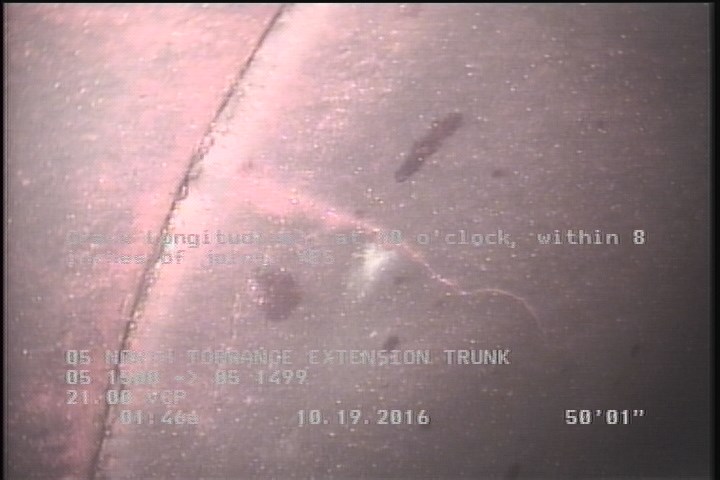

    50.1 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

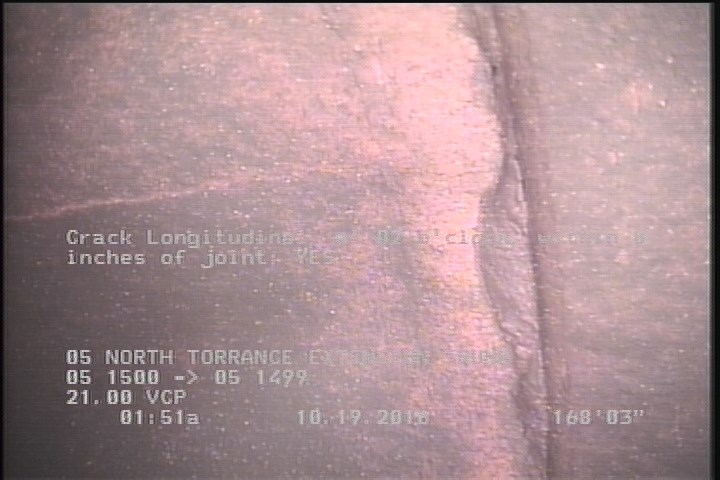

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

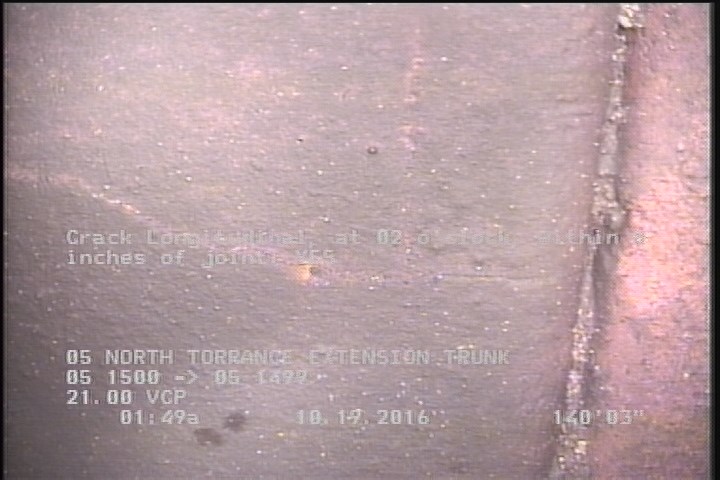

    140.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    168.2 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

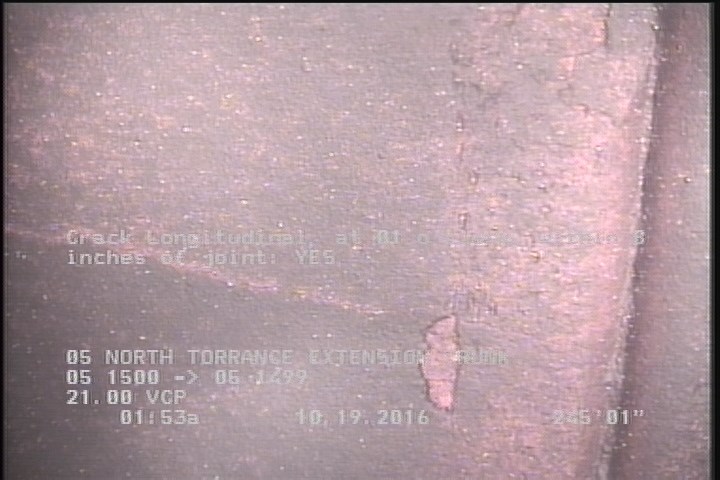

    245.1 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

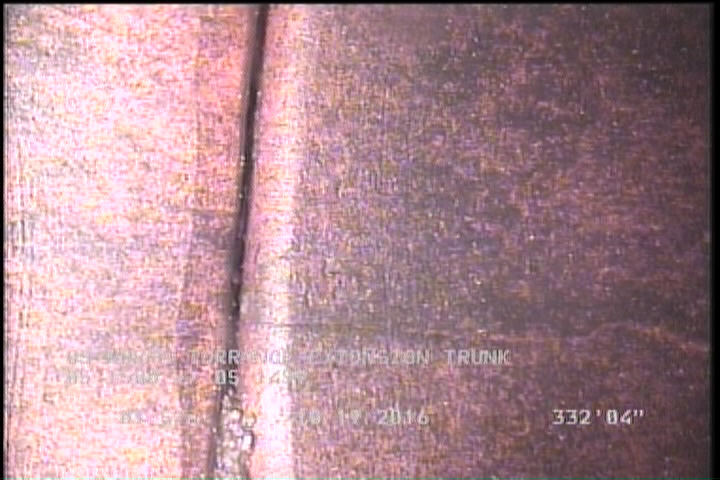

    332.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

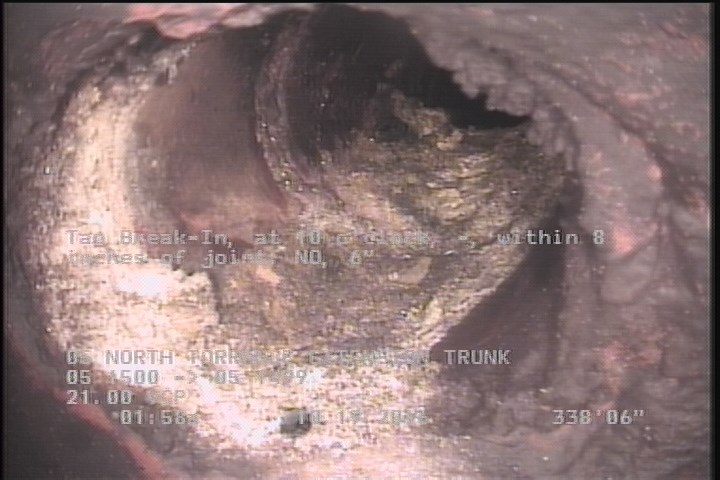

    338.5 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P06723Work order 592160

Observations (26)

DistanceCodeObservation
155.6TFA—
122.6TF—
28.1TF—
0MWM—
303.1TF—
61.2TF—
279.3TF—
331.6TF—
0AMH05 1500
0MWL—
334.6TF—
318.2TF—
50.1CL—
222.7TF—
332.4CL—
89.7TF—
261.7TF—
326.3TB—
194.3TFA—
245.1CL—
168.2CL—
264.6TF—
357MGOFLOW METER
357AMH05 1499
338.5TB—
140.3CL—

Properties (5)

additional_info
SC304554
custom_field_two
4
customer
LACSD
datetime
2016-10-19T01:42:56-07:00
sewer_category
Gravity
