Wastewater/Activity/PacpInspection/1.0Oct 21, 2016, 09:46 AM
02 1937_02 1936 _20161021_015119.mp4
- Date
- 10/21/2016
- W/O
- 592156
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00241
- PipeID
- P04279
- Time
- 2:46 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3746
- Sewer Name
- 02 CITY TERRACE TRUNK
- City
- LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_592156_TV02040_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1937
- Downstream MH
- 02 1936
- Dir. of Survey
- Downstream
- Length Surveyed
- 125.7 ft.
- Total Length
- 125.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 312D
- O&M Rating
- 52
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 52
Observation photos (4)

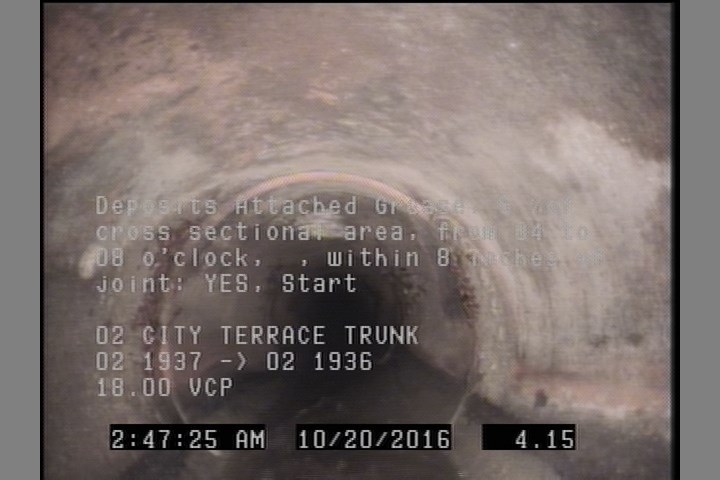

4.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

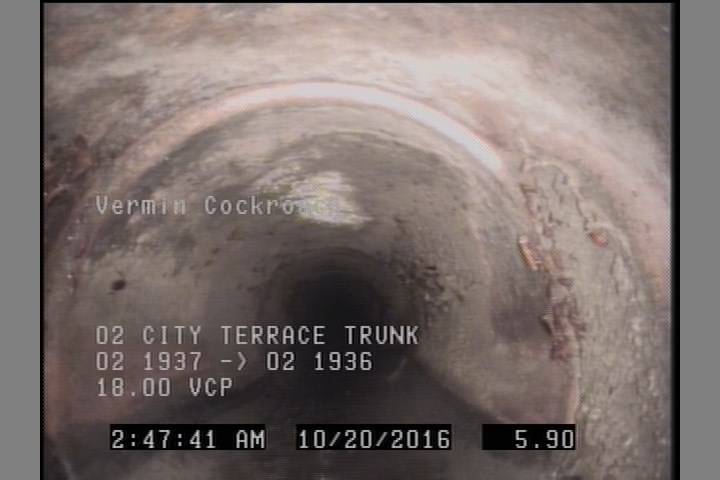

5.9 ft. - Vermin Cockroach

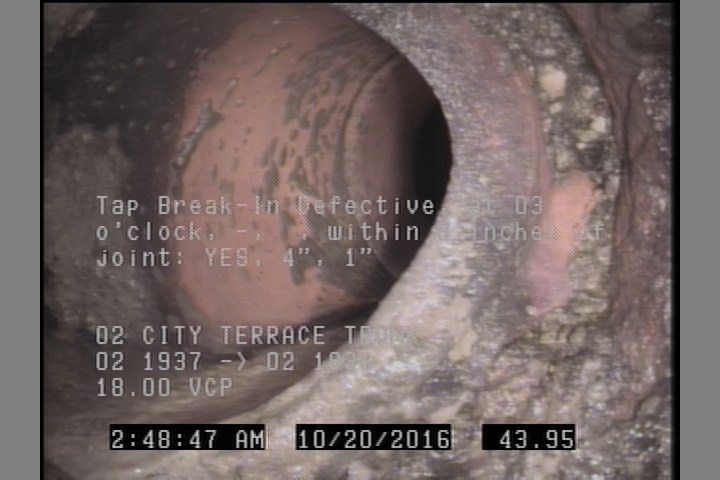

44 ft. - Tap Break-In Defective, at 03 o'clock, -, , within 8 inches of joint: YES, 4", 1"

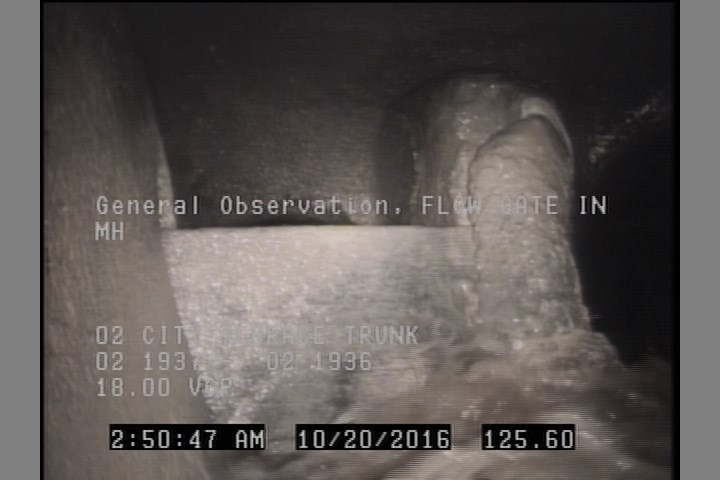

125.6 ft. - General Observation - FLOW GATE IN MH
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 4.2 | DAGS | — |
| 5.9 | VC | — |
| 0 | MWM | — |
| 125.6 | DAGS | — |
| 44 | TBD | — |
| 125.7 | AMH | 02 1936 |
| 0 | AMH | 02 1937 |
| 125.6 | MGO | FLOW GATE IN MH |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC303735
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-21T02:46:00-07:00
- sewer_category
- Gravity
