Wastewater/Activity/PacpInspection/1.0Oct 21, 2016, 10:25 AM
02 2053_02 2052_20161021_023617.mp4
- Date
- 10/21/2016
- W/O
- 592156
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00241
- PipeID
- P04298
- Time
- 3:25 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3746
- Sewer Name
- 02 CITY TERRACE TRUNK
- City
- LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 07A
- Purpose
- Routine Assessment
- Project
- WO_592156_TV02040_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 2053
- Downstream MH
- 02 2052
- Dir. of Survey
- Downstream
- Length Surveyed
- 365.6 ft.
- Total Length
- 365.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2M11
- O&M Rating
- 143
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 143
Observation photos (2)

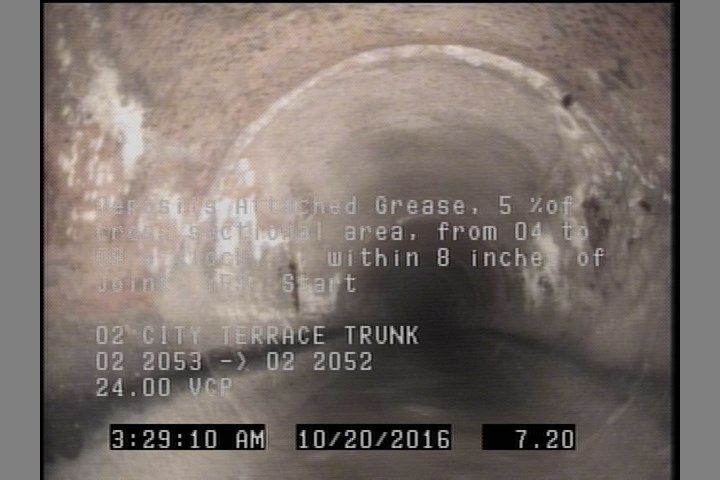

7.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

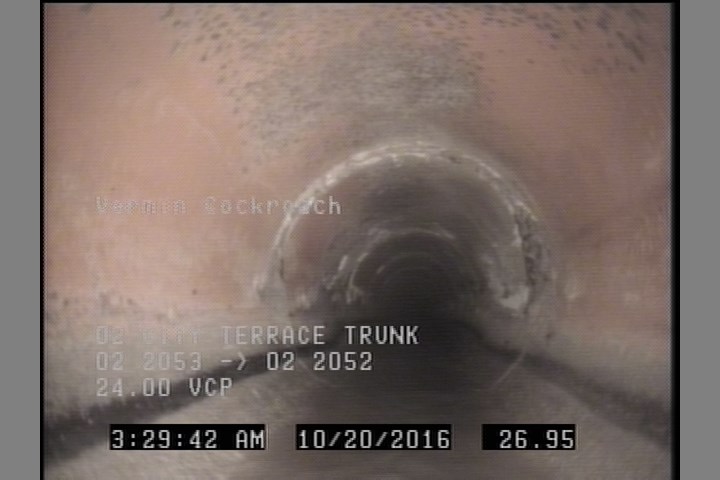

27 ft. - Vermin Cockroach
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 2053 |
| 7.2 | DAGS | — |
| 27 | VC | — |
| 0 | MWL | — |
| 362.6 | DAGS | — |
| 365.6 | AMH | 02 2052 |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC303735
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-21T03:25:20-07:00
- sewer_category
- Gravity
- year_laid
- 27724
